АЛП-5 (3909)-267

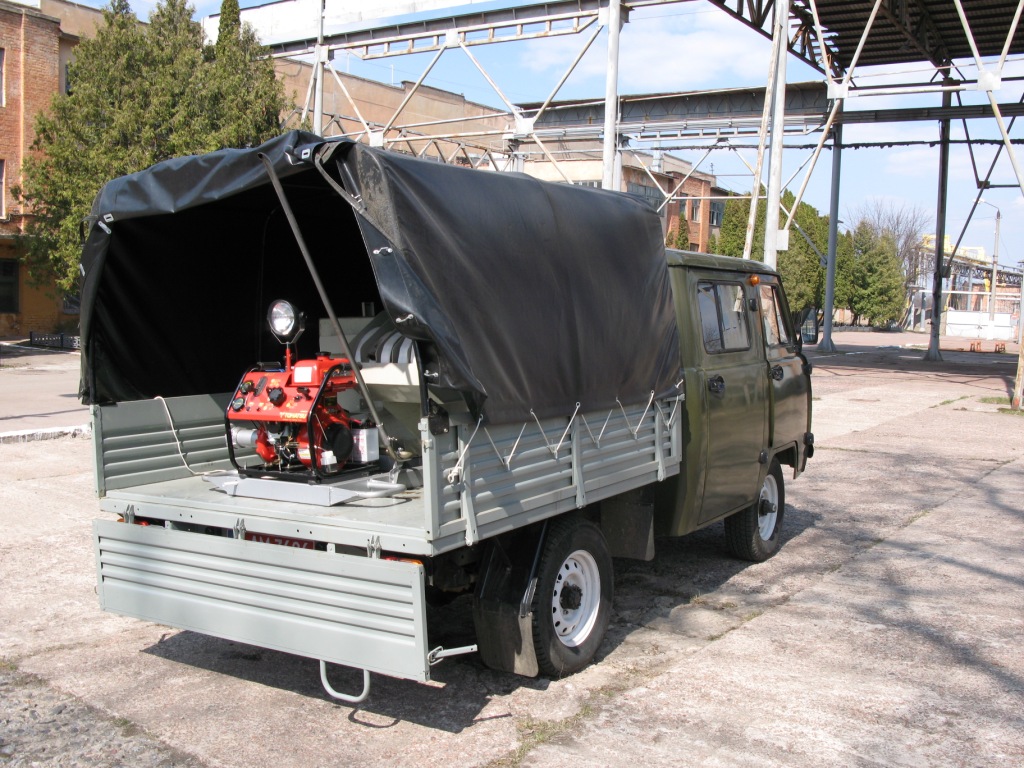

Forest-patrol vehicle АЛП-5 (3909)-267 is intended for patroling forests and extinguishing forest fires, serves for delivering fire-fighting crew and fire-extinguishing facilities to the site of fire, water supply from the tank or open basin.

Technical characteristics

Additional information

Base chassis	УАЗ-390945 / 4х4
Engine	petrol
Power (max), kW (hp)	82,5 (112,2)
Speed (max), with full load, km / h	120
The number of places for combat crew, people	5
Water supply, m3 (l)	0,7 (700)
Fire engine pump	fire pump of normal pressure
Productivity, l / s, not less	7.0 with head 70m
Maximum geometric suction lift, m	7,5±0,2
Number of hand barrels	2
Length of pressure hoses, m	100
Overall dimensions (length: width: height), mm	4820:2000:2400
