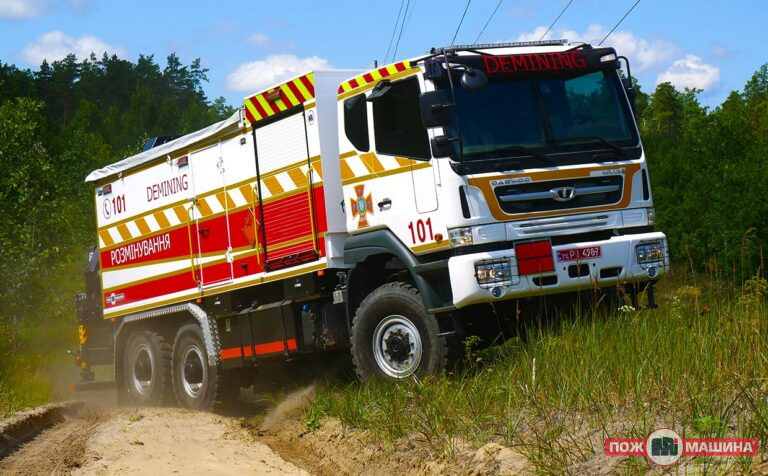

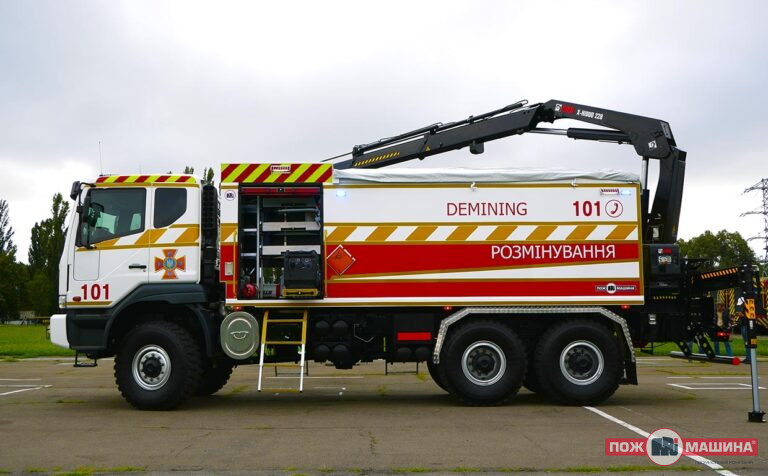

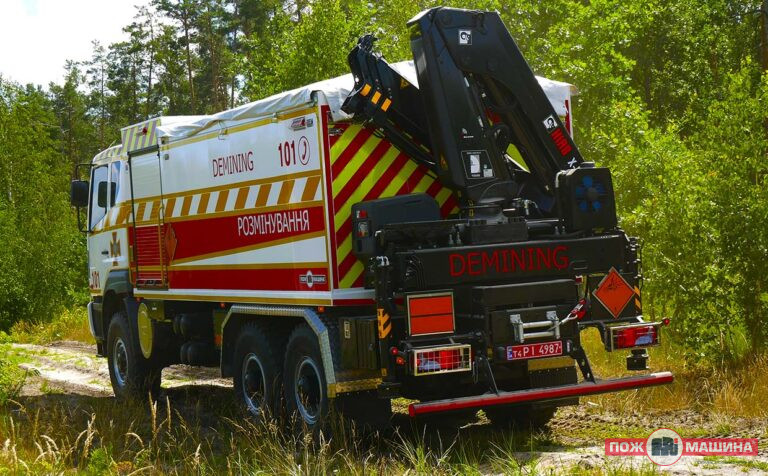

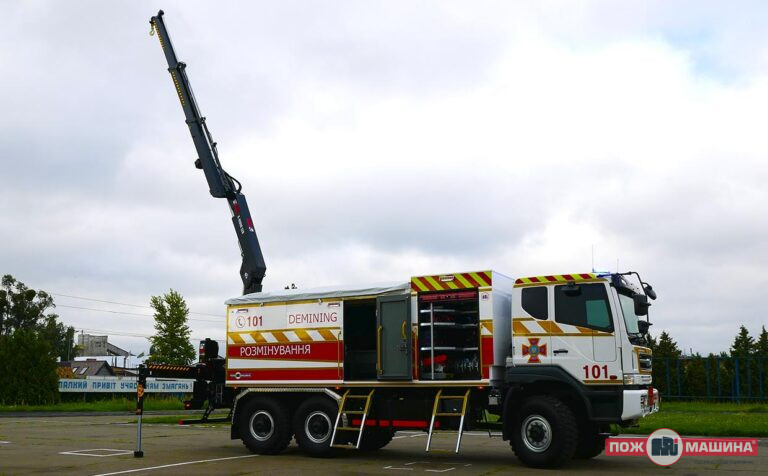

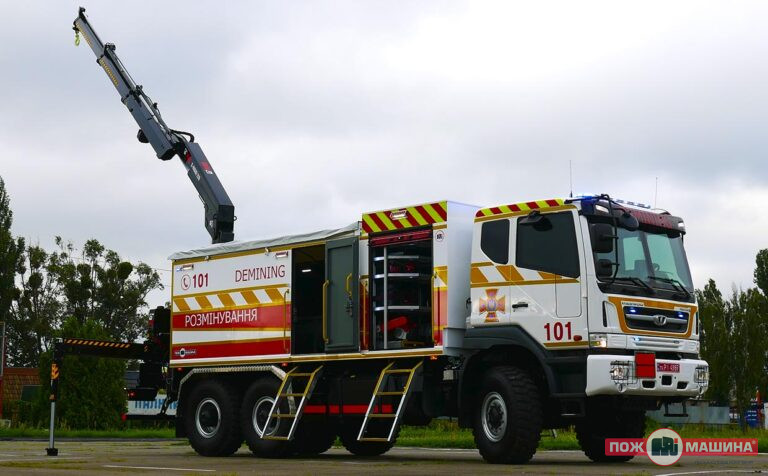

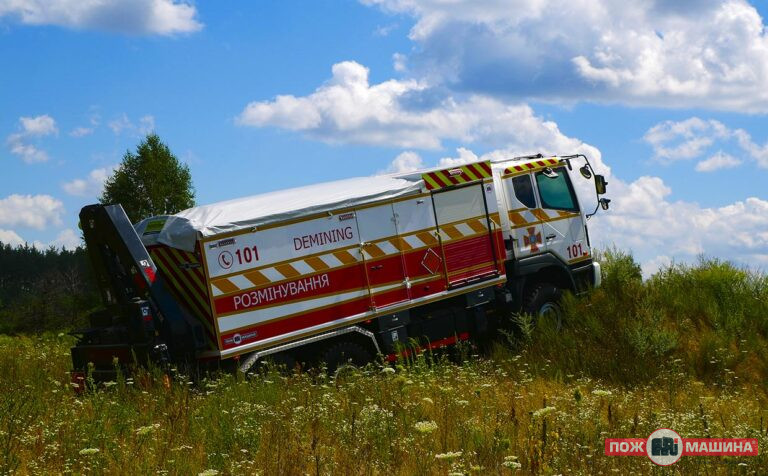

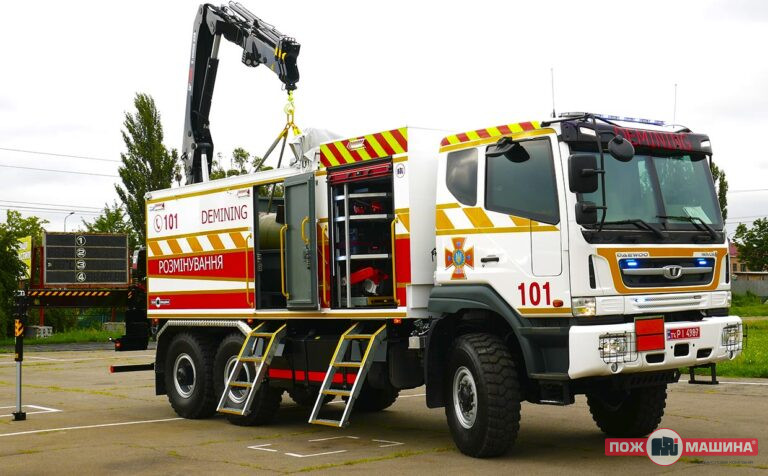

Heavy type pyrotechnic truck PM-V

Description

The heavy pyrotechnic machine is designed for:

prompt delivery by road of all categories of pyrotechnics, special property and equipment to places of detection of explosion-proof device;
organization of radio communication in the VHF (KH) range using a base radio station and portable ones;
lifting of reinforced concrete and steel structures and other loads using pneumatic and hydraulic tools;
deformation, movement and destruction of power elements of structures, cutting of metal rods;
expansion of narrow openings in rubble and structures with the help of hydraulic and pneumatic tools;
fences of dangerous areas and places of detection of explosion-proof device and carrying out work on searching for explosion-proof device;

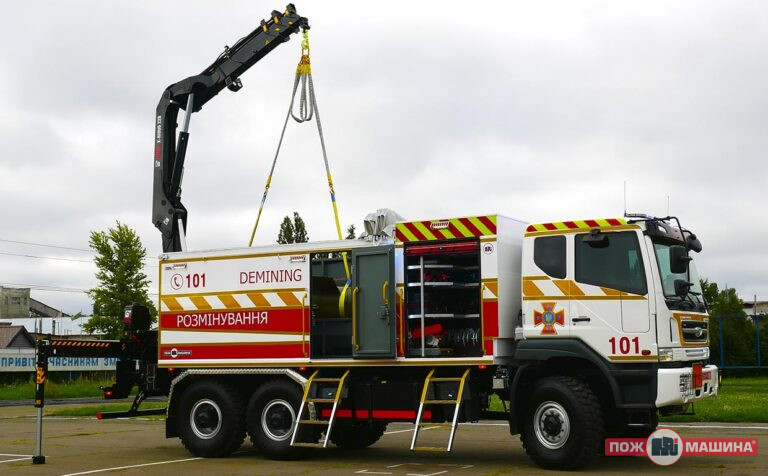

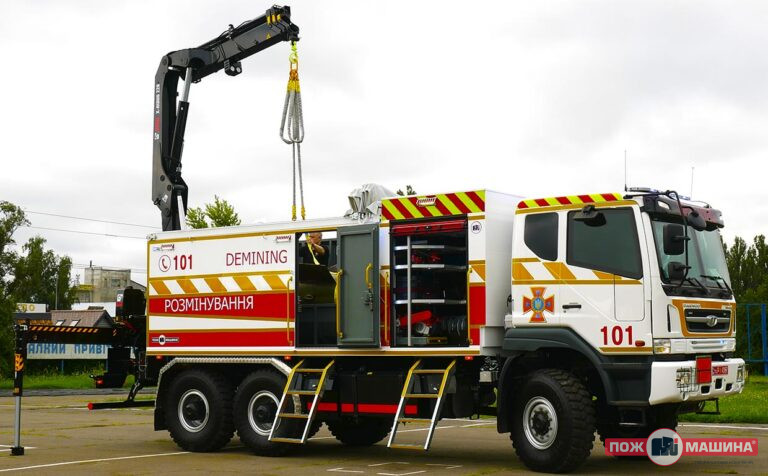

loading and unloading of explosion-proof device using a hydraulic manipulator;
transportation of small and large explosion-proof device.

Dimensions	8,950 × 2,550 × 3,500 mm
Curb weight, kg, not more	19000
Gross vehicle weight, kg	29000
Base chassis	DAEWOO NOVUS CM6C7 6WD
Wheel formula	6х6.1
Maximum engine power, kWt (h.p.)	308 (420)
Cabin quick calculation	Armored, cabin over the engine, with mine protection
Характеристики кузова	Cargo body – armored, Tented, The equipment compartment is not armored

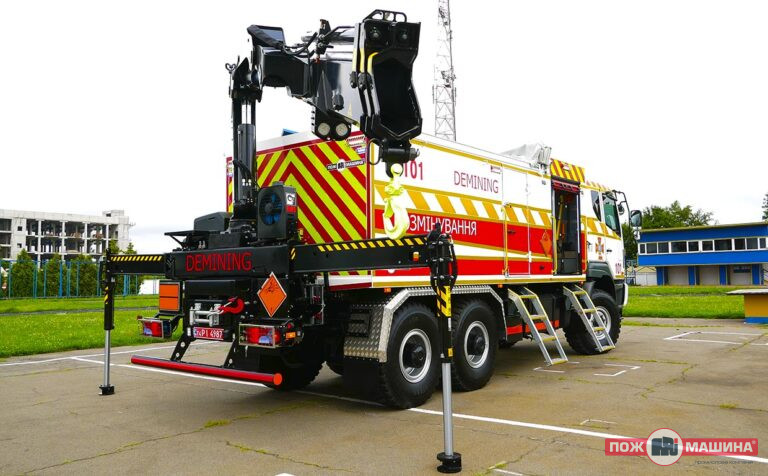

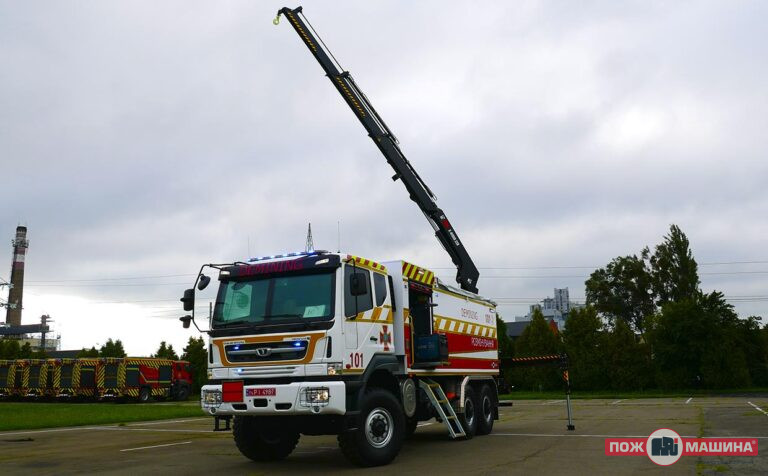

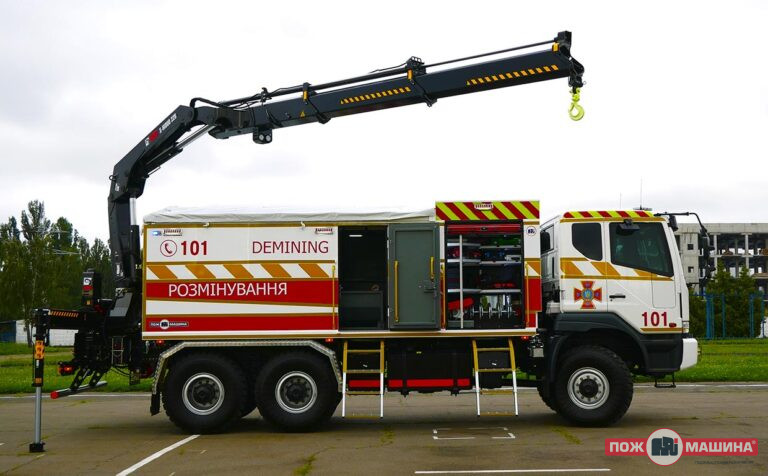

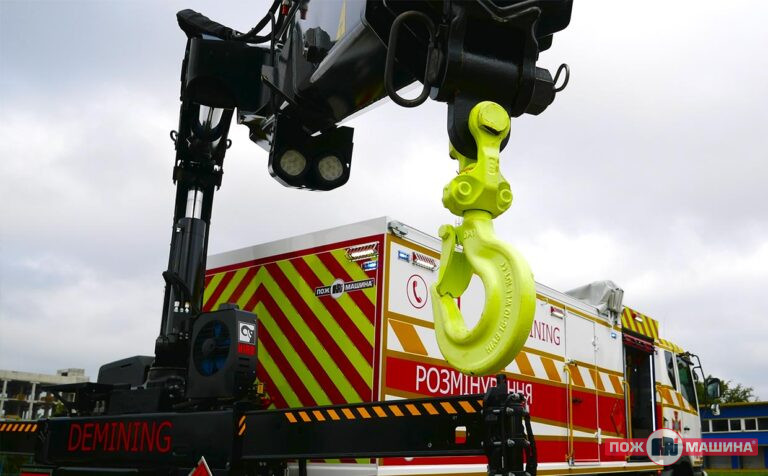

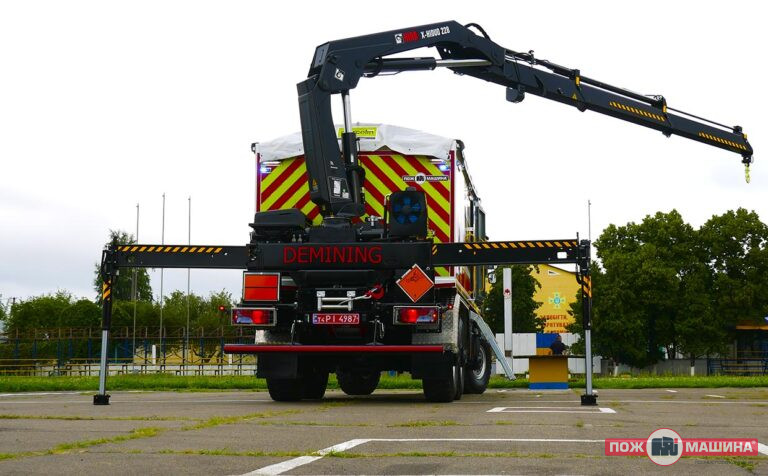

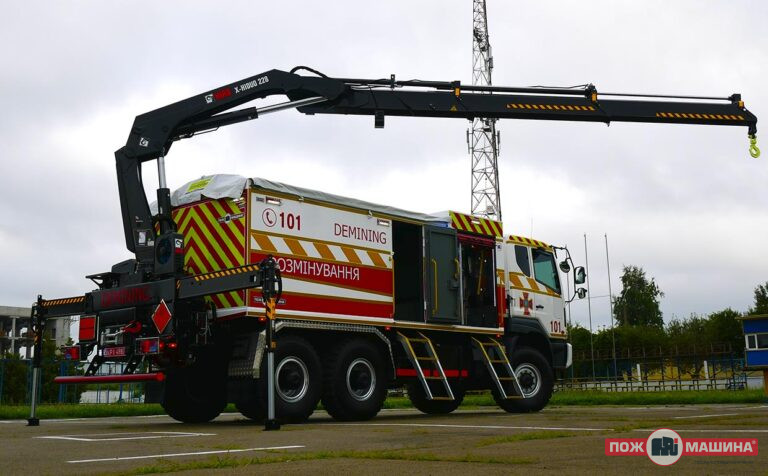

Кран-маніпулятор	Located behind, Remote control with manual duplication, The maximum carrying capacity at the maximum reach of the boom is 2.4 tons, The maximum reach is 8.2 m

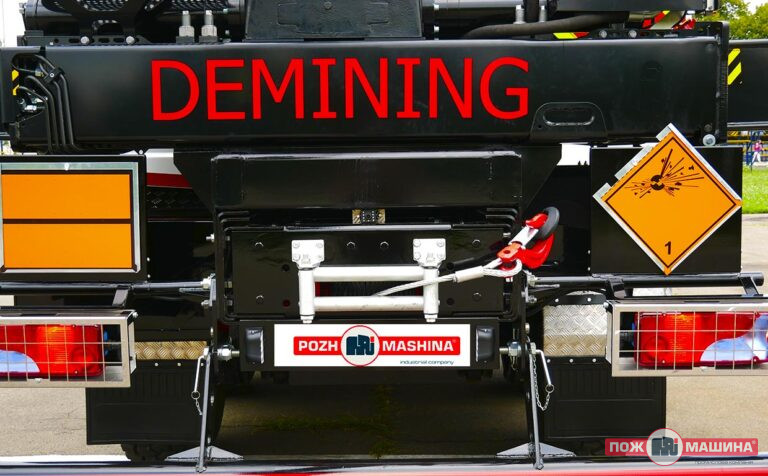

Лебідка	Hydraulic
