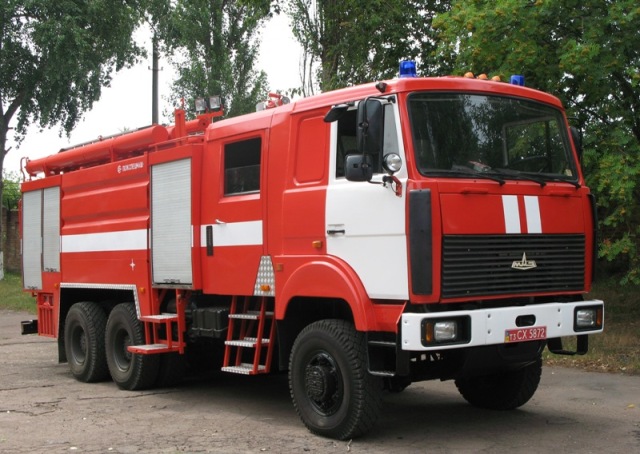

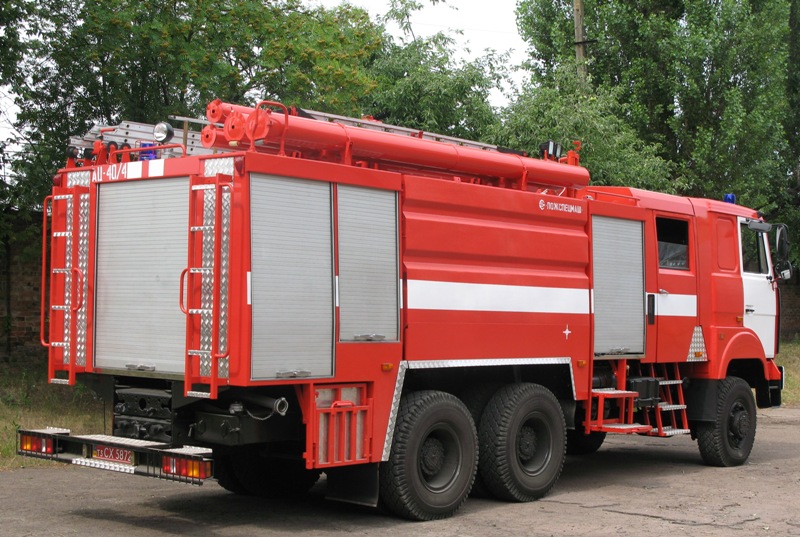

АЦ – 40/4 (631708) – 281
The Fire-Extinguishing Tanker АЦ- 40/4(631708) - 281 is intended for fire guard of town and rural areas, industrial objects and serves for:
- delivering of fire-fighting crew to the place of fire ; delivering of fire-fighting equipment, water and foam agent;
- delivering of water from the tank, from open basin or hydrant by means of hand barrels and stationary monitor;
- delivering of air-mechanical foam by means of foam generator or stationary monitor with foam agent feed from foam tank or other kind of capacity.
Technical characteristics
Additional information
| Base chassis | МАЗ 631708 (6х6) |
|---|---|
| Engine | diesel |
| Power (max), kW (hp) | 294 (400) |
| Speed (max), with full load, km / h | 82 |
| The number of places for combat crew, people | 1+5 |
| Water supply, m3 (l) | 8 (8000) |
| Frother, not less | 0,5 (500) |
| Length of pressure hoses, m | 350 |
| Fire monitors | ЛСД-С20У (stationary) |
| water, m | 50 |
| foam, m | 45 |

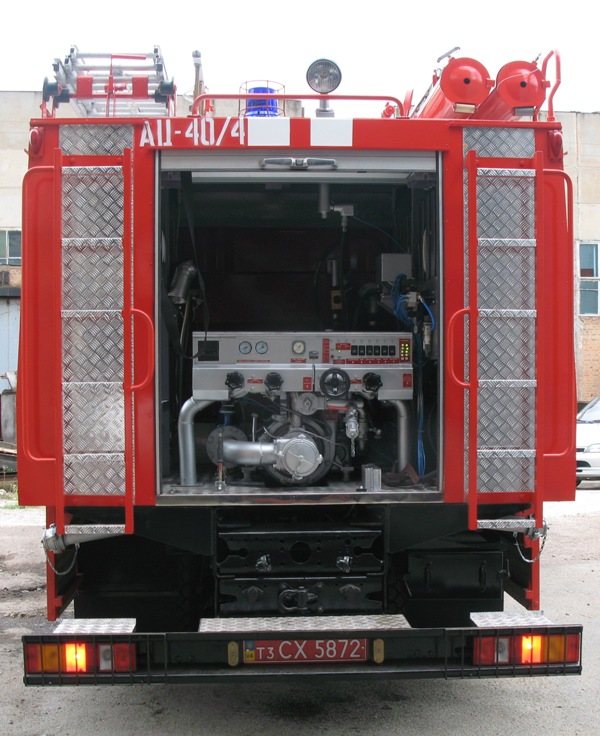

| Pump | НЦПК-40/100-4/400 Р-Р |
| Pump capacity, l/min (l/sec) | 40 (4) |
| Pump head, m | 400 (100) |
| High pressure hose reel | 60 м |
| Type of water filling system | The pump is autonomous, vacuum, with electric drive and automatic shutdown after filling |
| Maximum geometric suction lift, m | 7,5 |

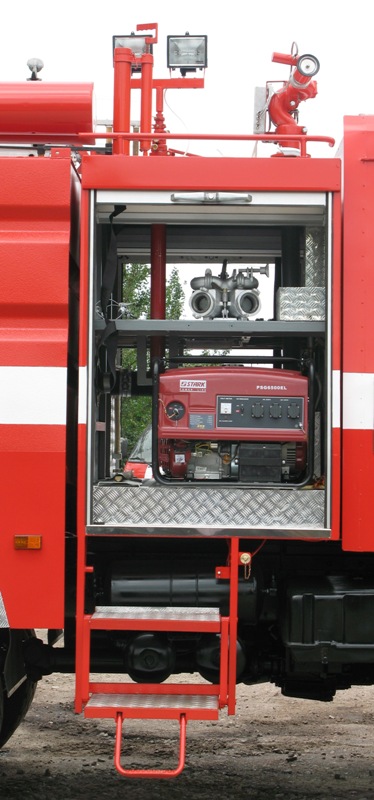

| Generator, kW | 5 |
| Number of hand barrels | 6 |
| Overall dimensions (length: width: height), mm | 9550:2500:3550 |
| Mass of the car with full load, kg | 22000 |
