АЦ-40(4308)-271.01

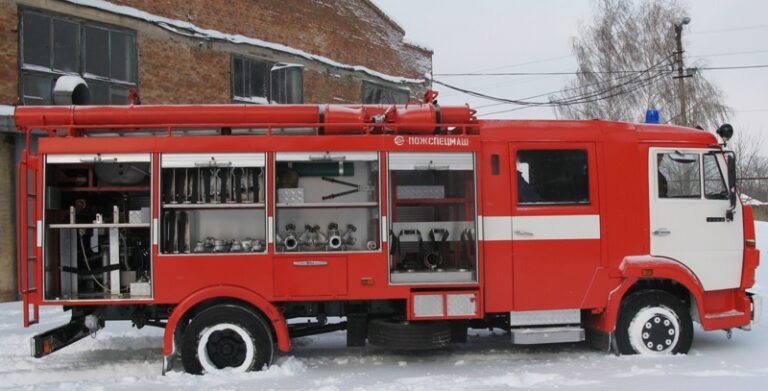

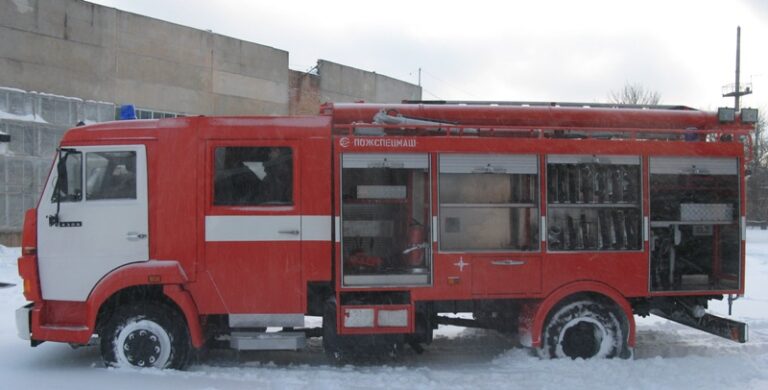

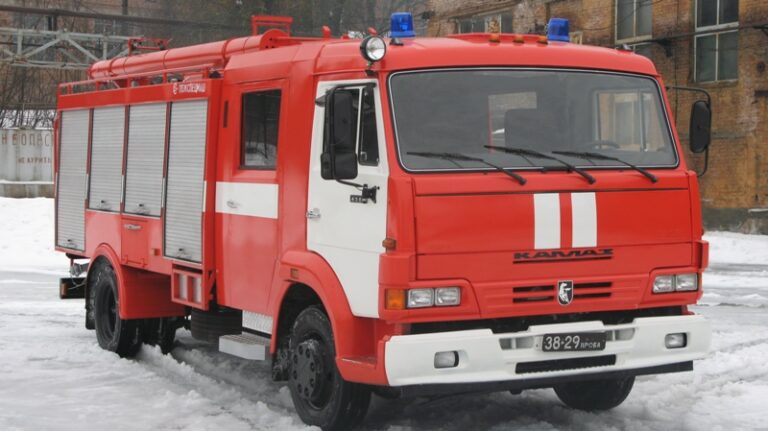

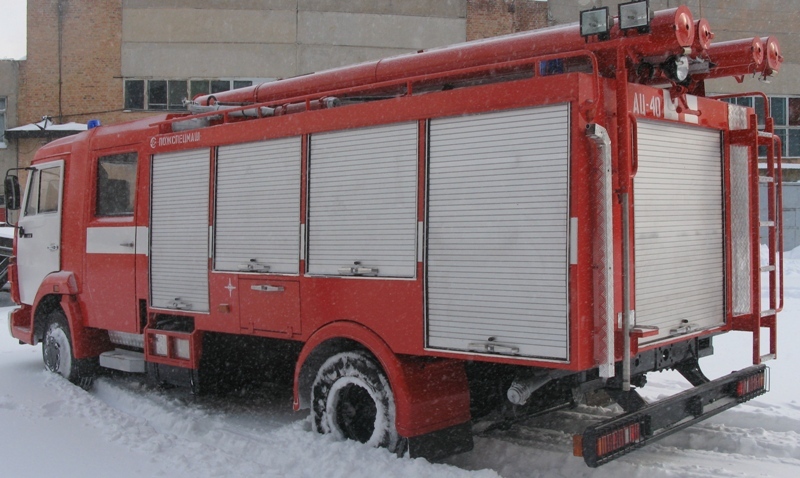

Fire-extinguishing tanker АЦ-40 (4308)-271.01 is intended for delivering the fire-prevention crew and facilities to place of the fire and serves for extinguishing the fire with water and air-mechanical foam. It is used as an independent combat unit at extinguishing the fire, liquidation damage and consequences of natural disasters.
Technical characteristics
Additional information
| Base chassis | КАМАЗ-4308 / 4х2 |
|---|---|
| Engine | diesel |
| Power (max), kW (hp) | 131 (178) |
| Speed (max), with full load, km / h | 100 |
| The number of places for combat crew, people | 1 +6 |
| Water supply, m3 (l) | 2,5 (2500) |
| Frother, not less | 0,17 (170) |
| Type of water filling system | вакуумна з електроприводом і автоматичним відключенням після заповнення |
| Length of pressure hoses, m | 388 |

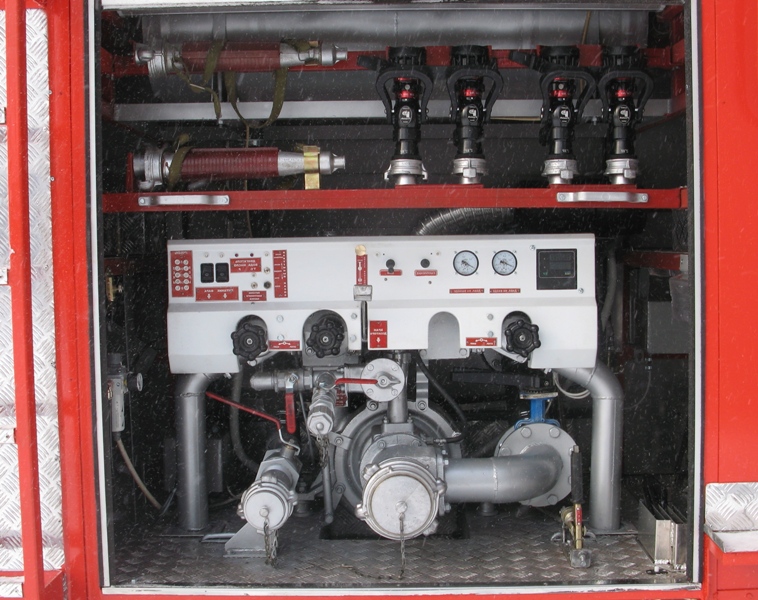

| Pump | centrifugal НЦП-40/100-Р-Р |
| Pump capacity, l/min (l/sec) | 40 |
| Pump head, m | 100 |
| Maximum geometric suction lift, m | 7,5 |
| Number of hand barrels | 4 |
| Overall dimensions (length: width: height), mm | 7700 : 2500 : 2900 |
| Mass of the car with full load, kg | 10900 |
