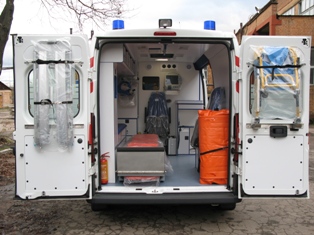

АЕШМД-B-4 (FIAT DUKATO) – 01
The car is intended for transportation, medical inspection, grantings of the qualified emergency medical aid, carrying out of intensive therapy, monitoring for patients at a pre-hospital stage on a place of a call and during their transportation to stationary medical institutions.
Technical characteristics
Additional information
| Base chassis | (Fiat Ducato) - 250 |
|---|---|
| Mass of the car with full load, kg | 3490 |
| Distribution of total mass in axes, kg, not more | True |
| to the front | 1668 |
| on the back | 1822 |
| Vehicle net weight, not more, kg | 2840 |
| Power (max), kW (hp) | 88 (120) |
| Engine capacity, its type cm3 | 2287, diesel |
| Environmental standard | Euro-4 |
| Fuel tank capacity, l, not less | 0,09 (90) |
| Speed (max), with full load, km / h | 150 |
| Car acceleration time from zero speed to 80 km / h, not more than, s | 35 |
| Turning diameter, m | 12,46 |
| Wheel formula | 4х2 |
| All-wheel-drive and non-wheel-drive chassis | with leading front axle |
| Body specifications | bonnet, all-metal |
| Dimensions of the medical salon, not less, mm: | 3120:1870:1932 |
| The height of the loading threshold, not more, mm | 540 |
| Angle of lateral stability, not less, glad (hail) | 0,488 (28) |
| Ground clearance, mm, not less | 160 |
| The level of internal noise in the medical salon, not more than dBA | True |
| at 60 km / h speed | 70 |
| at 90 km / h speed | 78 |
| Effort on controls, no more than N (kgf) | 147(15) |
| Overall dimensions (length: width: height), mm | 5450:2024:2750 |
