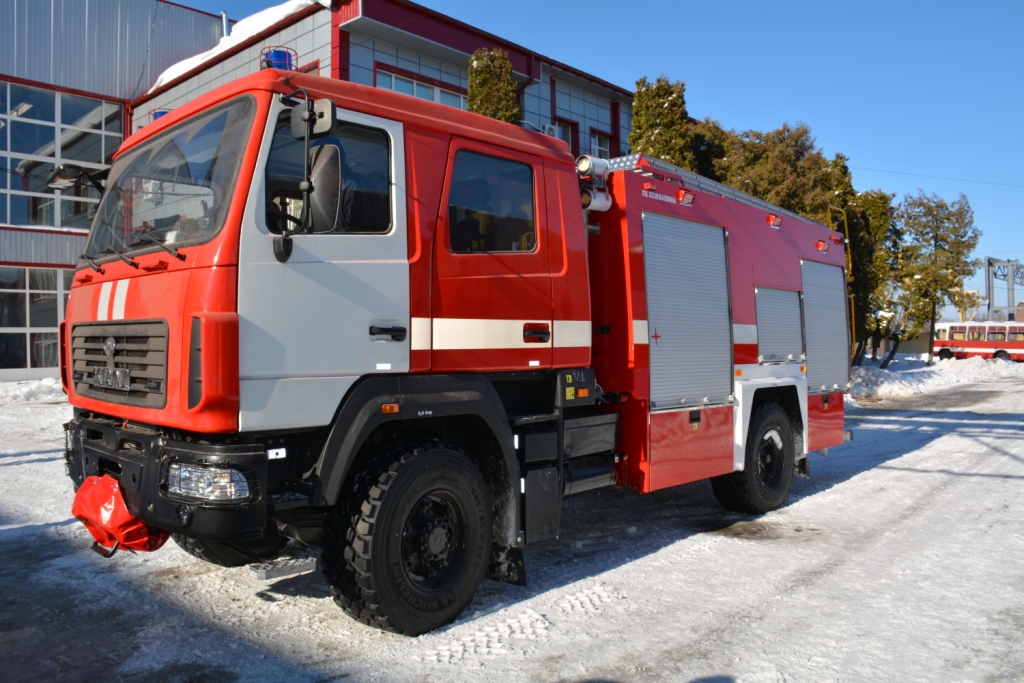

The fire truck FT-4-60 (5401NE) -515K is intended for delivery to the fire site of a combat crew, fire extinguishing equipment, fire-technical equipment (PTV) and serves to extinguish fires with water and air-mechanical foam.
| Base chassis | КрАЗ-5401НЕ / 4х4.1 |
|---|---|
| Engine | diesel |
| Power (max), kW (hp) | 243 (330) |
| Speed (max), with full load, km / h | 85 |
| The number of places for combat crew, people | 1 +6 |
| Water supply, m3 (l) | 4 (4000) |
| Frother, not less | 0,4 (400) |
| Type of water filling system | NVE-24 Autonomous, semi-automatic |
| Length of pressure hoses, m | 20/400 |
| Fire monitors | Manually operated stationary trunk Protek Style 622 |
| Number of hand barrels | 5 |
| Pump | centrifugal PN-60B-R-R |
| Pump capacity, l/min (l/sec) | 0,06(60) |
| Pump head, m | 100 |
| nominal rotational speed, RPM | 2700 |
| Maximum geometric suction lift, m | 7,5 |
| Duration of filling the pump at the highest geometric suction height, s, not more | 60 |
| Overall dimensions (length: width: height), mm | 9000: 2550: 3400 |
| Mass of the car with full load, kg | 19000 |
