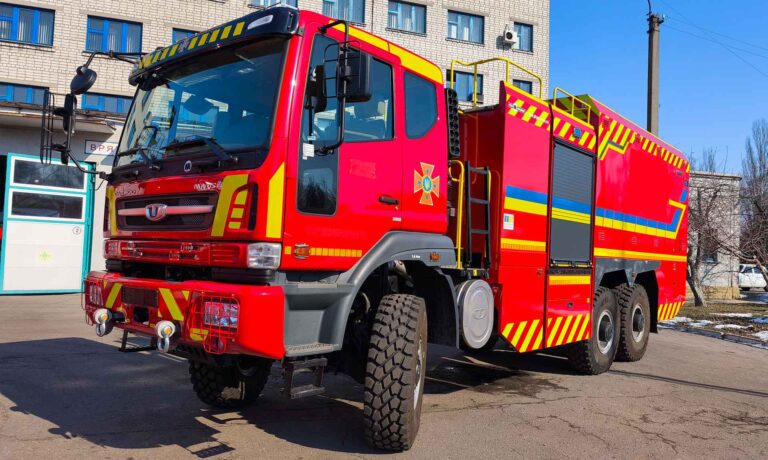

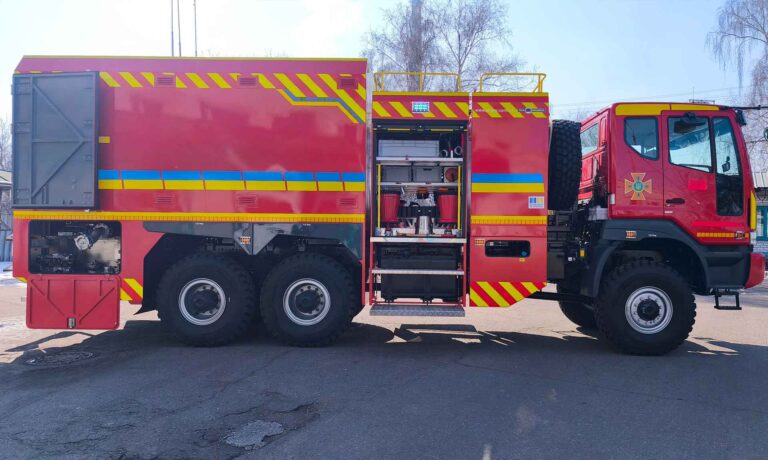

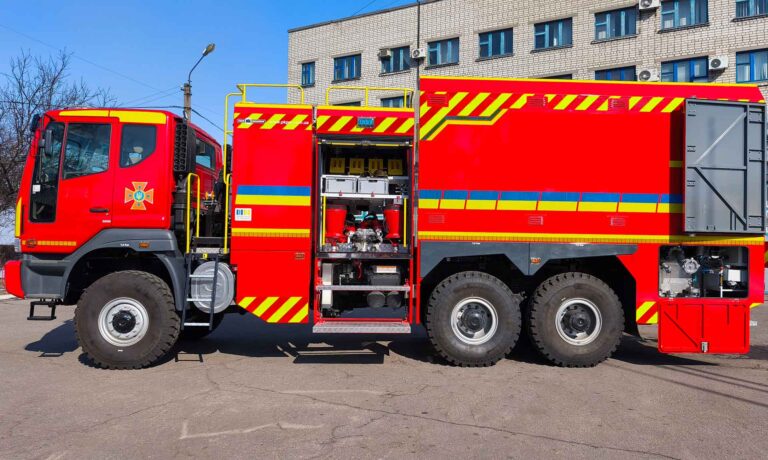

Fire and rescue pump-hose vehicle

Pump and hose fire trucks / Special fire trucks

Technical specifications

Additional information

Dimensions	10,580 × 2,600 × 3,800 mm
Base chassis	DAEWOO NOVUS CM6C7 6WD
Maximum engine power, kWt (h.p.)	308 (420)
Speed (max), with full load, km / h	90
Pump capacity, l/min (l/sec)	6600 (110)
Pump head, m	100

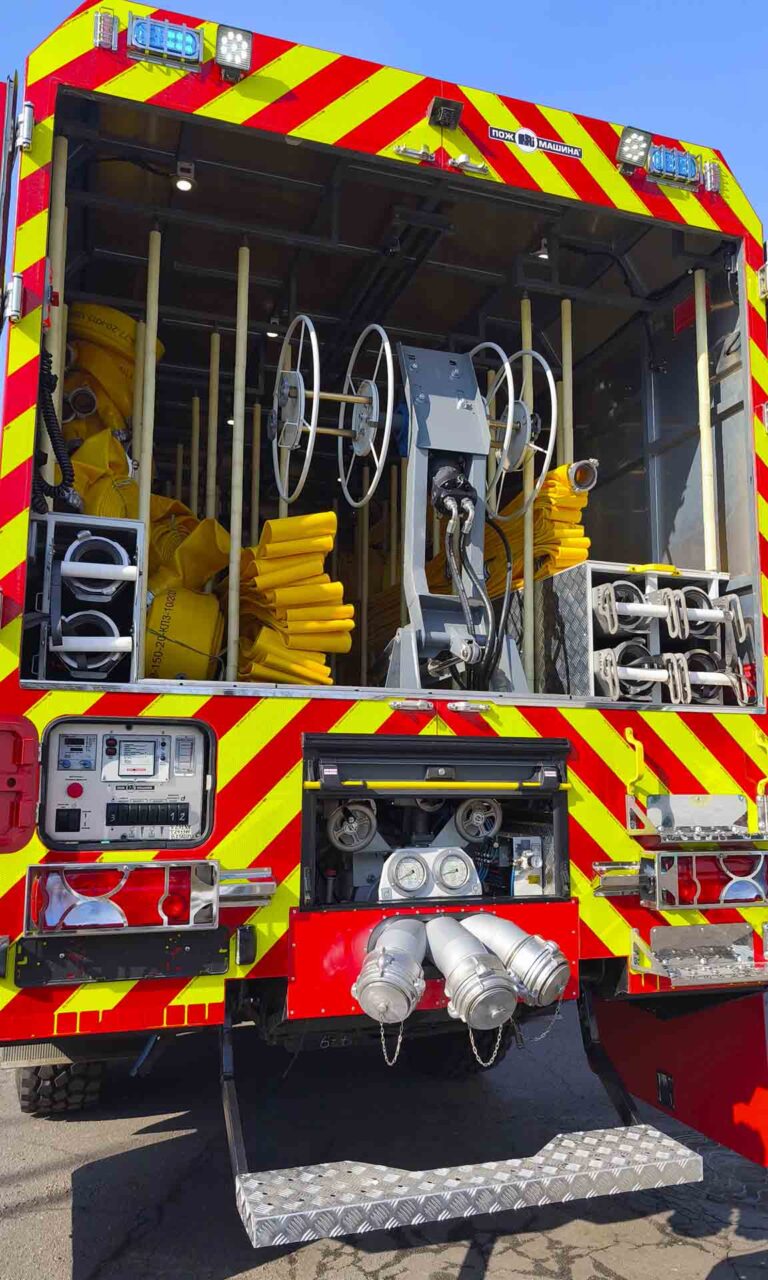

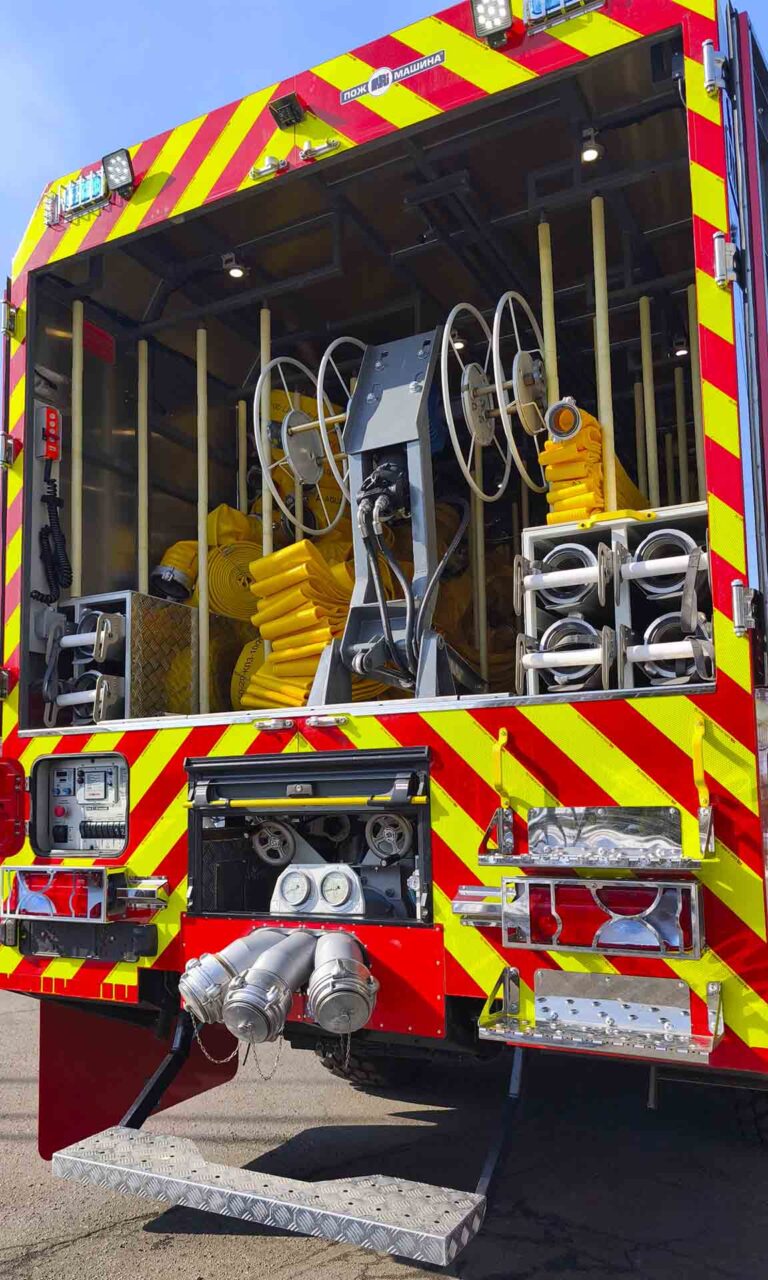

The method of laying pressure hoses	mechanized (on the run of the car in one or two lines)
Sleeve assembly method	mechanized, separate rolls

Additional information

Fire pump-hose vehicle intended for:

Delivery to the scene of an accident (fire) of an operational crew and fire-technical equipment;
Laying and cleaning of pressure main hose lines with diameters of 77 mm and 150 mm;

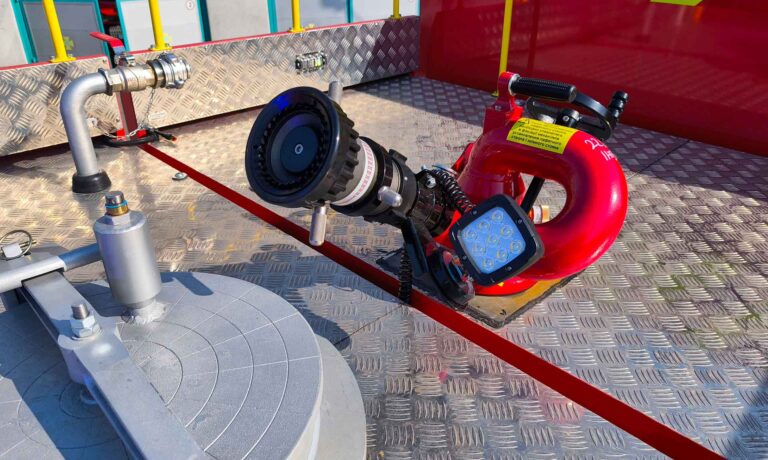

Supplying water from a reservoir through a stationary monitor (carriage nozzle) or two discharge outlets via 150 mm hose main lines to third-party consumers for direct supply to fire pumps, tanker trucks and mobile water or air-foam monitors in locations without a water supply, where water sources are at a considerable distance;
Supplying air-mechanical foam from a foam tank or an external container through its own stationary monitor or two discharge outlets via hose lines to third-party consumers;
Pumping water together with other vehicles over considerable distances from the reservoir to the fire site;
Creating a water reserve in artificial reservoirs when extinguishing large fires.
