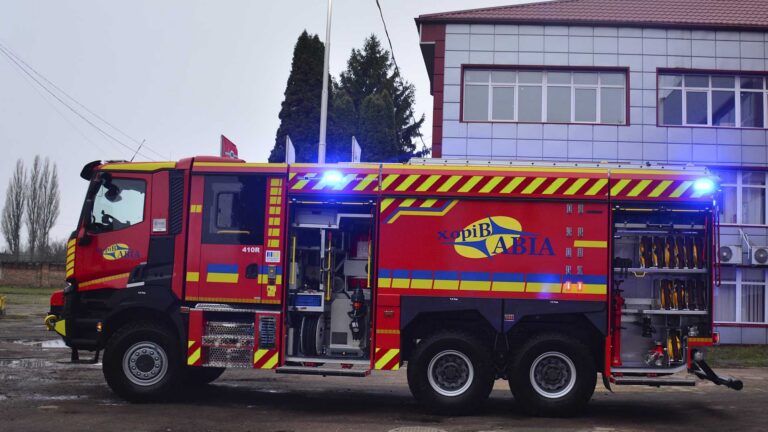

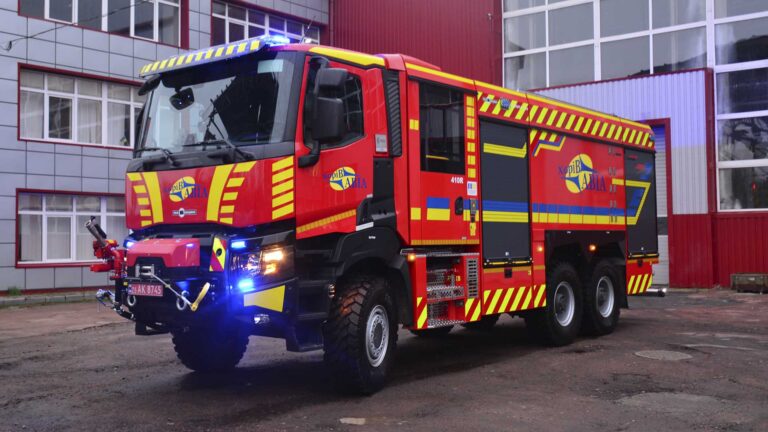

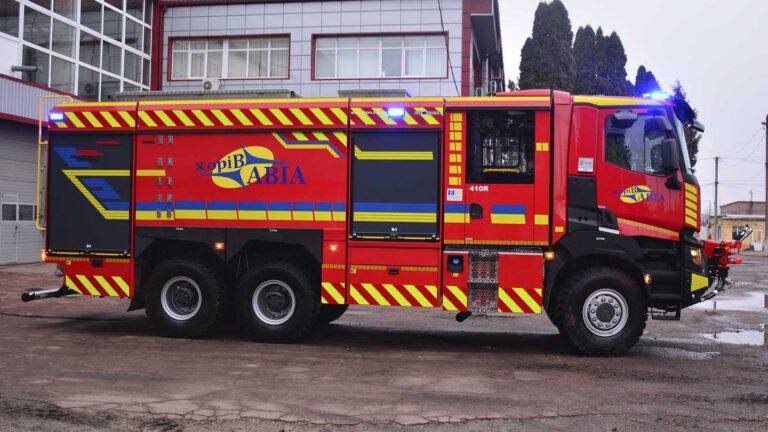

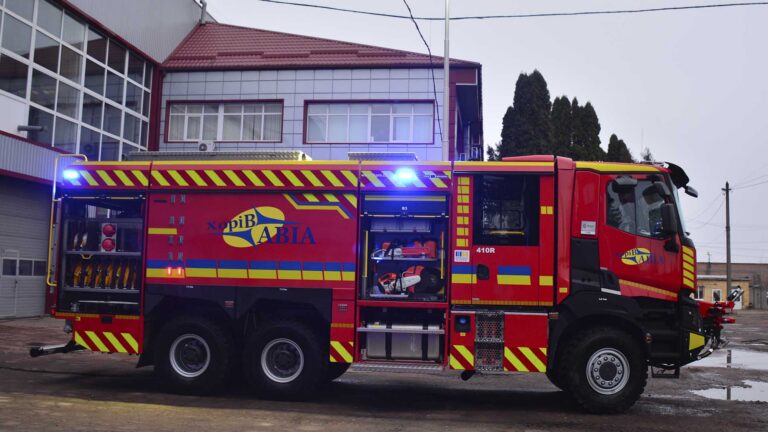

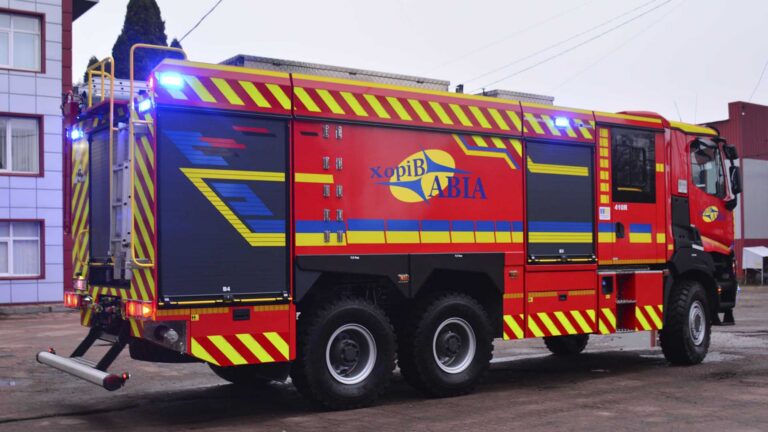

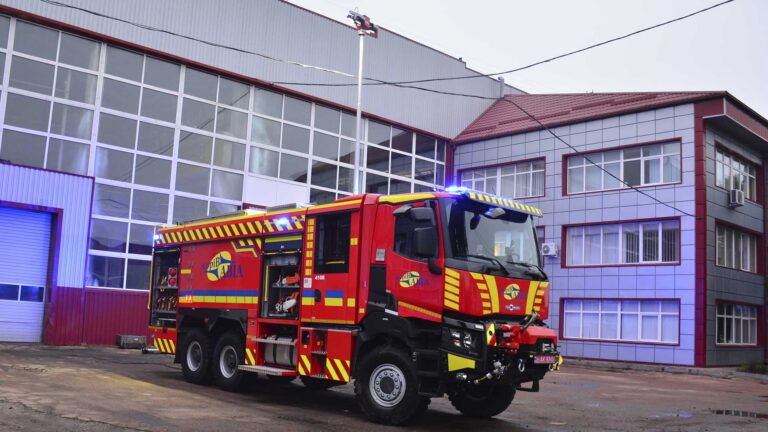

APA-410R
EN 1846-S-2-6-8100-10/3000-5
The APA-410R airfield fire truck is designed for emergency rescue and firefighting support of flights at airfields and heliports, as well as for performing emergency rescue operations in the area of responsibility of airports.
The vehicle is used for:
- extinguishing fires in aircraft, buildings, structures and technological equipment;
- supplying water, air-mechanical foam and fire extinguishing powder;
- conducting emergency rescue operations;
- illuminating the scene of an emergency and the surrounding area.
The APA-410R can be used as an independent combat unit or as part of airfield fire and rescue units.
Technical characteristics
Fire-fighting aerodrome trucks
Additional information
| Wheel formula | 6х6.1 |
|---|---|
| Base chassis | Renault K P 6x6 Medium 13L E5 |
| Maximum engine power, kWt (h.p.) | 353 (480) |
| Speed (max), with full load, km / h | 90 |
| Cabin quick calculation | cabover, salon, located above the engine |
| The number of places for combat crew, people | 1+5 |
| Water supply, m3 (l) | 8 (8000) |
| Frother, not less | 0,8 (800) |
| Pump | FPN 10-3000 Pozchmachina |
| Pump capacity, l/min (l/sec) | 3000 (50) |
| Pump head, m | 170 (1,7 МPа / 17 bar) |
| Fire monitors | Mounted barrel (monitor) stationary (mounted on the roof of the superstructure) TFT Monsoon RC (with TFT Master Stream 1000 RC nozzle) with electric control, Multifunctional bumper mount barrel (monitor) Fierre Geko 2’’ |
| Total mass of powder stock, kg | 200 kg |
Additional information
Powder fire extinguishing system: Stationary fire extinguishing powder supply system for rapid extinguishing of aviation fuel and process fluids fires. The powder is supplied through manual or carriage nozzles.
Carriage fire barrels: Front carriage barrel mounted on the bumper of the car, with remote or remote control
Emergency rescue winch: Designed for self-extraction of the car, evacuation of equipment and removal of obstacles during emergency rescue operations. Type: electric or hydraulic. Traction force: up to 7–9 t
Lighting mast: Telescopic mast with LED spotlights for lighting the scene of an emergency event in the dark or in conditions of limited visibility.
• Lifting height: up to 5–6 m.
• Lighting power: up to 4 × 1,000–1,500 lm
• Power supply: 24 V / 220 V
The composition of the PTO kit:
• professional chainsaw;
• gas cutter;
• fire axes;
• fire extinguisher;
• hose clamps and clamps;
• explosion-proof (ATEX) portable lanterns.
✅ Customer advantage
The availability and configuration of additional options allows you to adapt the APA-410R emergency fire truck to the specific requirements of the airport or the customer's service, ensuring maximum extinguishing efficiency and personnel safety.
