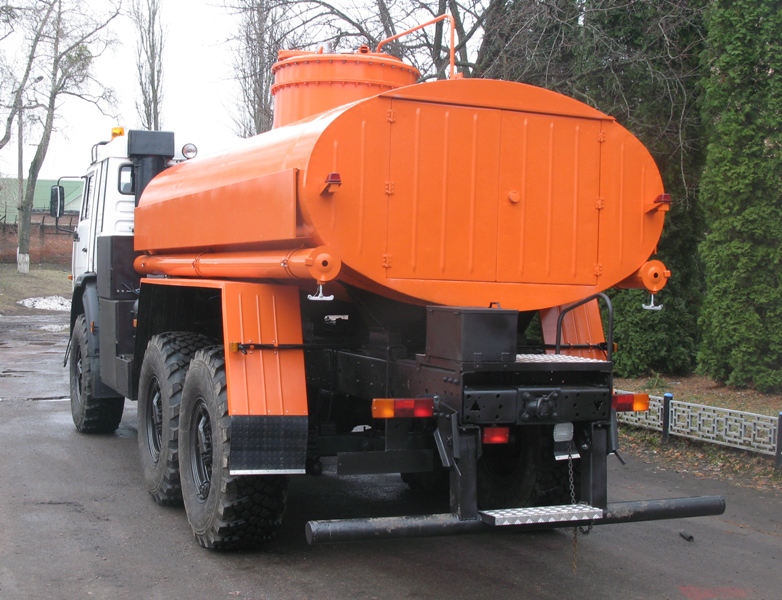

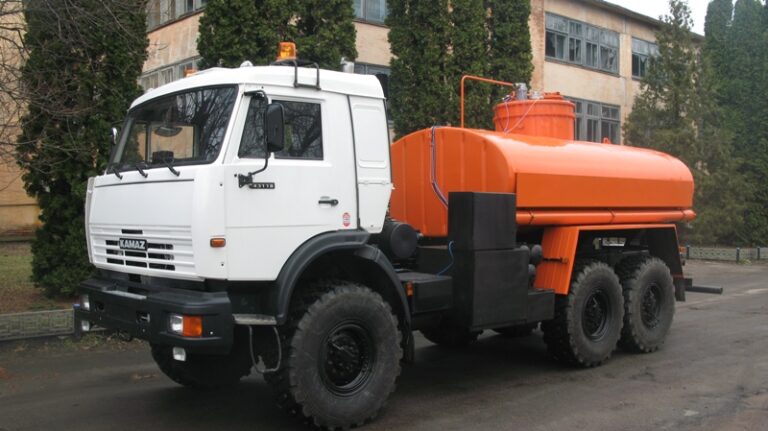

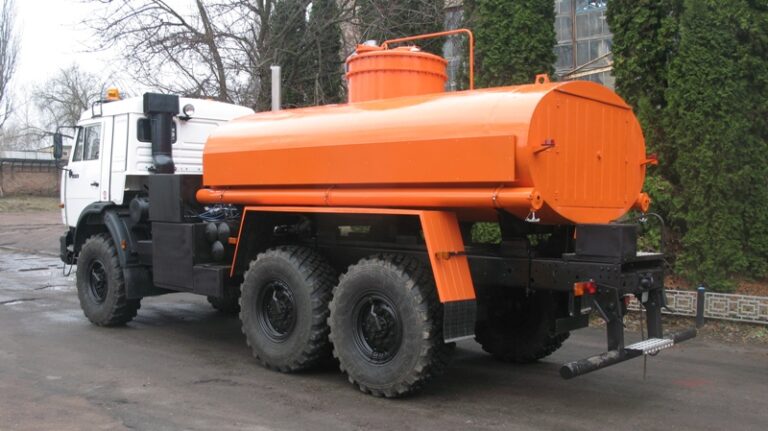

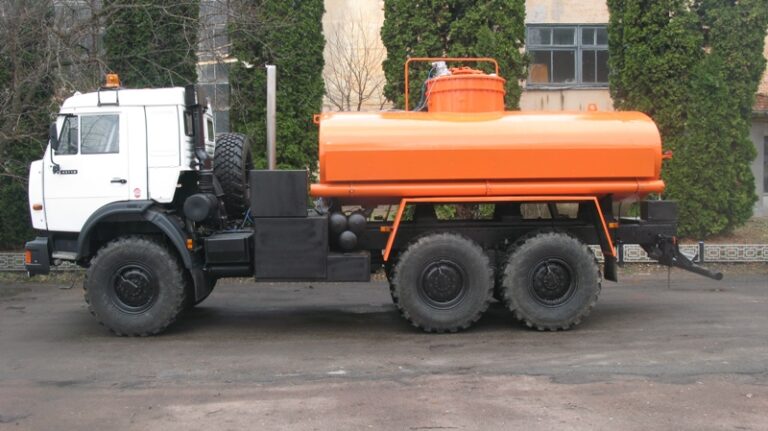

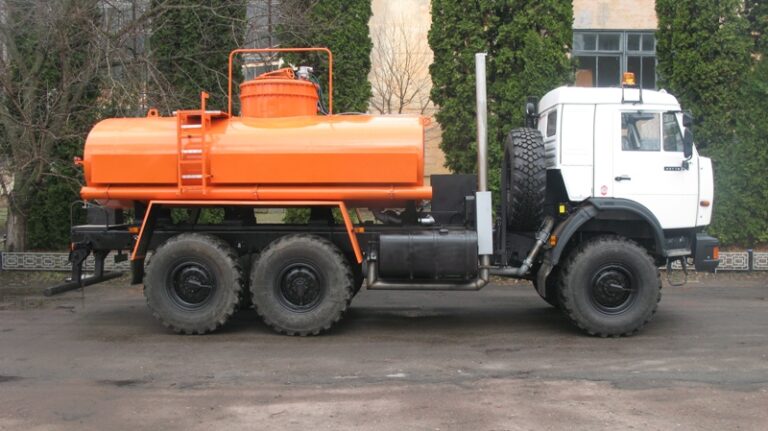

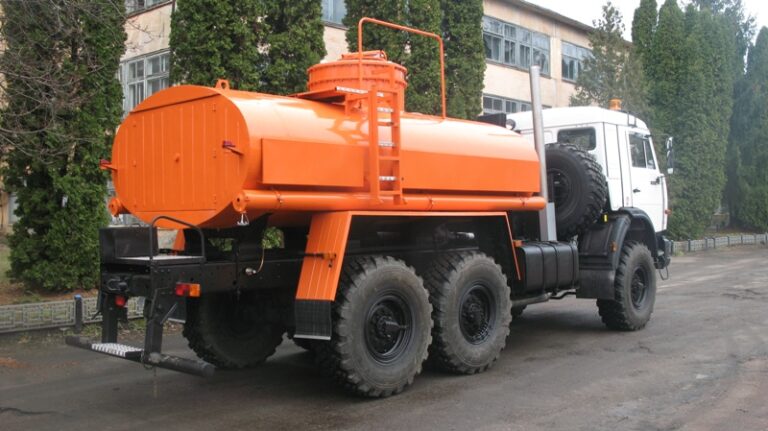

ATSNG-8-43118 tank truck is equipped with a pump, a tank for working fluids (except for alkalis and aggressive media) with a density of 0.85-1.35 g / cm3 and is designed for their transportation and short-term storage.
| Base chassis | КАМАЗ-43118 |
|---|---|
| Mass of the car with full load, kg | 22000 |
| Overall dimensions (length: width: height), mm | 8700:2500:3380 |
| Tank (m3) | 8,0 (8000) |
| Pump | vortex, self-priming, one-stage, model VS-80.1 (or 1SVN-80А) |
| Pump capacity, l/min (l/sec) | 500 |
| Pump head, m | 32 |
| Maximum geometric suction lift, m | 6,5 |
| Wheel formula | 6х6.1 |
| Cabin quick calculation | cabin over the engine |
| Power (max), kW (hp) | 191 (260) |
| The number of places for combat crew, people | 3 |
| Ground clearance, mm, not less | 380 |
| overhang angle, degree: | True |
| front | 0,66 (38) |
| rear | 0,26 (15) |
| Turning radius, overall, m | 11,5 |
| Margin pressure-suction hoses (Ø75 mm, L = 3 m) pieces. | 2 |
| Type of fuel consumed | diesel |
| Capacity of fuel tanks, l | 2х210 |
