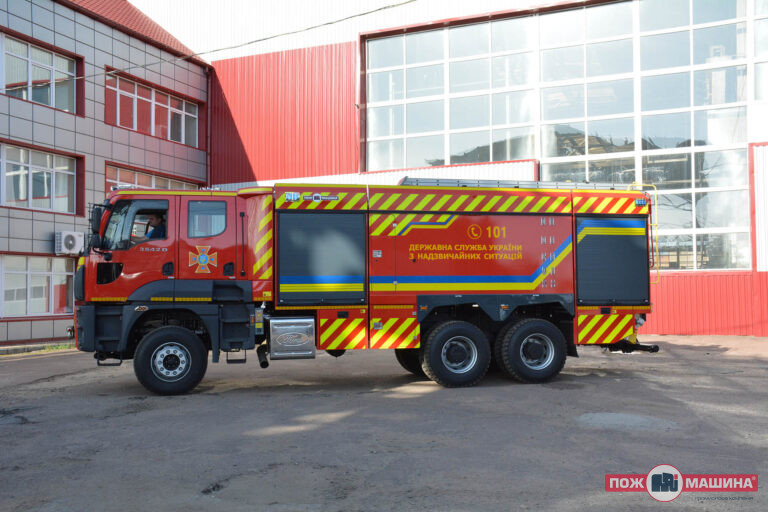

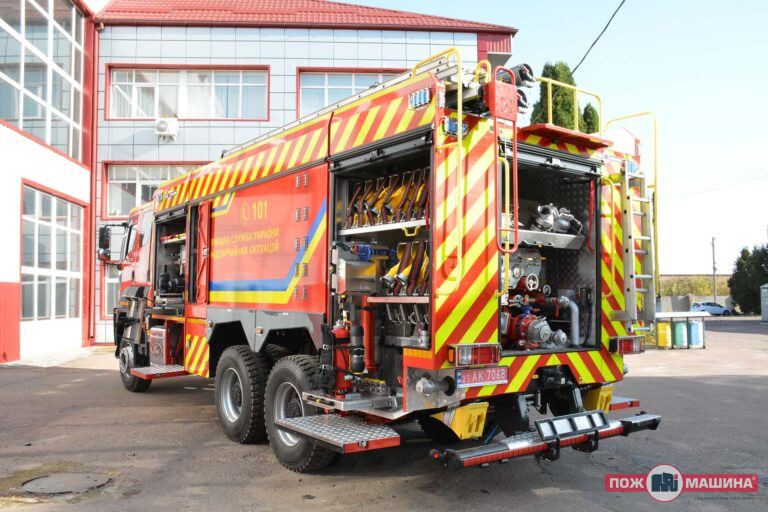

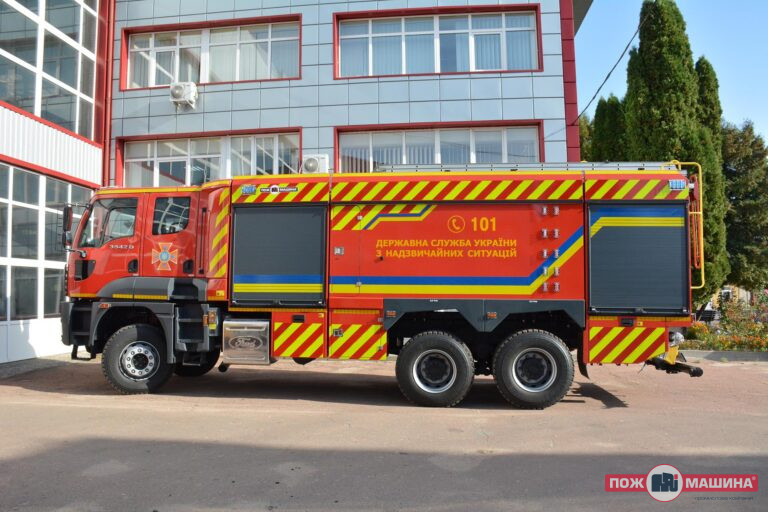

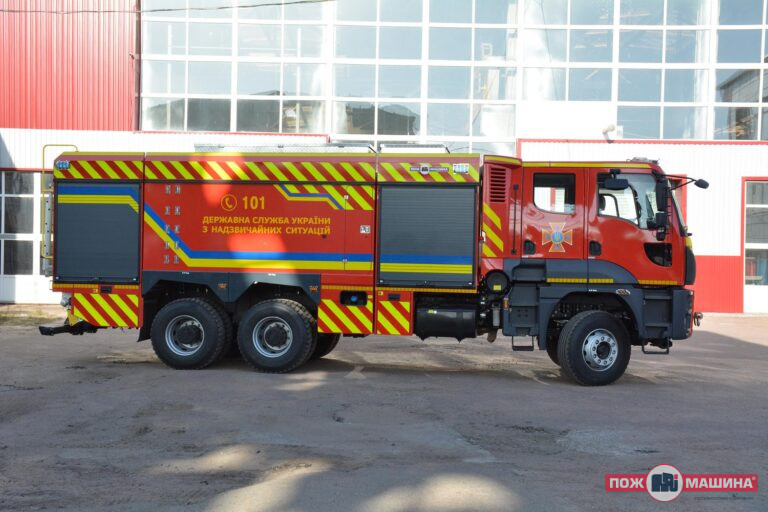

АC-8-50 (3542)-508F

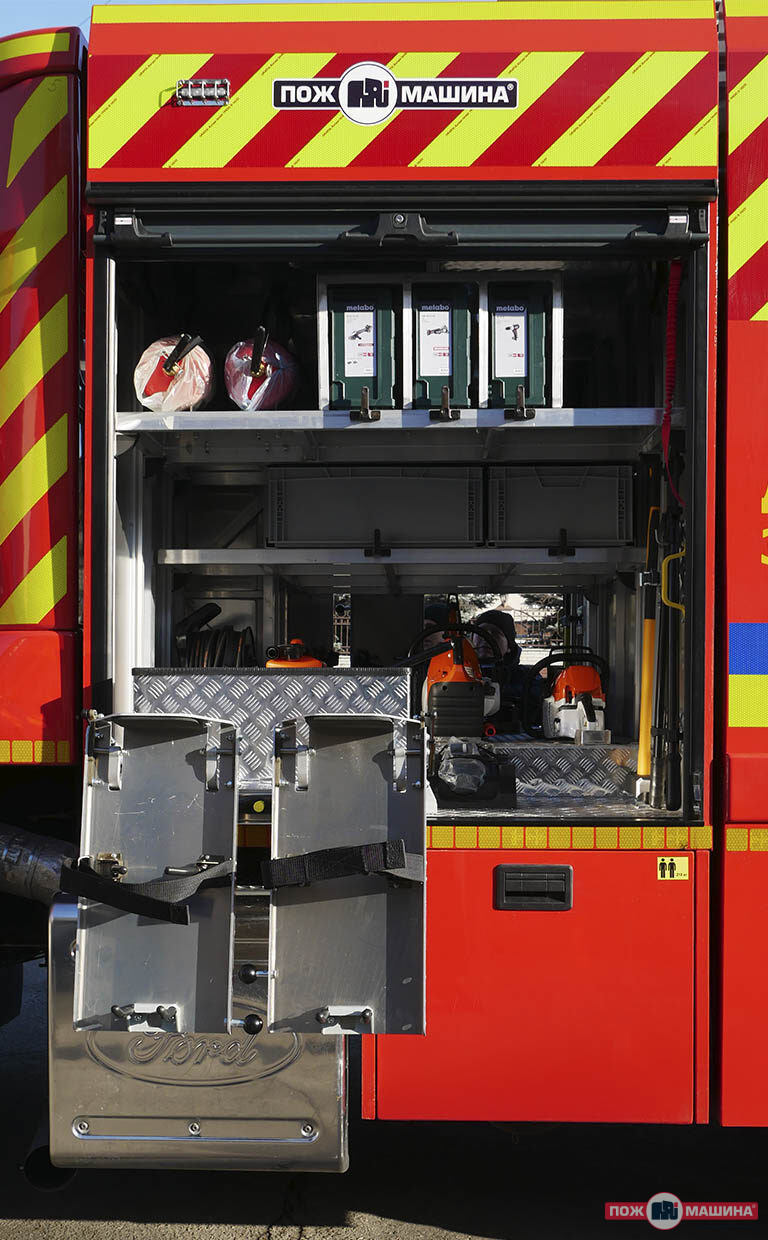

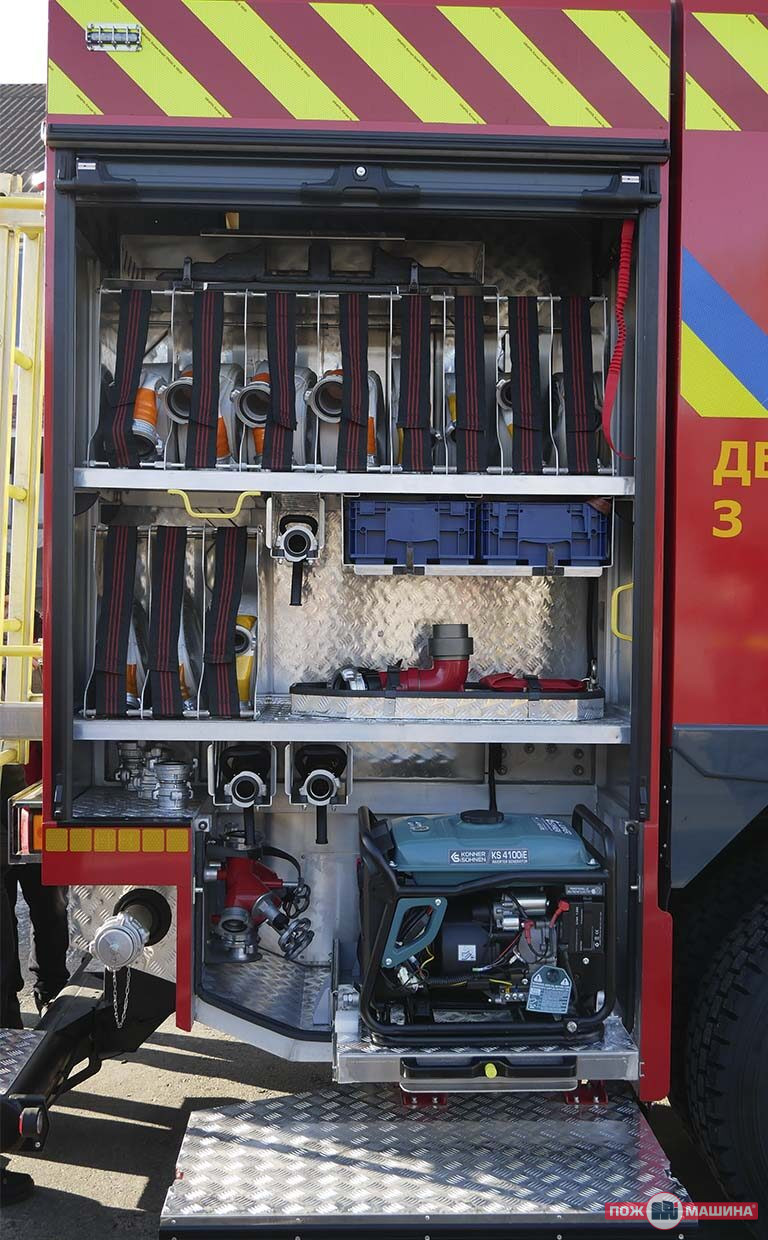

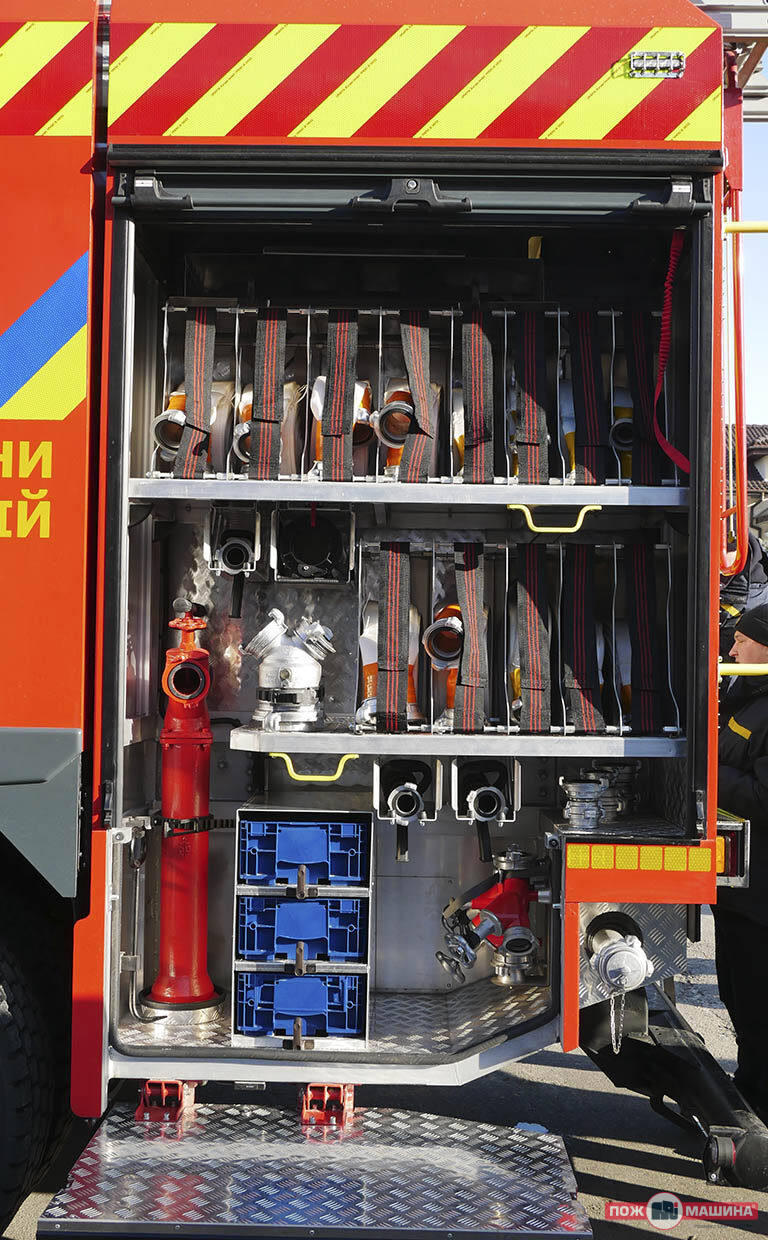

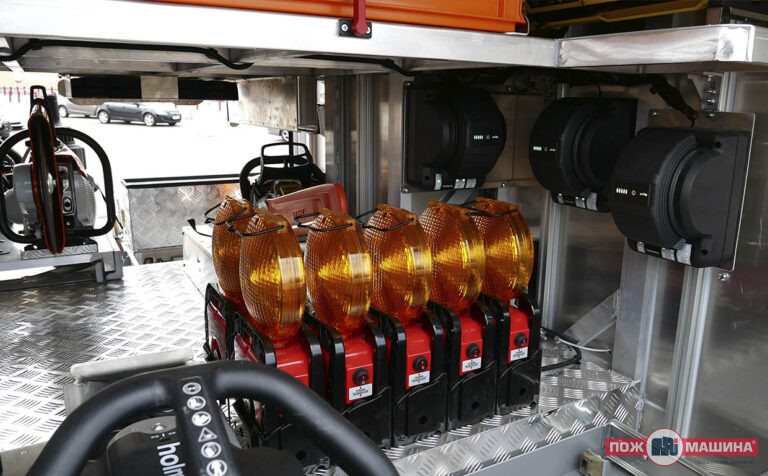

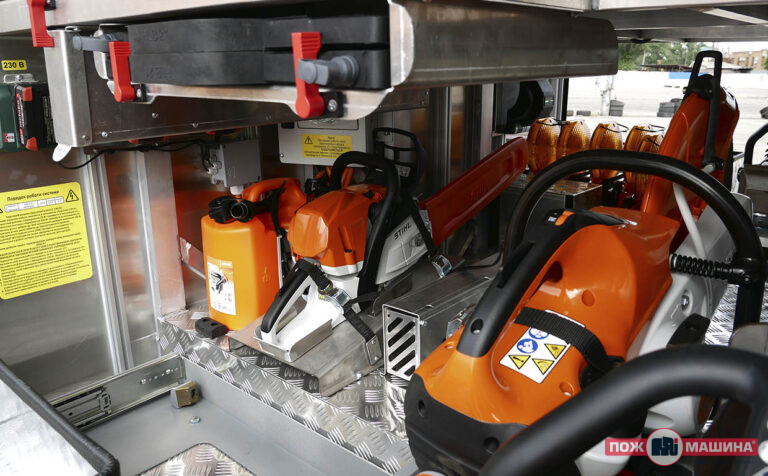

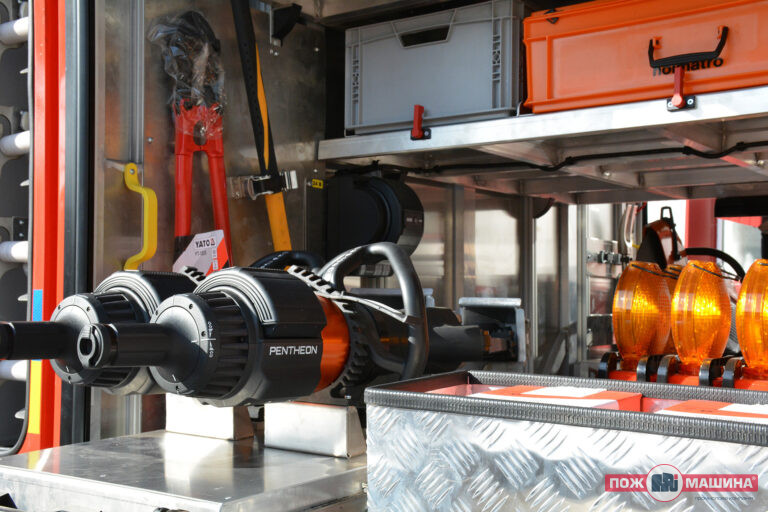

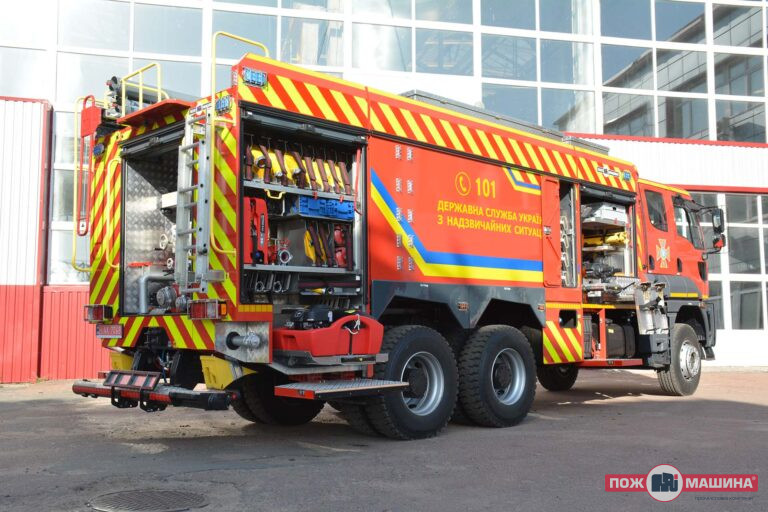

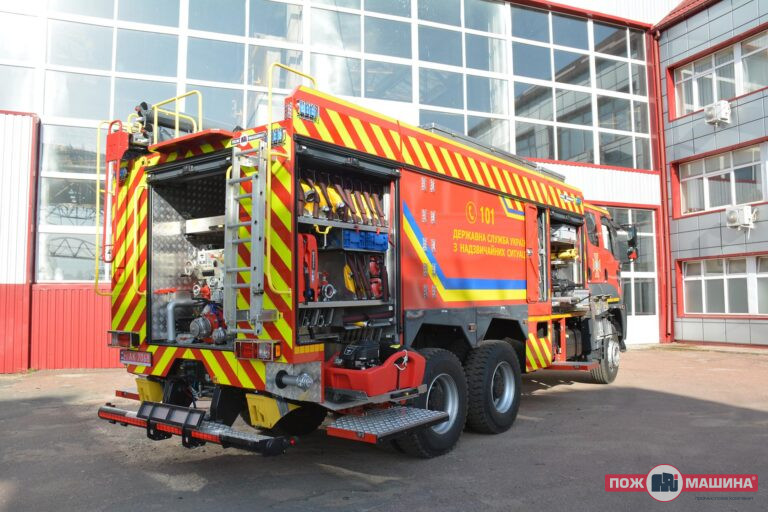

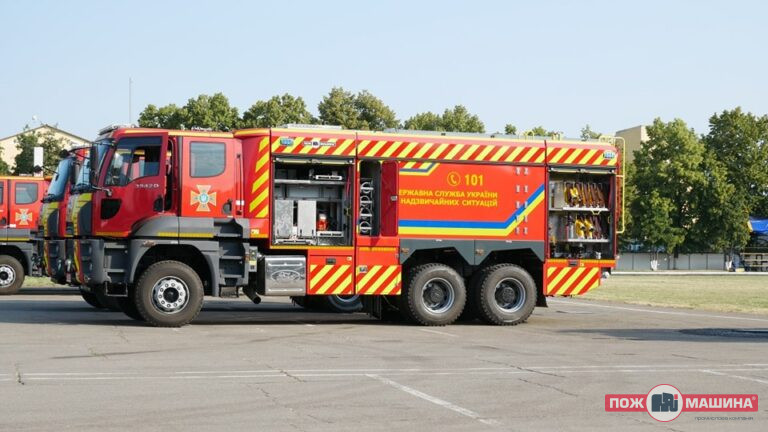

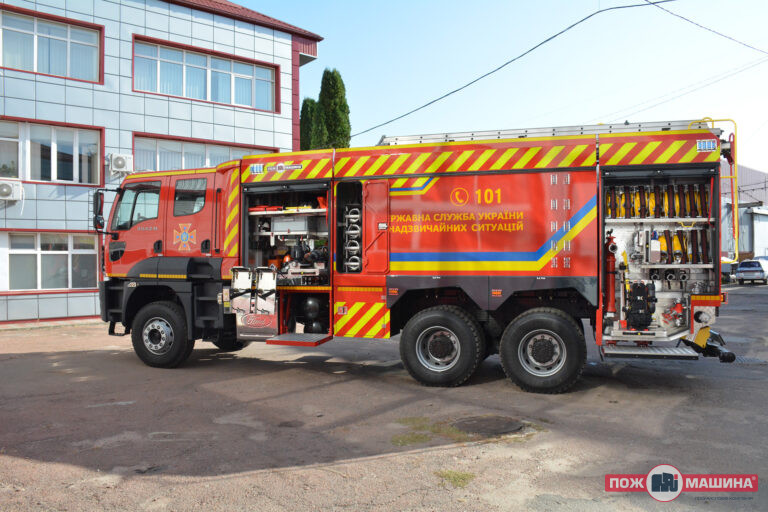

Fire tanker АЦ-8-50 (3542)-508F is intended for the transportation of personnel of the operational calculation, fire-extinguishing substances and fire-fighting technical equipment and emergency and rescue equipment for extinguishing fires and carrying out fire-rescue work.

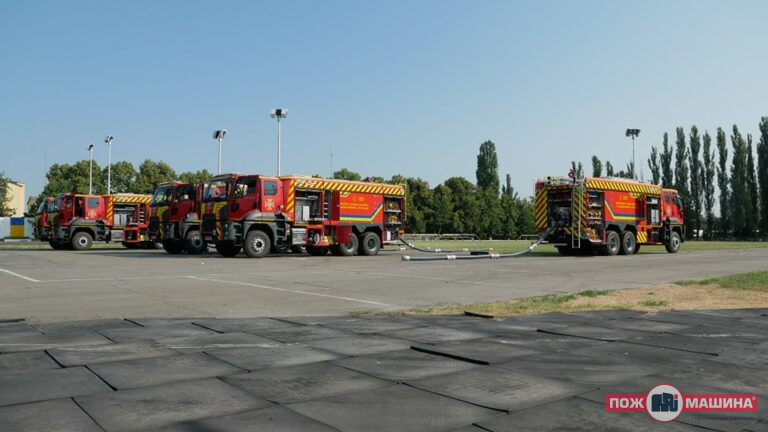

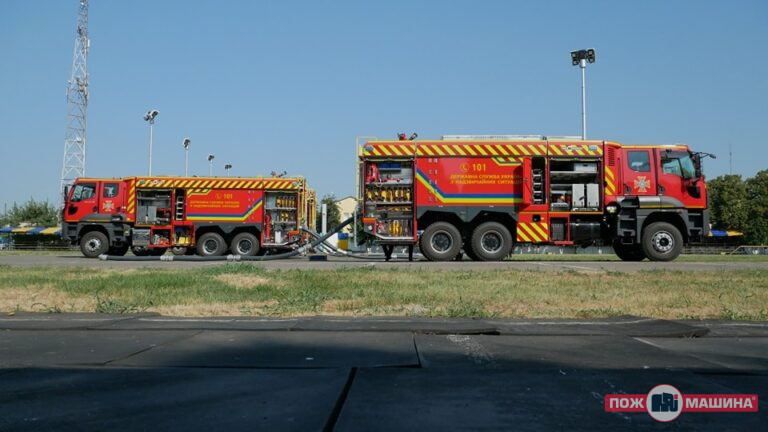

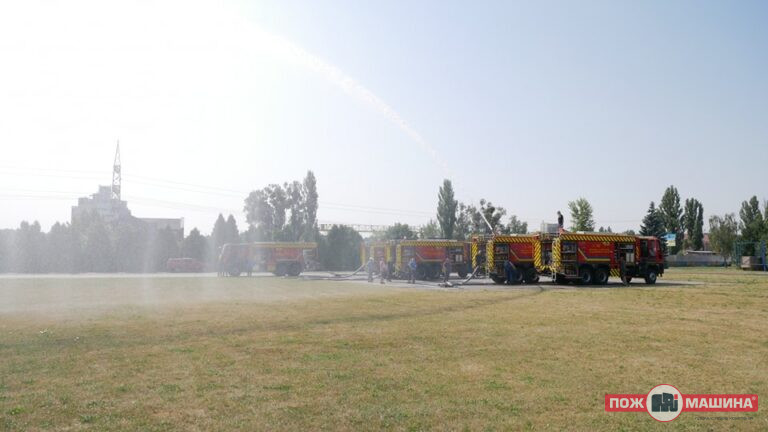

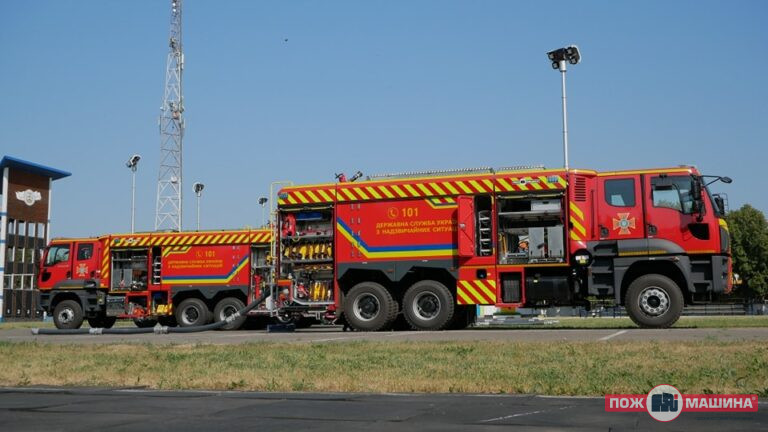

The tanker can be used in cities, rural settlements, industrial areas by fire protection units as an independent combat unit, or as a pumping unit when working “in pumping” with one or several other fire tankers.

Additional information

Dimensions	10,000 × 2,600 × 3,400 mm
Gross vehicle weight, kg	29000
Base chassis	Ford 3542D CC 6×4
Maximum engine power, kWt (h.p.)	308 (420)
Speed (max), with full load, km / h	90
Cabin quick calculation	cabover, salon, located above the engine
The number of places for combat crew, people	1+5
Water supply, m3 (l)	8 (8000)
Type of water filling system	autonomous, semi-automatic, with electrically operated sliding vane pump

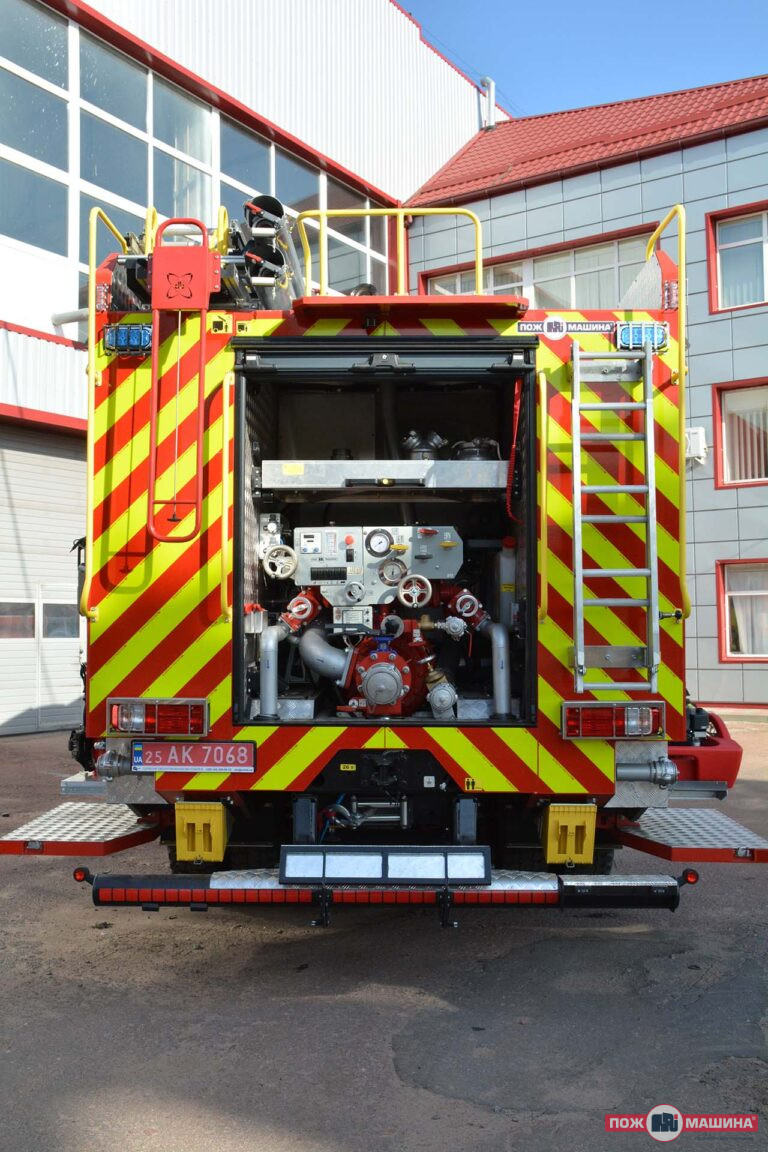

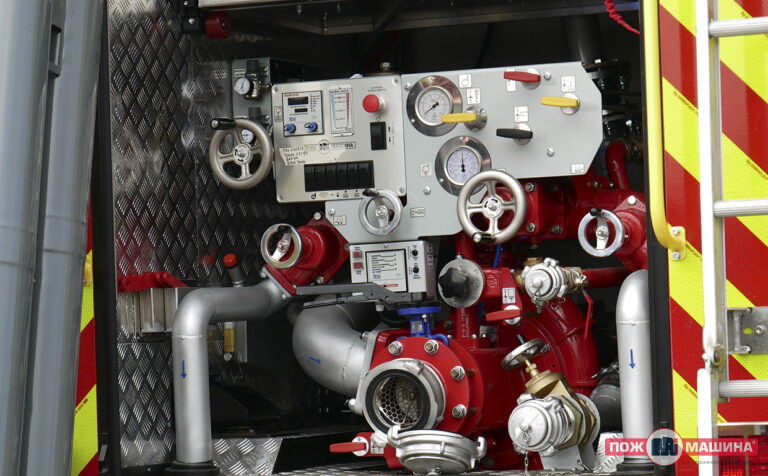

Pump	FPN 10-3000 Pozchmachina
Pump capacity, l/min (l/sec)	3000 (50)
Pump head, m	170 (1,7 МPа / 17 bar)
