APRC-518R
EN 1846-S-2-6-8000-10/3000-5

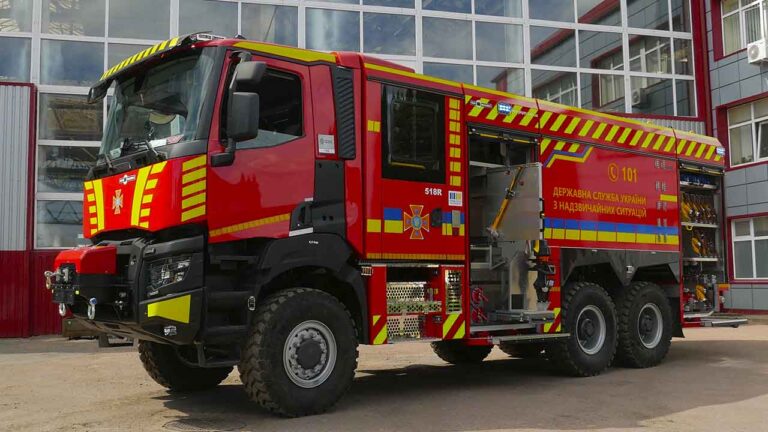

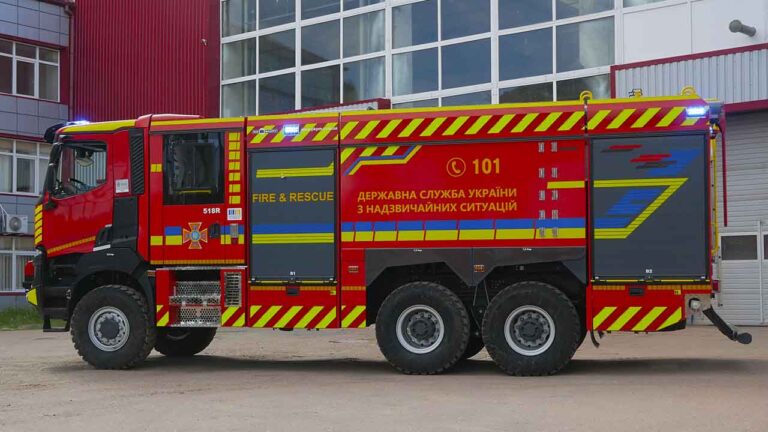

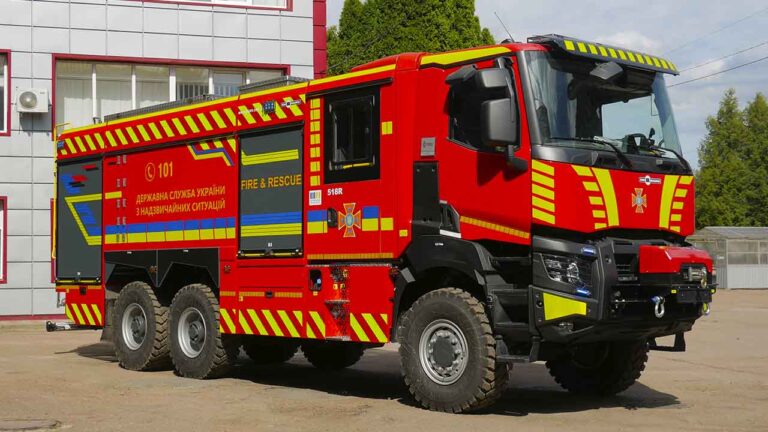

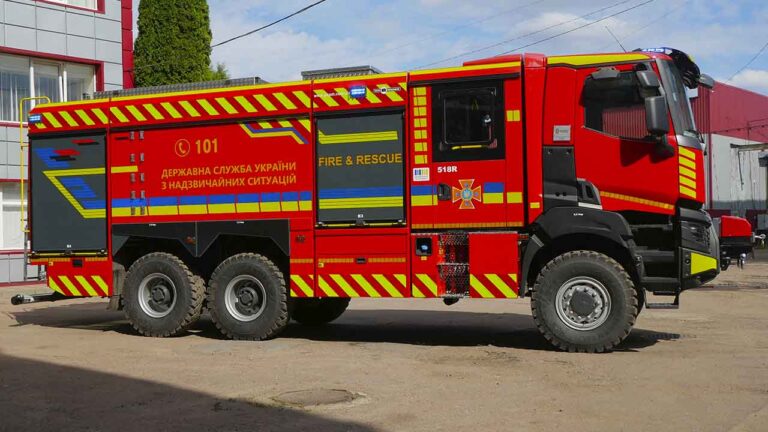

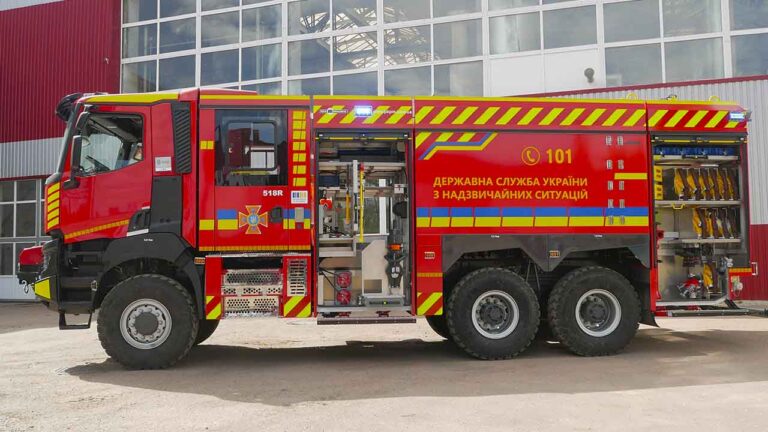

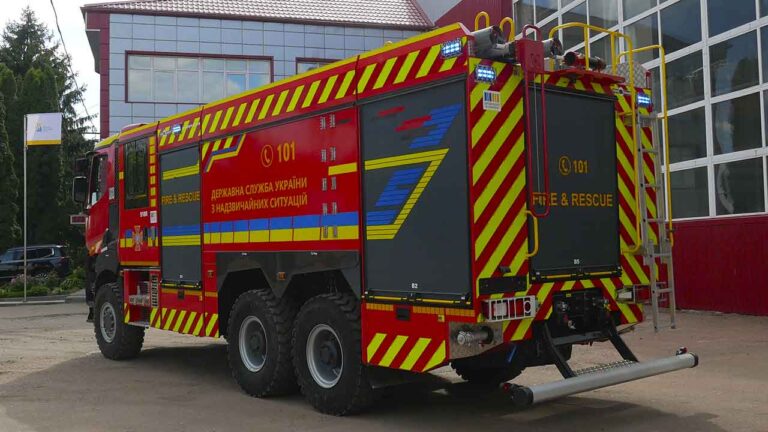

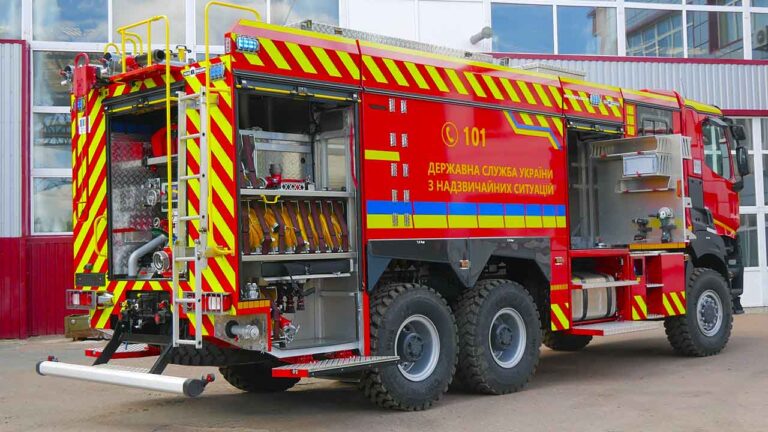

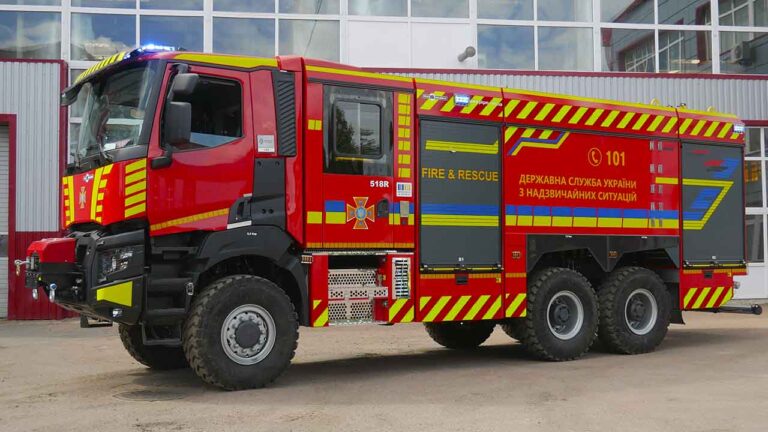

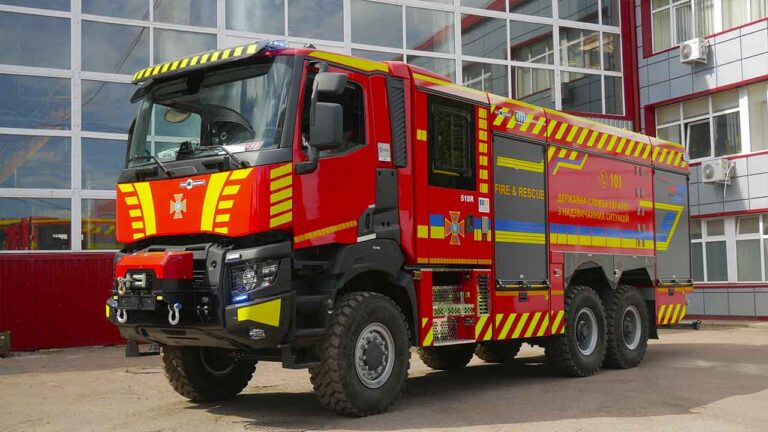

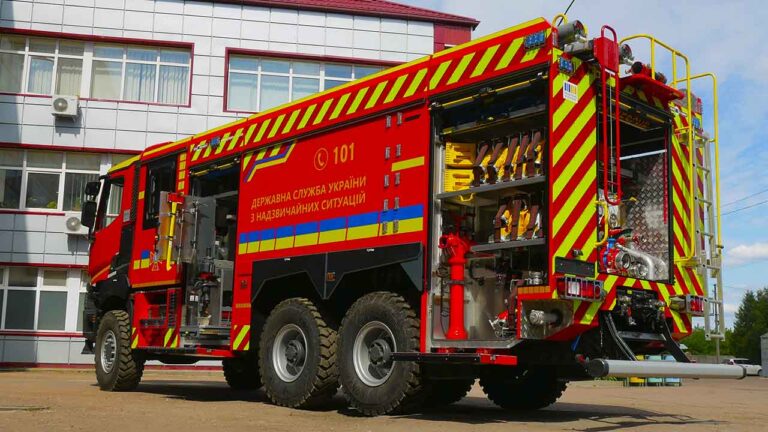

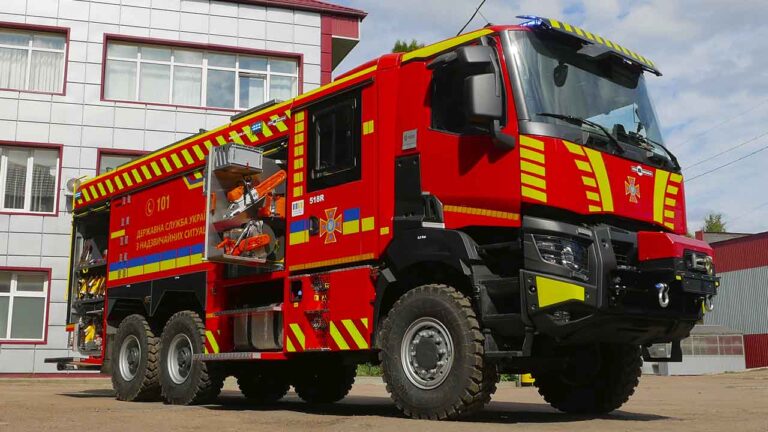

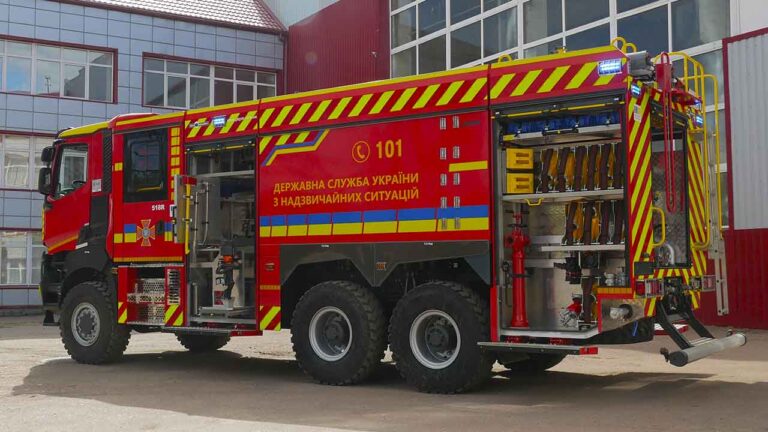

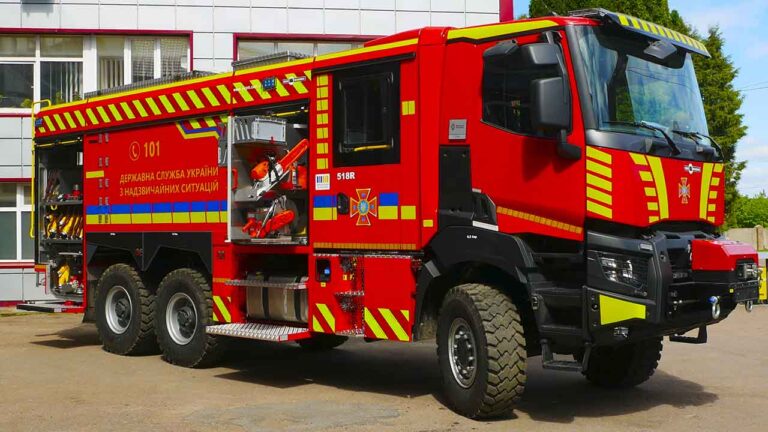

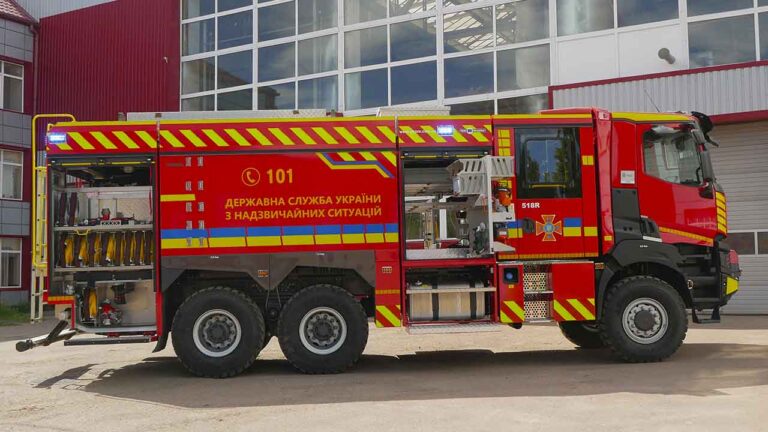

Automotive fire truck with tank APRC-8-50 (13LE5 )-518R intended for the transportation of a special vehicle warehouse, fire extinguishers and fire-fighting equipment (PTO) and emergency equipment (ARO) for burning and landing fire-rescue operations.
The permanent-reactive vehicle with a tank can be used in cities, rural settlements, industrial regions, in border areas with tanks, where there is one independent combat vehicle, or as a pumping unit when "pumping" both of them with several other fire-rescue vehicles.
Technical characteristics
Additional information
| Gross vehicle weight, kg | 27500 |
|---|---|
| Base chassis | Renault K P 6x6 Medium 13L E5 |
| Maximum engine power, kWt (h.p.) | 353 (480) |
| Speed (max), with full load, km / h | 90 |

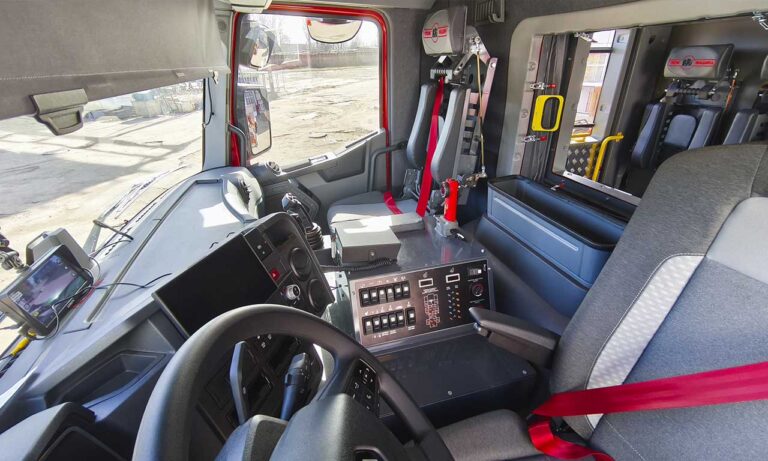

| Cabin quick calculation | cabover, salon, located above the engine |
| The number of places for combat crew, people | 1+5 |
| Water supply, m3 (l) | 8 (8000) |
| Type of water filling system | autonomous, semi-automatic, with electrically operated sliding vane pump |
| Pump | FPN 10-3000 Pozchmachina |
| Pump capacity, l/min (l/sec) | 3000 (50) |
| Pump head, m | 170 (1,7 МPа / 17 bar) |
Additional information

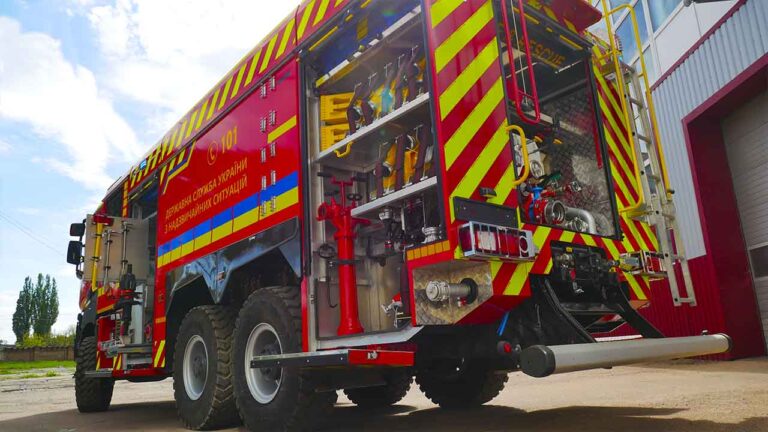

The tanker is additionally equipped with:
Multifunctional bumper carriage barrel (monitor)
Lighting mast, which provides illumination of the emergency scene and the space around the APRC of the vehicle with four LED spotlights, power 220V and 24V
Lifting height from ground level – 6 m. 9-ton winch
Emergency and rescue equipment
GPS navigation and video recording system, consisting of a GPS module with a built-in navigator and video recorder, as well as a connected rear view camera.
SIZOD devices are installed in the cabin
Quick-detachable connecting head for connecting additional pressure sources to the brake system
Special Rettbox socket, with automatic opening ("shooting off") function
Ensures the possibility of using easily removable connectors and/or exhaust gas removal systems
