TTO-8-43118

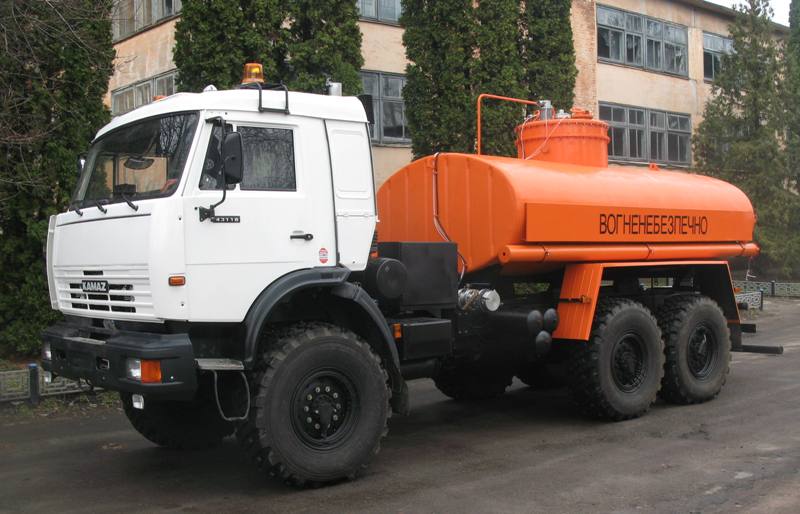

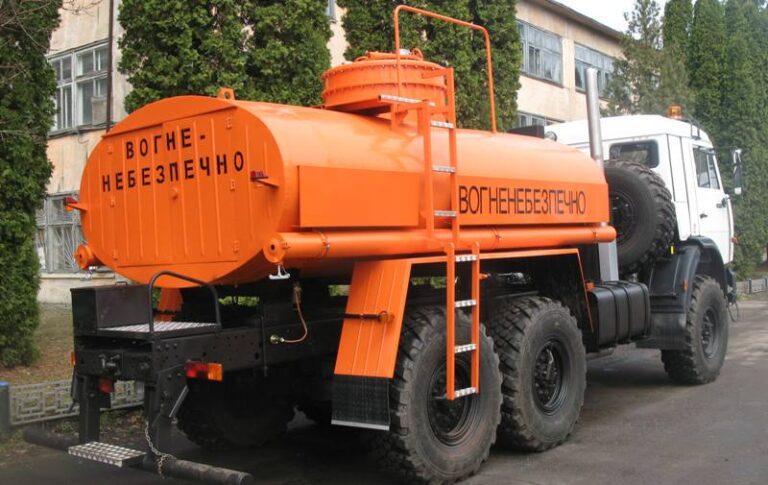

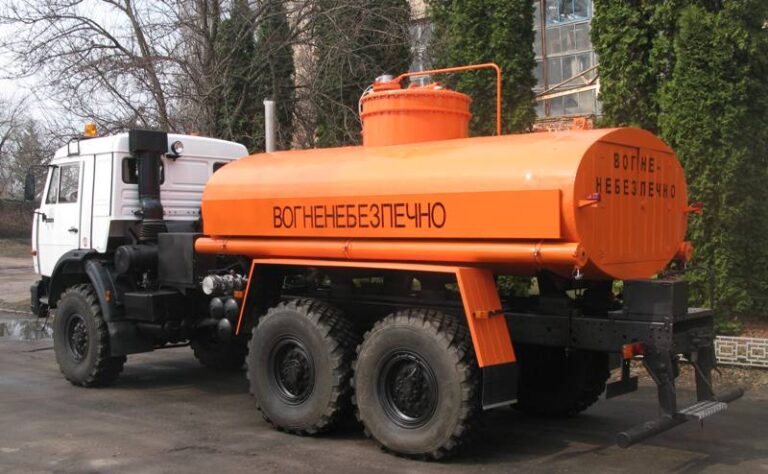

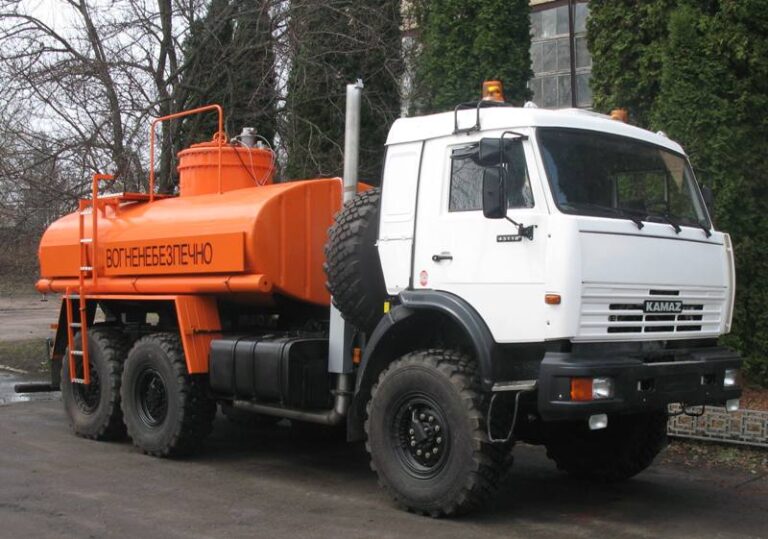

Tank truck АTSN-8-43118, equipped with a tanker and designed for transportation and short-term storage of light oil products with a density of no more than 0.86 t / m3 at temperatures from minus 40 ° С to plus 45 ° С.

Additional information

Base chassis	КАМАЗ-43118
Wheel formula	6х6.1
Mass of the car with full load, kg	19000
Overall dimensions (length: width: height), mm	8750:2500:3450
Tank (m3)	8,0 (8000)
Cabin quick calculation	cabin over the engine
Power (max), kW (hp)	191 (260)
The number of places for combat crew, people	3
Ground clearance, mm, not less	380
overhang angle, degree:	True
front	0,66 (38)
rear	0,26 (15)
Turning radius, overall, m	11,5
Margin pressure-suction hoses (Ø75 mm, L = 3 m) pieces.	2
Type of fuel consumed	diesel
Capacity of fuel tanks, l	2х210 (или другие)
