Additional information
| Base chassis | КамАЗ-43114 (6х6) |
|---|---|
| The number of places for combat crew, people | 3 |
| Mass of the car with full load, kg | 15450 |
| Engine | diesel |
| Power (max), kW (hp) | 176 (240) |
| Power, kWt | 20 |
| Voltage, V | 400/230 |
| Generator drive | From engine chassis |
| Portable generator set, kW, not less | 4,5 |

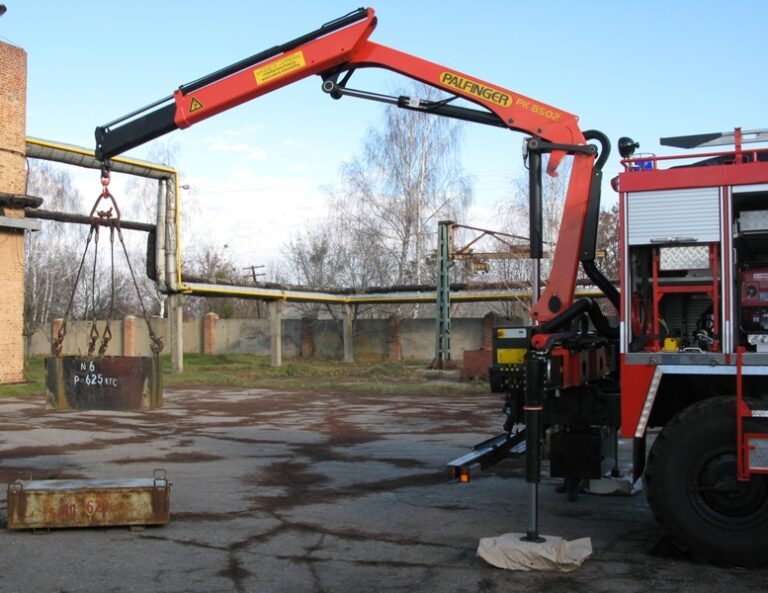

| type of crane | hydraulic |
| maximum load moment, kN m (tm) | 30(3) |
| Max. load capacity on the first arrow, kN (t.) | 12 (1,2) |
| boom reach, m | 6 |
| maximum height of boom lift, m | 7,2 |
| angle of rotation, degrees | ±200 |
| on telescopic mast | 2 х 1,5 |
| portable spotlights | 4 х1,5 |
| Total power of searchlights, not less, kW | 9 |
| Spotlight Orientation Control | manual |
| Mast extension drive / lifting height, m, not less | Pneumatic /6 |
| Working length of the winch cable at delivery, m, | 86 |
| maximum tractive effort when feeding the cable, kN (t.), | 50 (5) |
| Overall dimensions (length: width: height), mm | 7800:2500:3300 |
