НЦПК – 40/100 – 4/400 – Р – Р

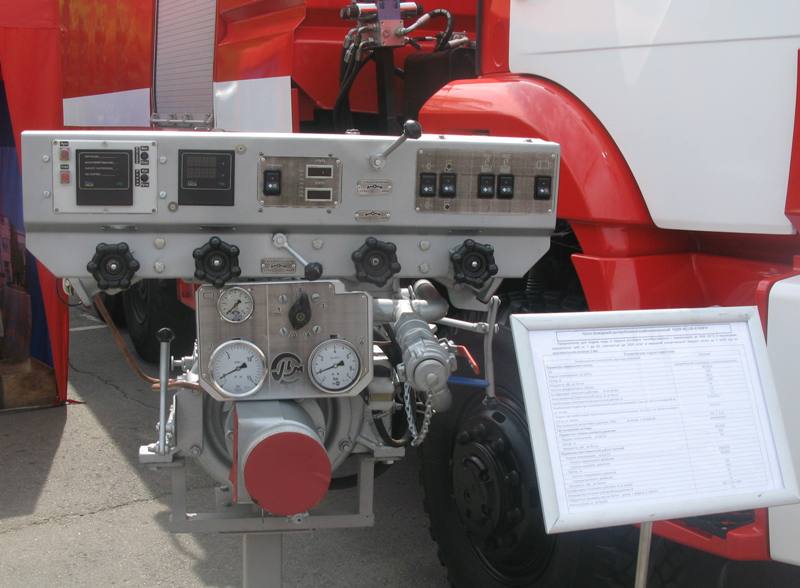

Fire centrifugal combined pump НЦПК – 40/100 – 4/400 Р – Р is intended for water and water solutions feed , temperature till 303 К (+30 0С) and hydrogen index (рН) from 7 till 10, density 1010 кг/м3 and mass concentration of hard particle is till 5%, its max. size is 3 mm.
Additional information
| Pump | Centrifugal, console, combined |
|---|---|
| Pump capacity, l/min (l/sec) | 40 (0,04) |
| Pump head, m | 100 |
| Power, kWt | 60,5 (82,5) |
| Speed, rpm | 2700 |
| Efficiency,% | 65 |
| Cavitation / critical / stock, m, not more | 3,0 |
| Maximum geometric suction lift, m | 7,5 |
| Overall dimensions (length: width: height), mm | 900:1000:800 |
| Voltage, V | 24 |
| Curb weight, kg, not more | 170 |
