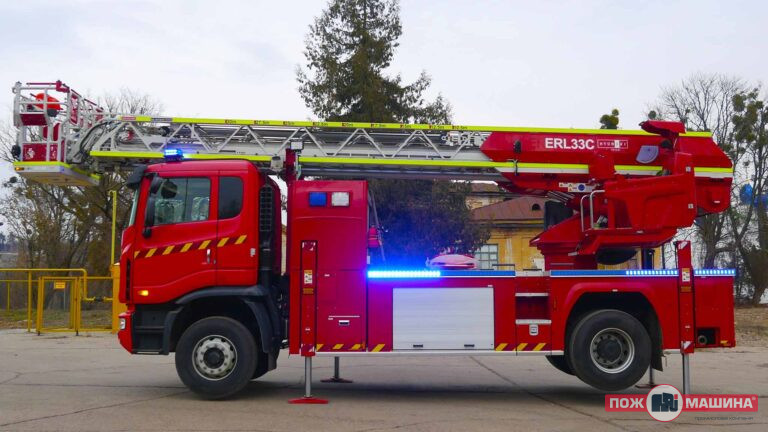

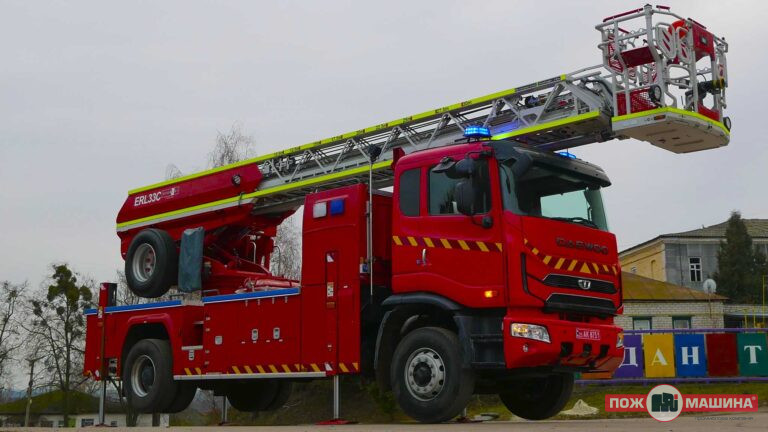

ERL33C – ПОЖМАШИНА

ERL33C

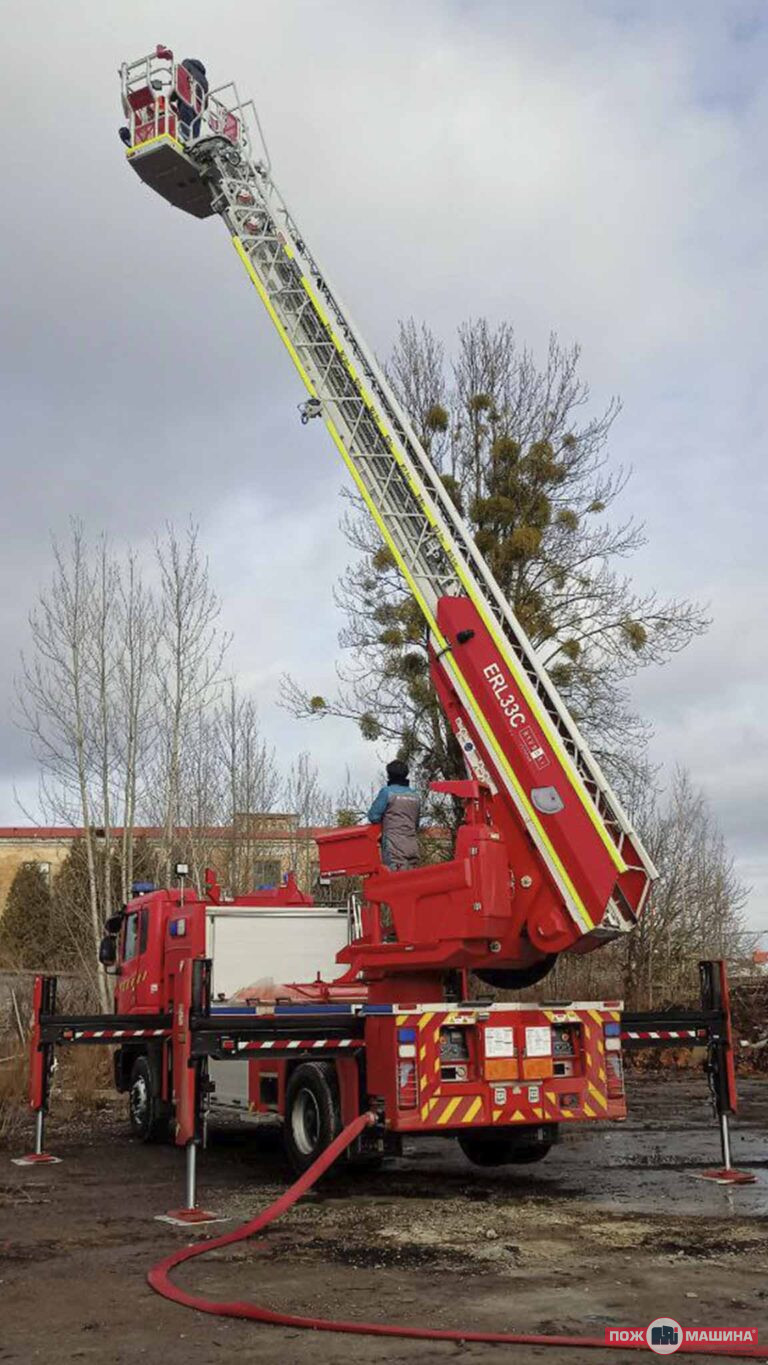

The fire ladder truck is designed for:

transporting personnel and necessary fire-fighting and rescue equipment to the site of rescue operations, emergency recovery works, and fire suppression;

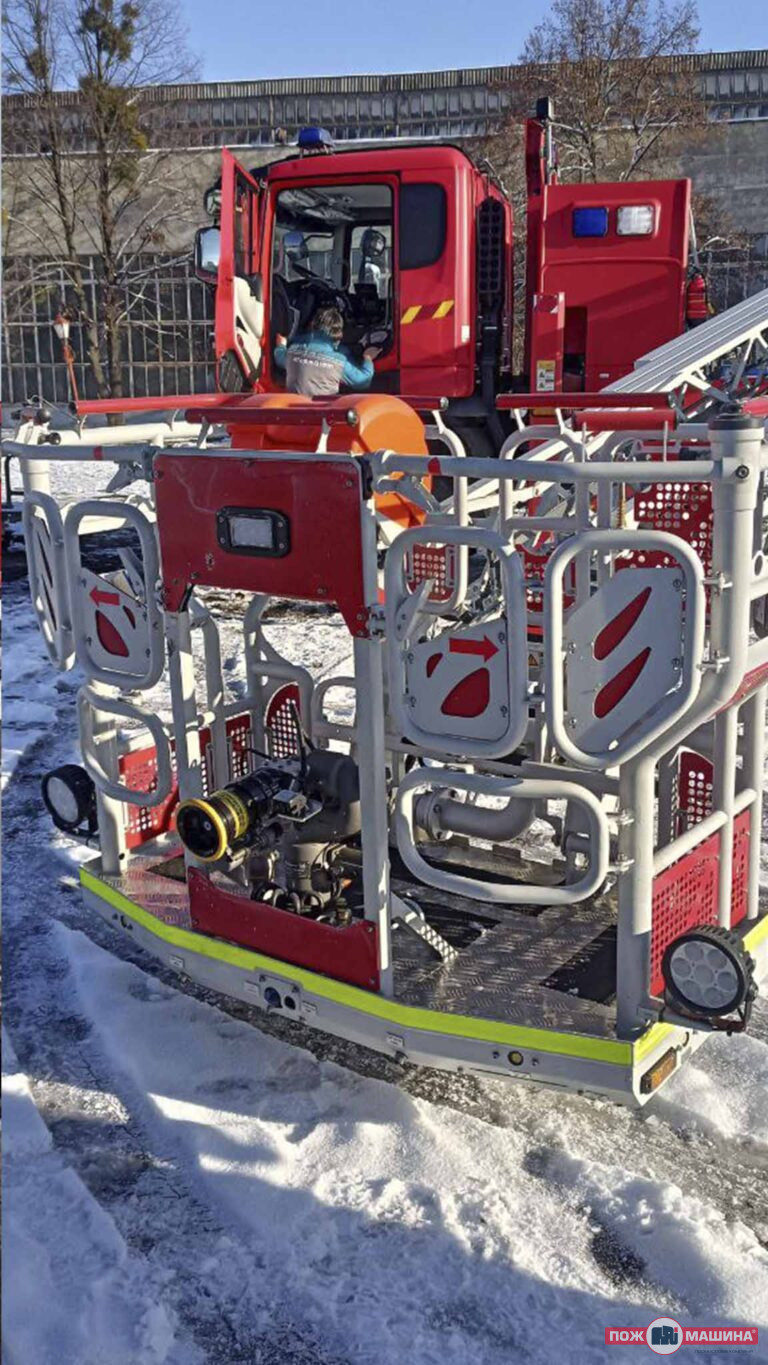

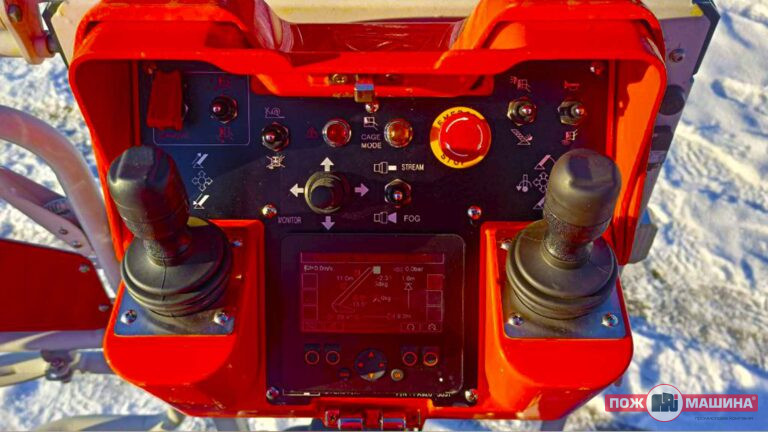

evacuating people from heights using a rescue cage (basket) equipped with a remote control panel;

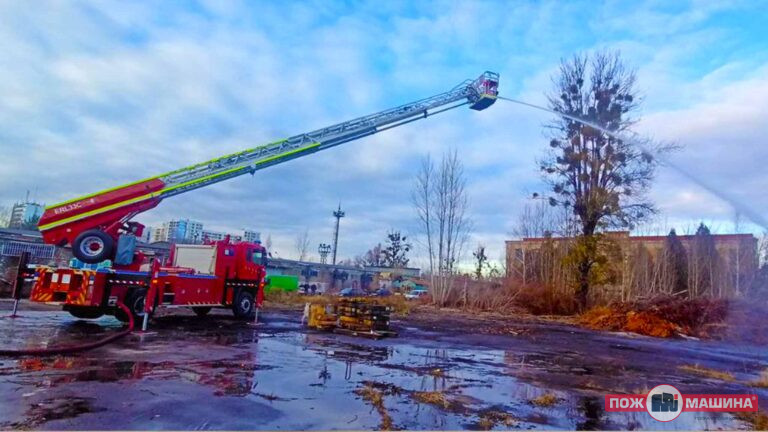

discharging extinguishing agents from the top of the ladder via a telescopic waterway running under the ladder sections and a monitor (nozzle);
acting as a crane with a lifting capacity of up to 2 tons when the ladder is fully retracted, among other functions.

Additional information

Weight	18,000 kg
Dimensions	10,500 × 2,550 × 3,990 mm
Base chassis	Tata Daewoo HH5CA
Speed (max), with full load, km / h	118
The number of places for combat crew, people	2

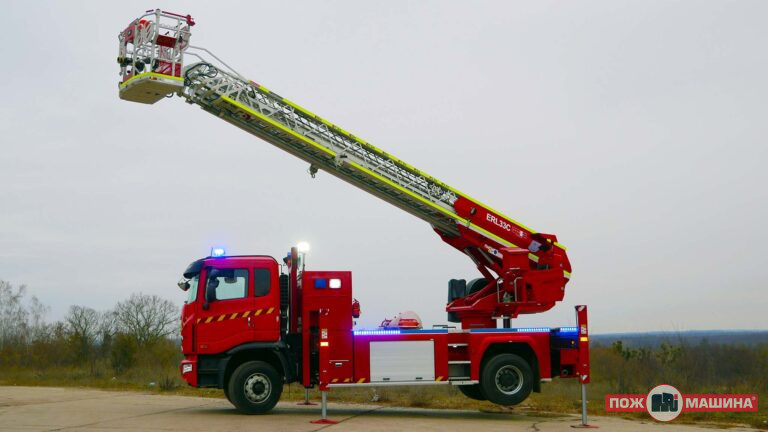

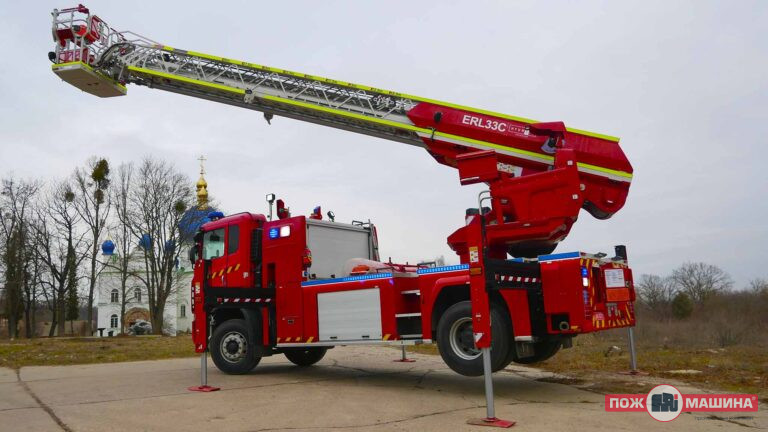

Maximum rescue height, m	31
The presence of a rescue cradle	included

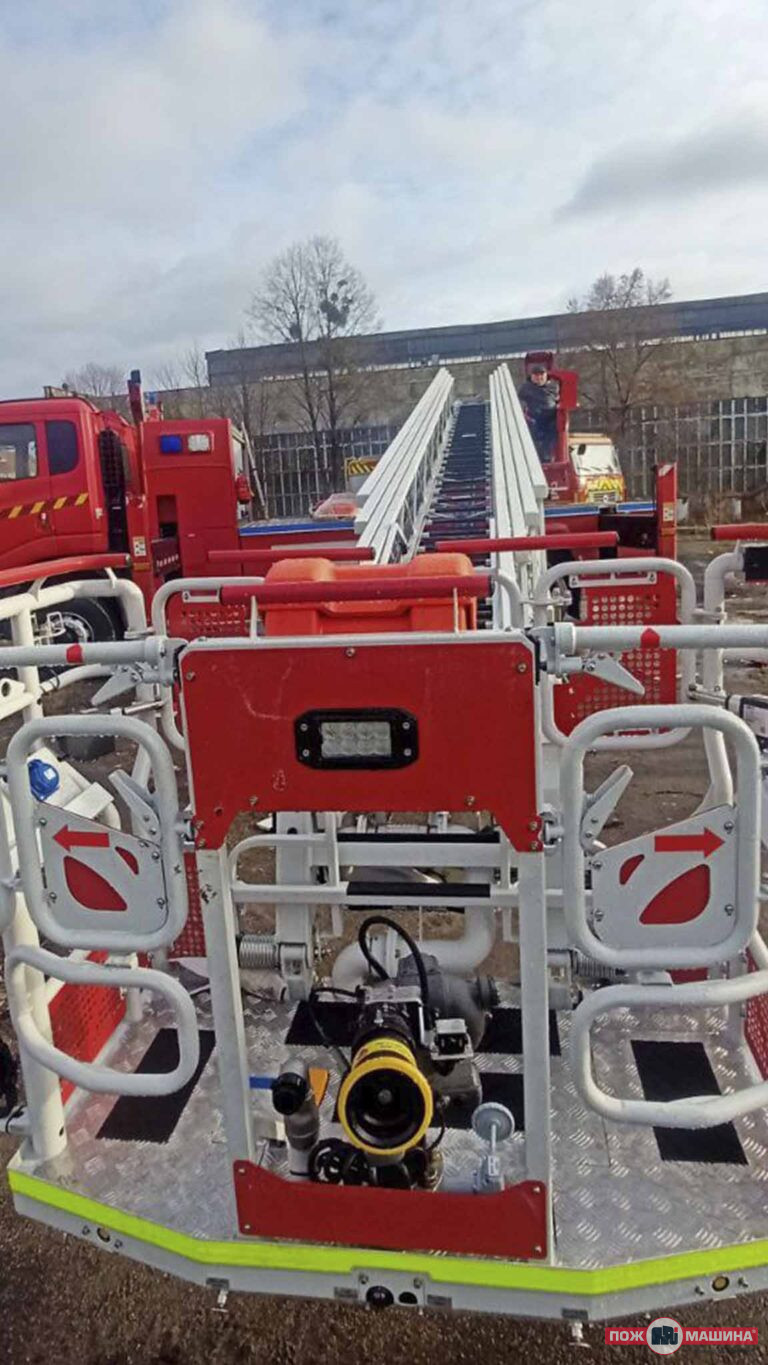

Rescue cradle equipment	Gun barrel, Intercom, Irrigation system, Ladder control system
Maximum load on the rescue cradle, kg	300
Autonomous emergency drive motor	Included
Standards	EN 14043:2014, EN 14043:2018
