AC-4-60 (150Е28W)-525I

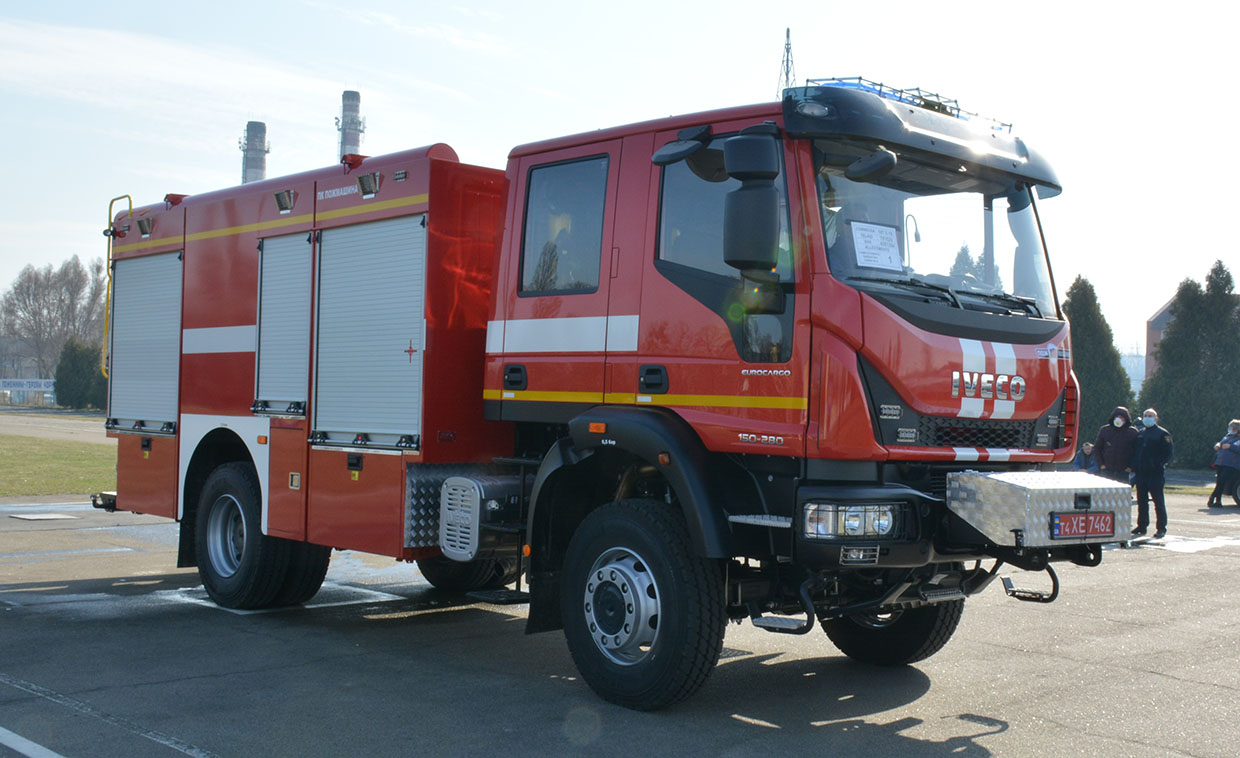

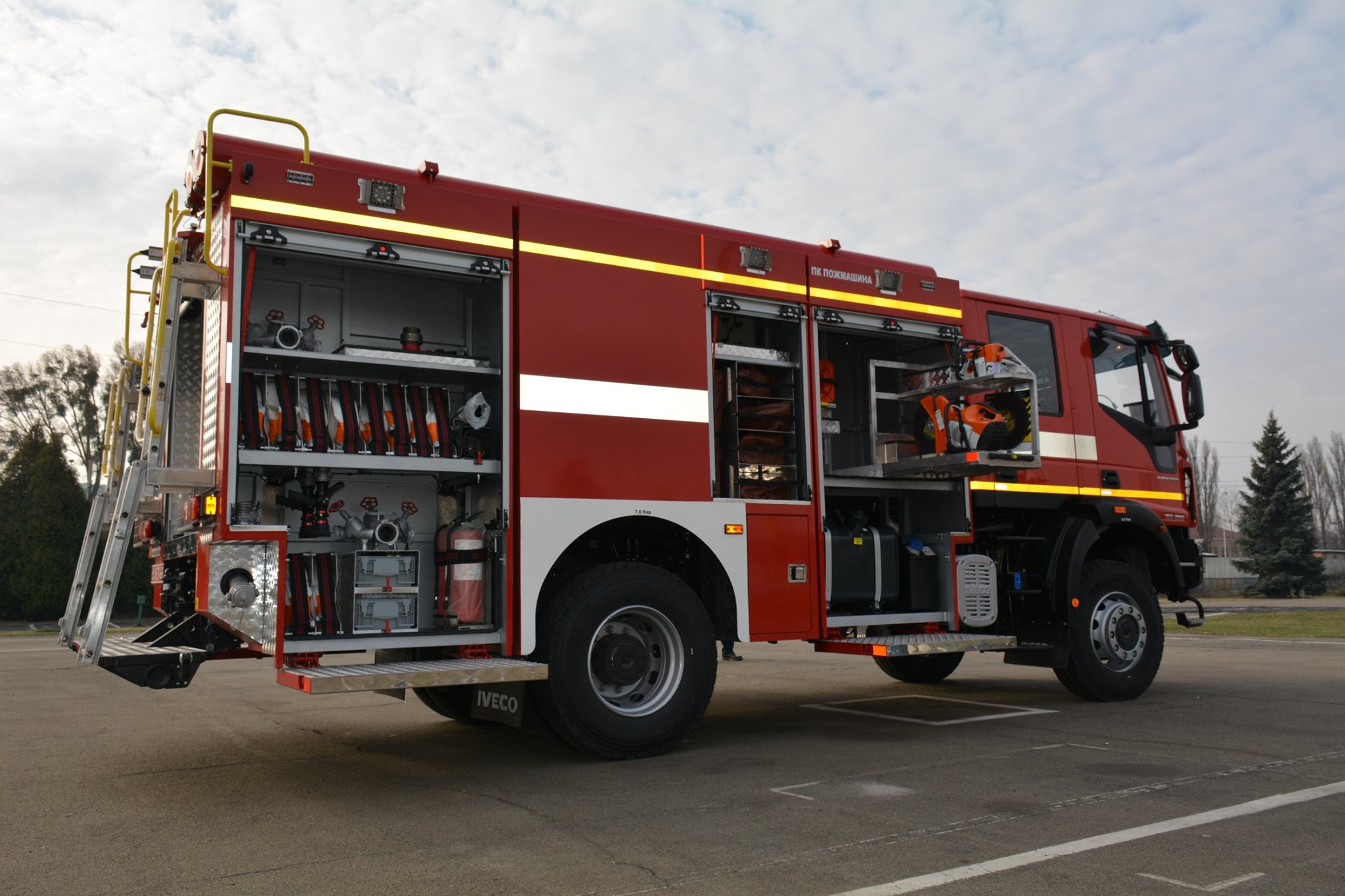

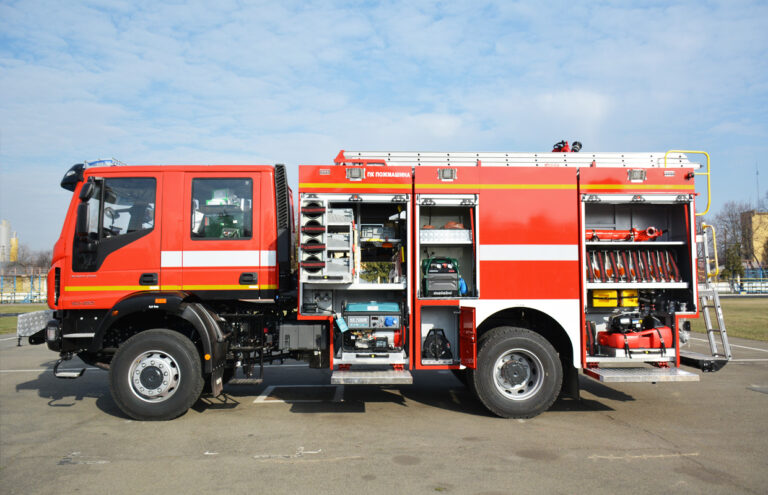

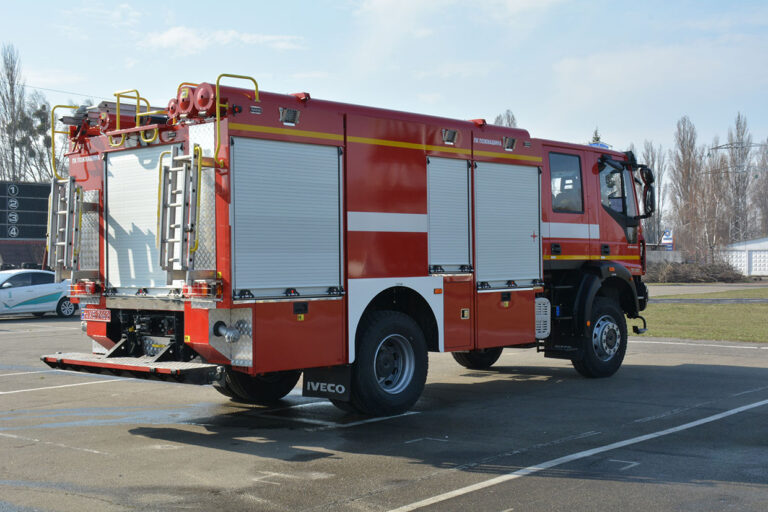

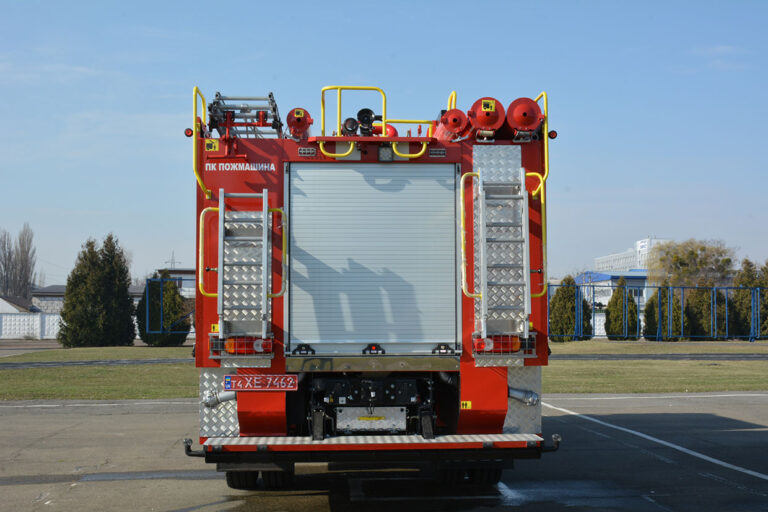

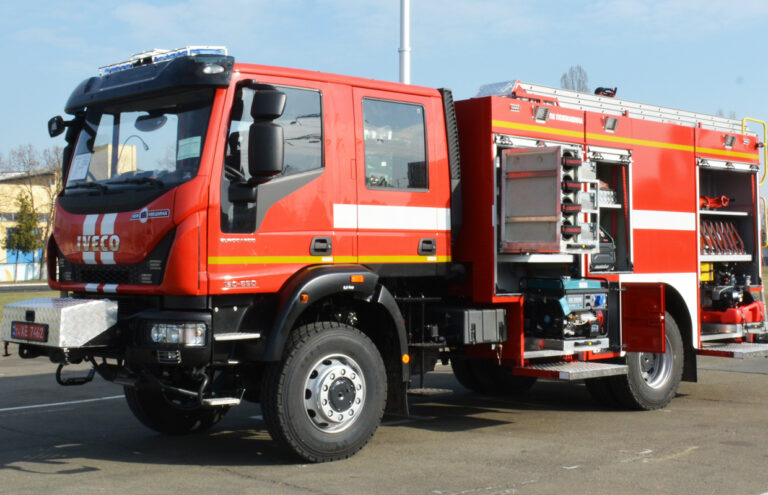

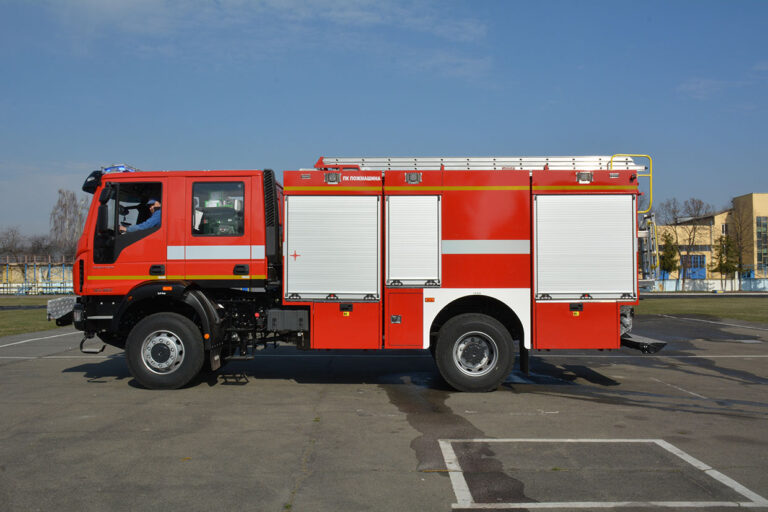

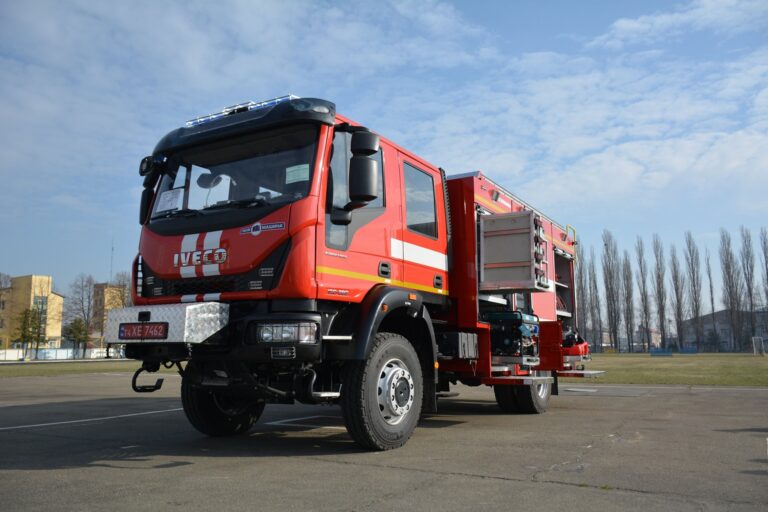

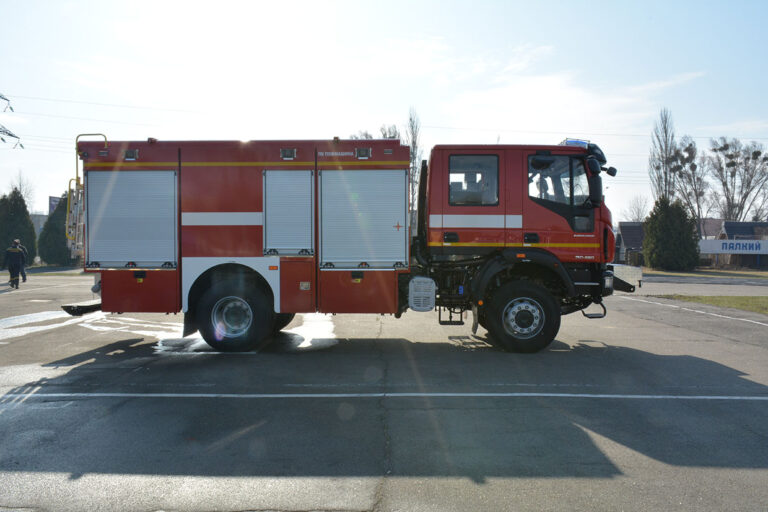

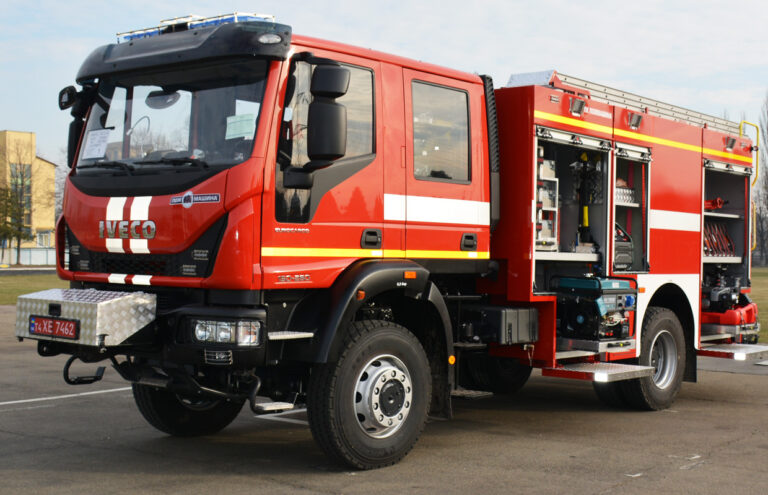

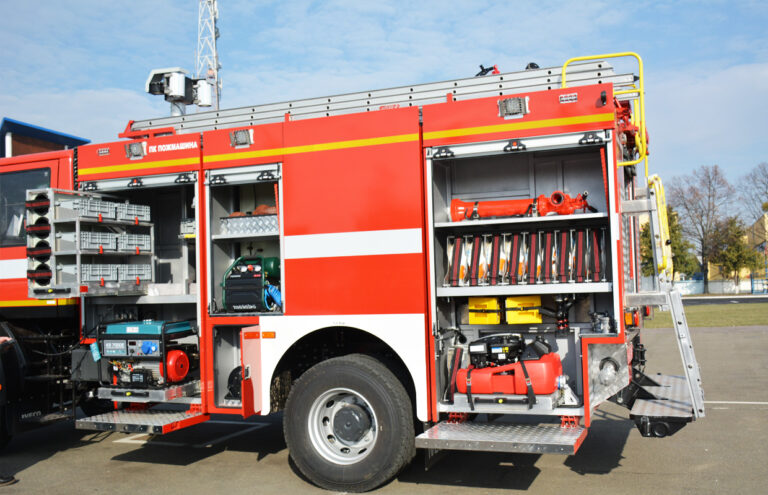

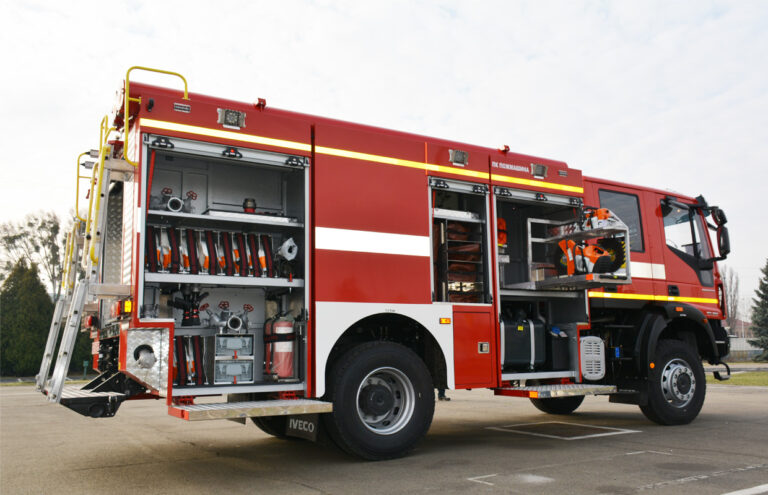

The fire truck FT-4-60 (150E28W)-525I is intended for transportation of personnel of operational calculation, extinguishing agents and fire-fighting equipment (PTO) and emergency rescue equipment (ARO) for extinguishing fires and carrying out fire-rescue works.
The tanker truck can be used in cities, rural settlements, industrial areas by units of the fire department as a stand alone combat unit, or as a pumping unit when operating "pumping" with one or more other tanker trucks.
Technical characteristics
Additional information
| Base chassis | Iveco Eurocargo 150E28W MLD Cab |
|---|---|
| Wheel formula | 4х4.2 |
| Maximum engine power, kWt (h.p.) | 205 (278) |
| Speed (max), with full load, km / h | 100 |
| The number of places for combat crew, people | 1 +6 |
| Water supply, m3 (l) | 4 (4000) |
| Type of water filling system | Autonomous, semi-automatic with vane electrically driven pump |

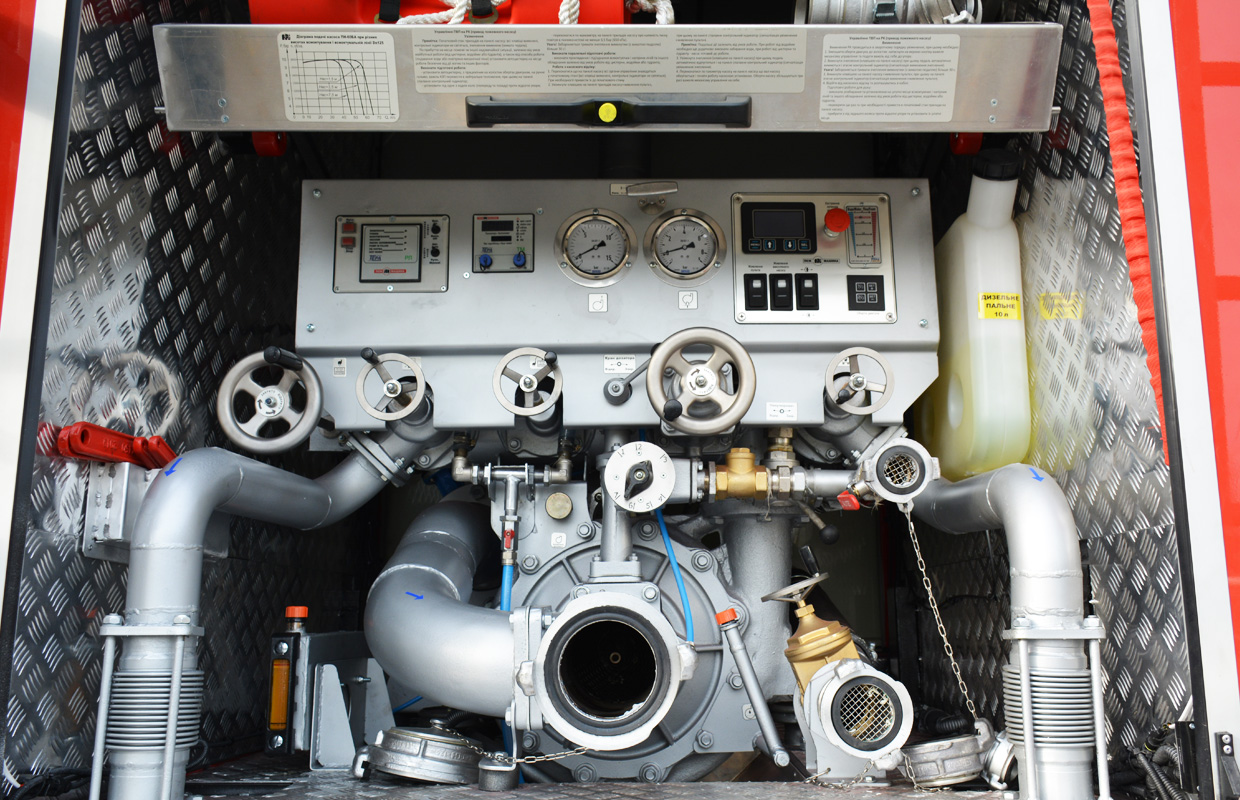

| Pump | centrifugal PN-60B-R-R |

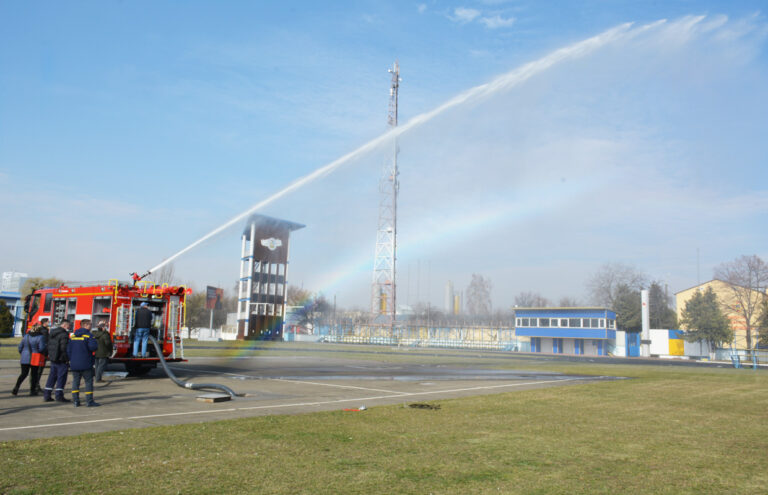

| Pump capacity, l/min (l/sec) | 3600 (60) |
| Pump head, m | 100 |
| Maximum geometric suction lift, m | 7,5 |
| Duration of filling the pump at the highest geometric suction height, s, not more | 60 |
Additional information
The fire truck is additionally equipped with:

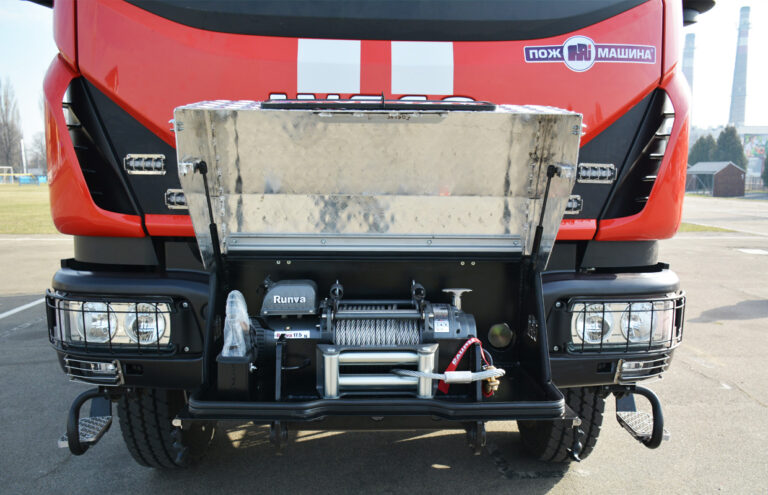

- Runva winch with a maximum tractive effort of 7.9 tons

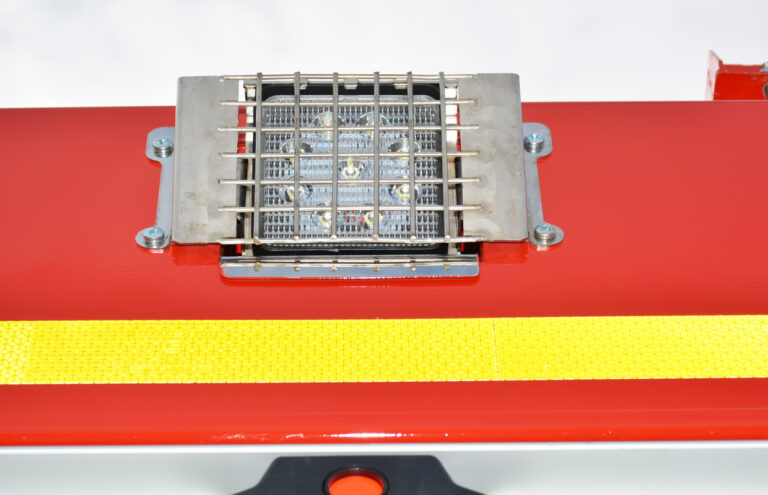

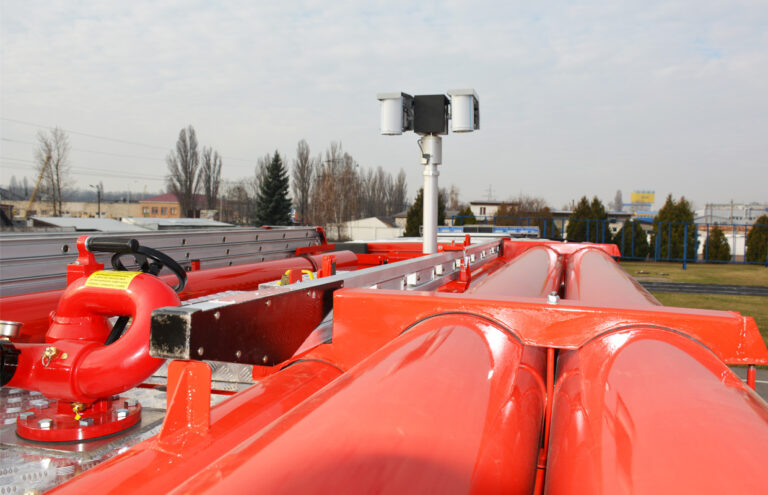

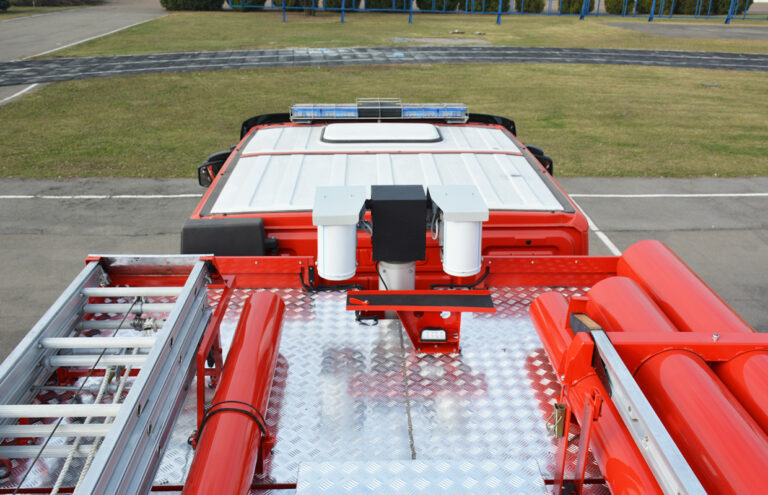

- Lighting mast to provide emergency lighting and space around the vehicle's AC with four LED spotlights 220V and 24V Elevation from ground level - 6 m.

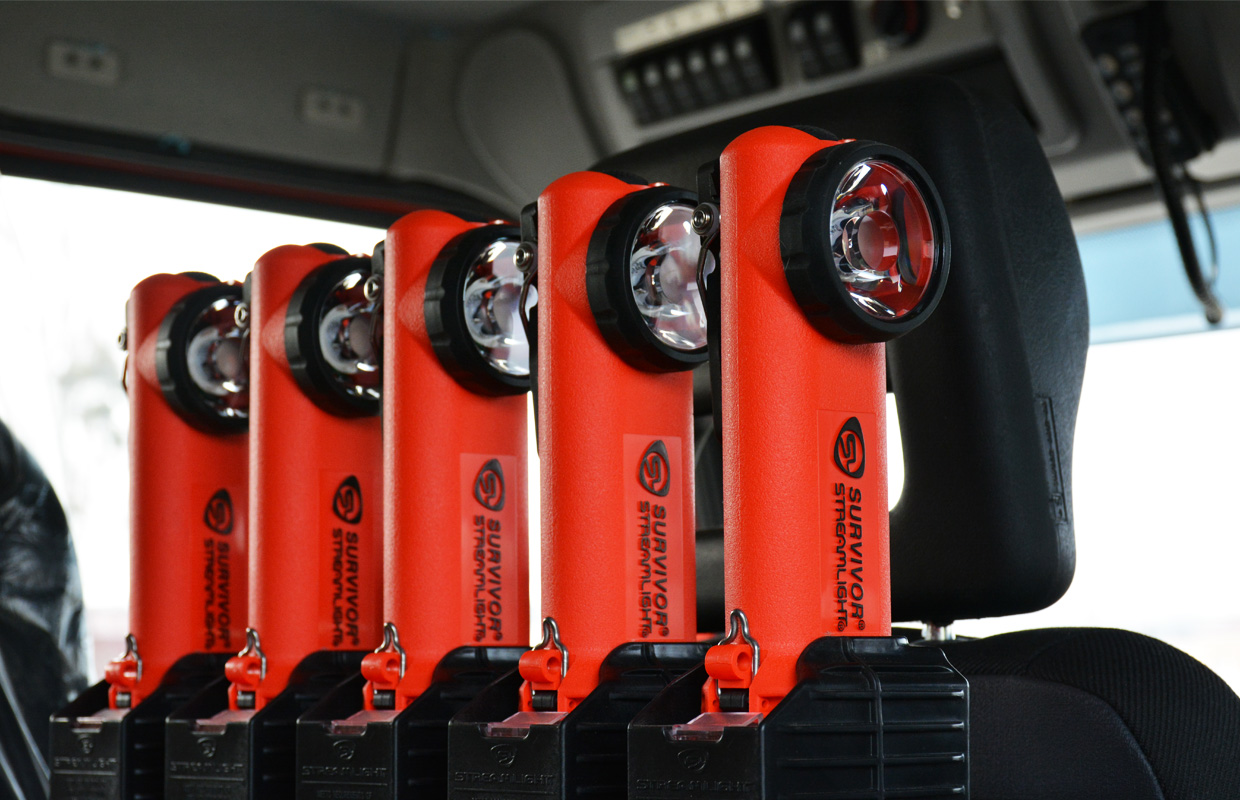

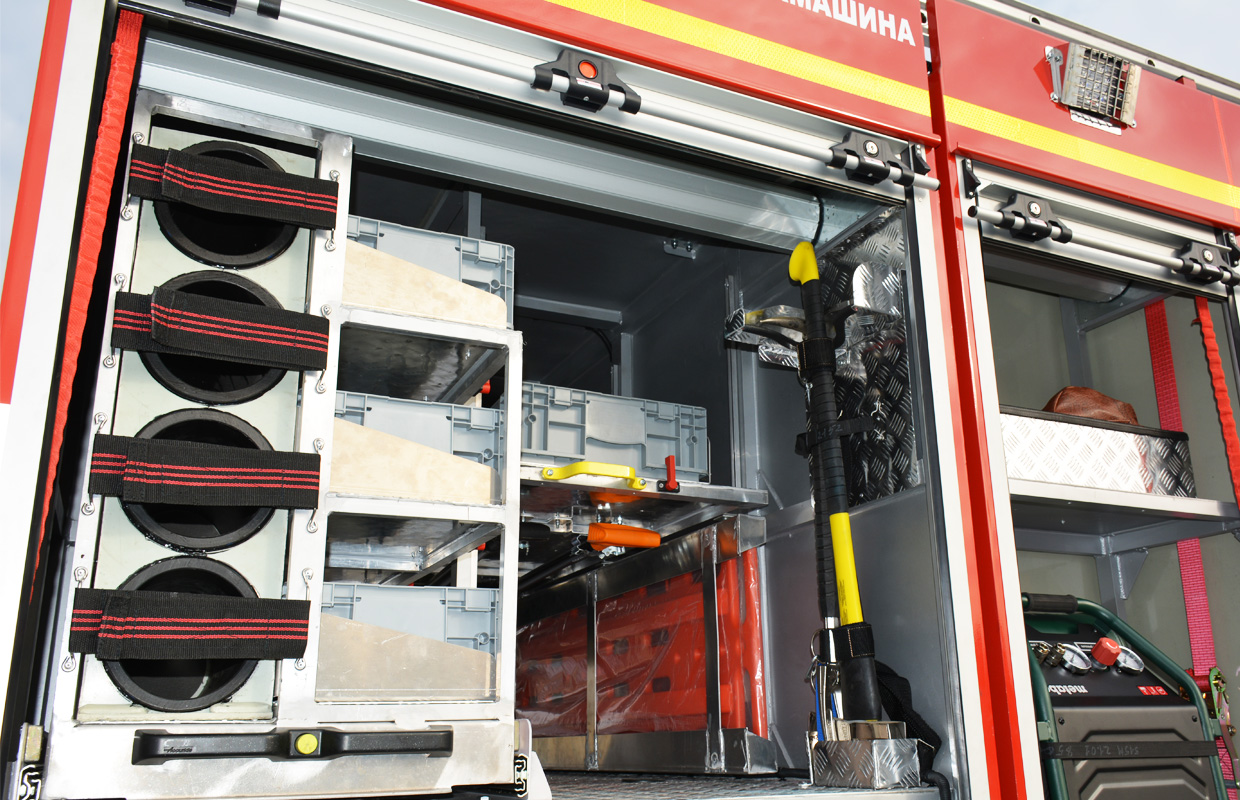

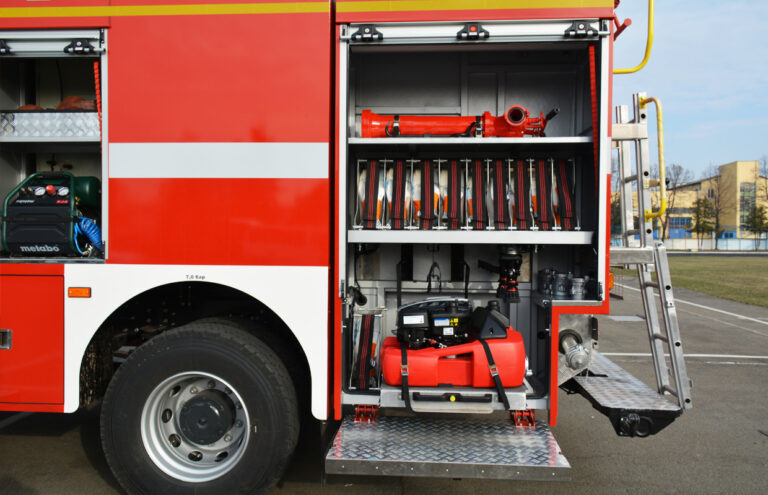

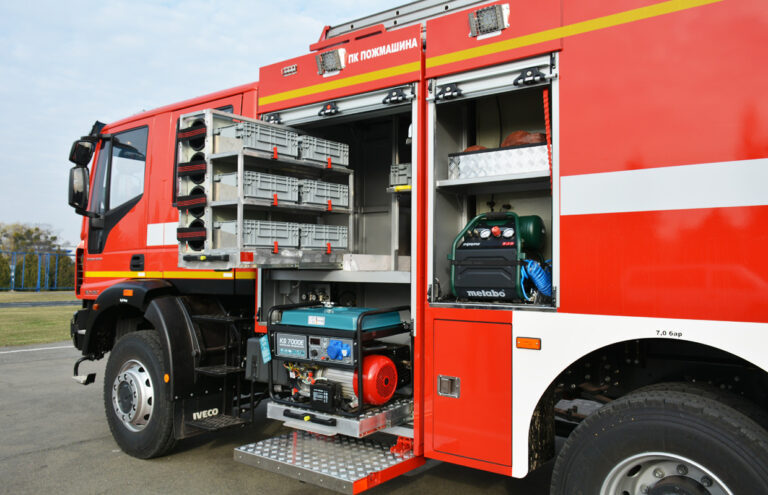

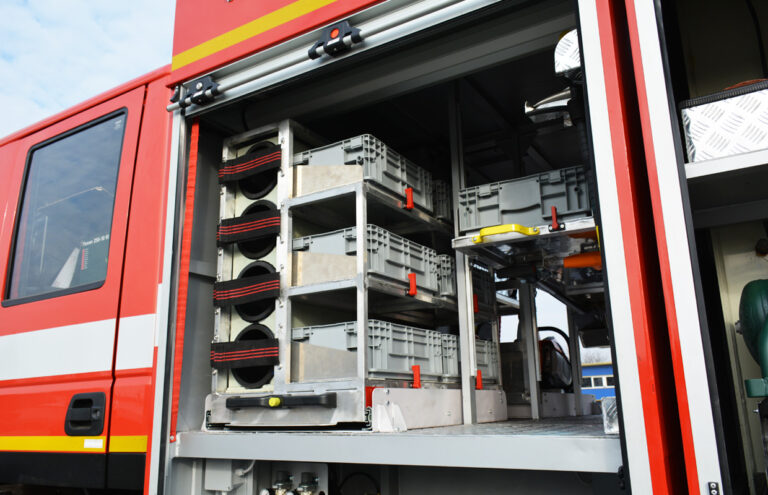

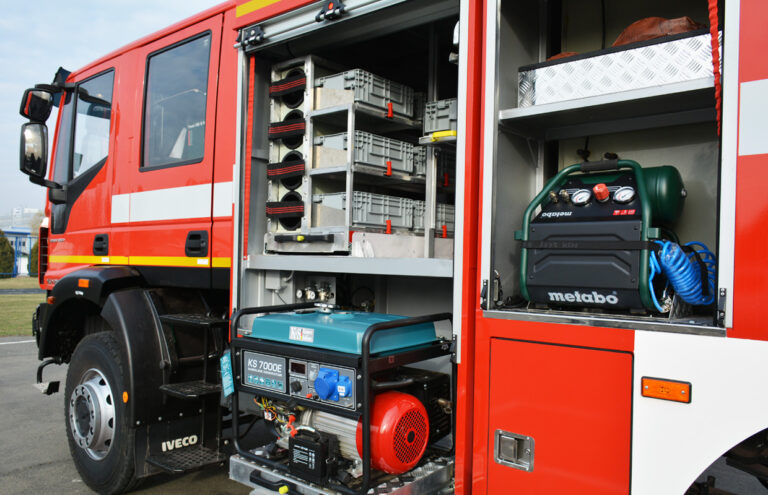

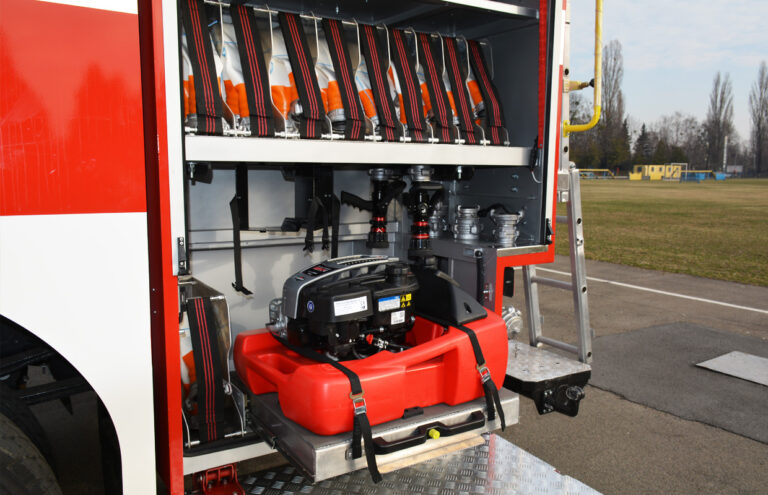

- Emergency and rescue equipment

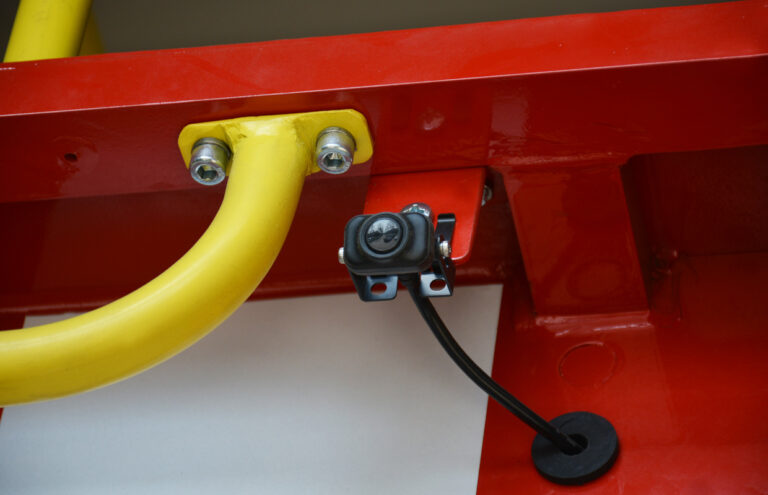

- GPS navigation and video recording system, which consists of a GPS module with a built-in navigator and video recorder, as well as a connected rearview camera.
