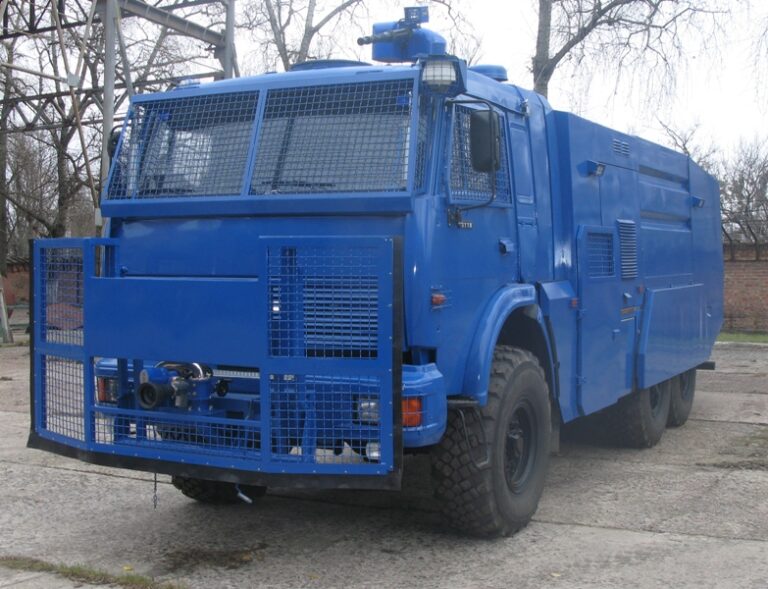

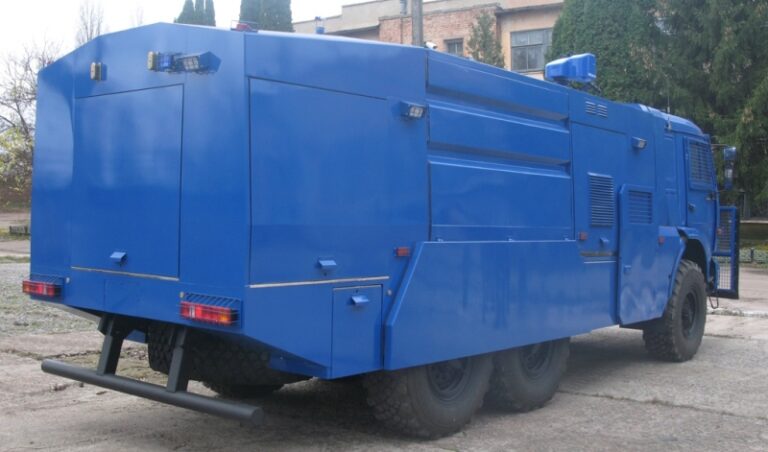

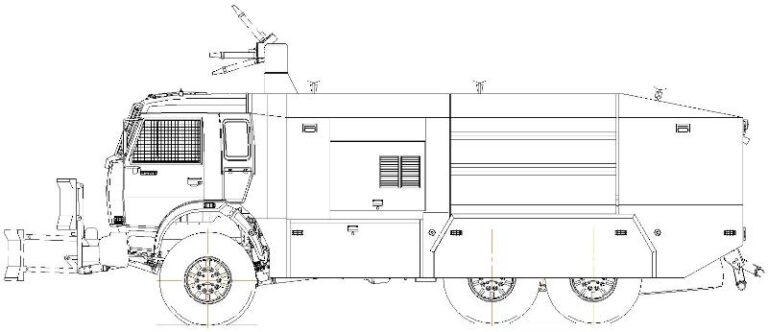

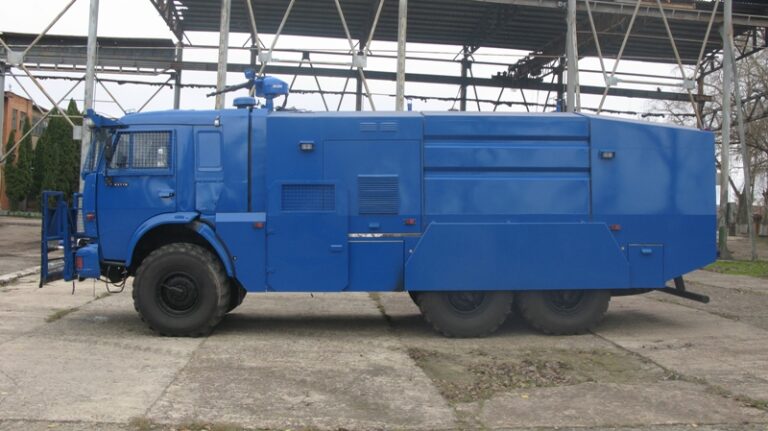

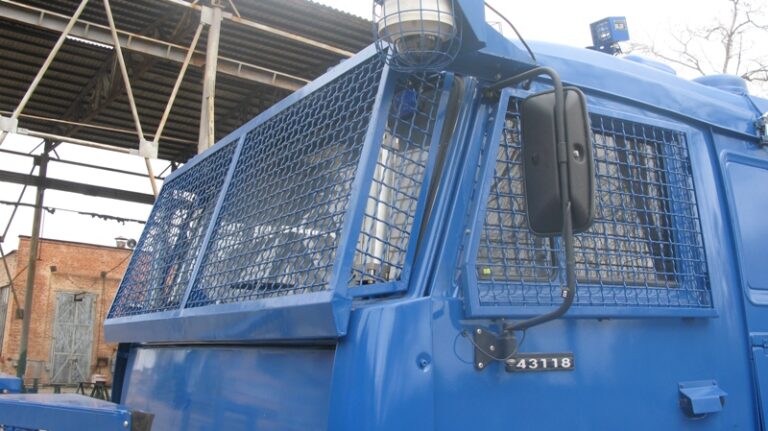

Water jet special truck АВС-50 (43118)-285.01 is designed for counteraction to the groups of persons defiat a public peace, prevention and control of unauthorized demonstrations, by affecting them streams of water and other special facilities, " marking" of citizens, by splashing on them mixtures of water with dye, video and photographies and serves for delivery to destination of crew, water, and also other special facilities. In case of necessity the truck can be used as a fire-fighting vehicle.

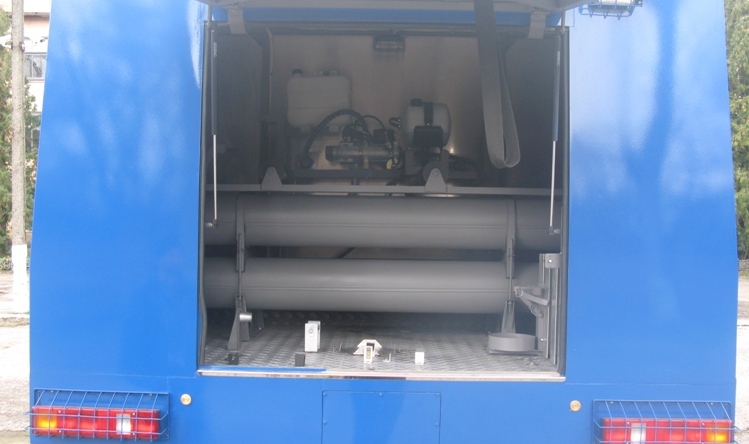

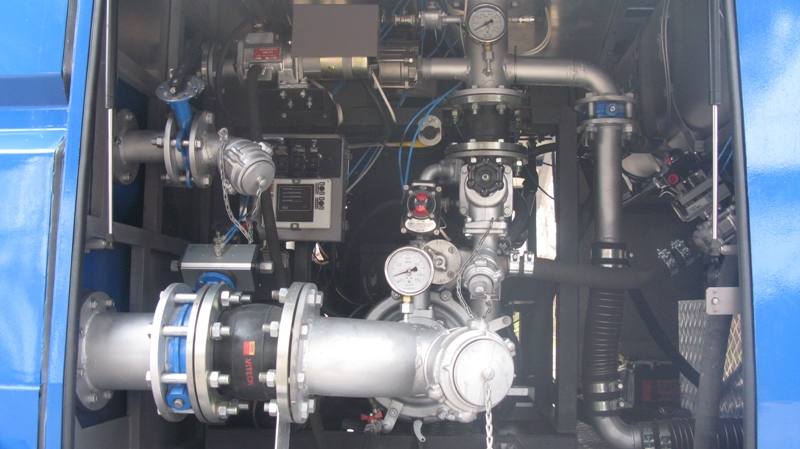

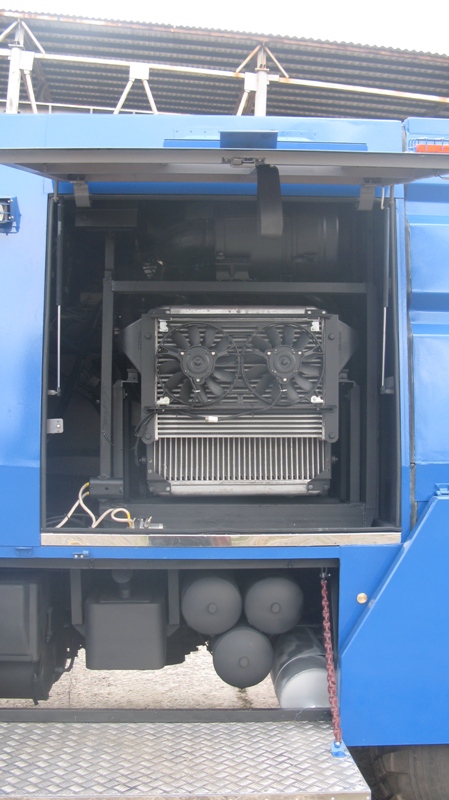

Mass of the car with full load, kg | 20780 |
---|---|
The number of places for combat crew, people | 3 |
Overall dimensions (length: width: height), mm | 9200/9800:2500/2600:3750 |
Water supply, m3 (l) | 6,0 (6000) |
Tank for dye | 0,3 (300) |
Tank for active mixture | (tear gas) 3 pcs. 0.027 m3 (27 l) – 0.081 (81) |
Frother, not less | 0,15 (150) |
Pump capacity, l/min (l/sec) | 10 bar and suction height 1.5 m, l / min (l / s), not less than 3000 (50) |
Pump head, m | 100 (1.0 MPа / 10 bар) |
Maximum geometric suction lift, m | 7,5 |
Duration of filling the pump at the highest geometric suction height, s, not more | 60 |
Frother Dispenser | water jet ejector |
Frother dispenser,% | 6% |
Type of water filling system | autonomous, vacuum pump, slide type, electrically driven |
Engine of self-contained drive of fire-fighting pump and system of remote control | MMZ D-245.30 type diesel with turbocharging |
Power, kWt | 110,2 (149,8) |
fuel supply | from tank chassis |

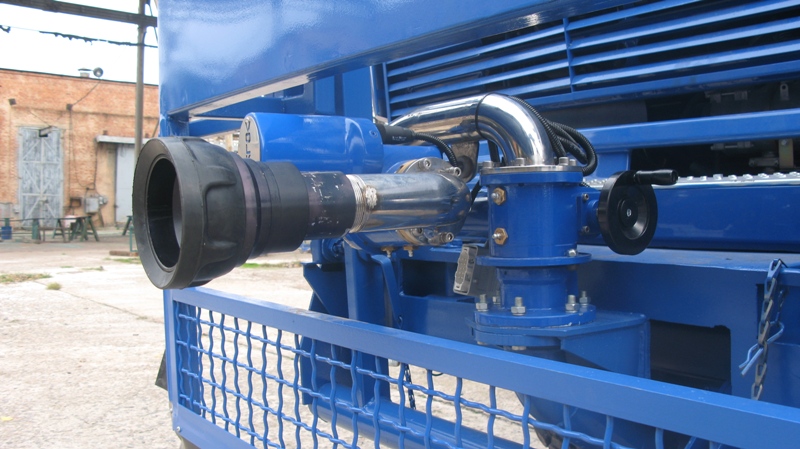

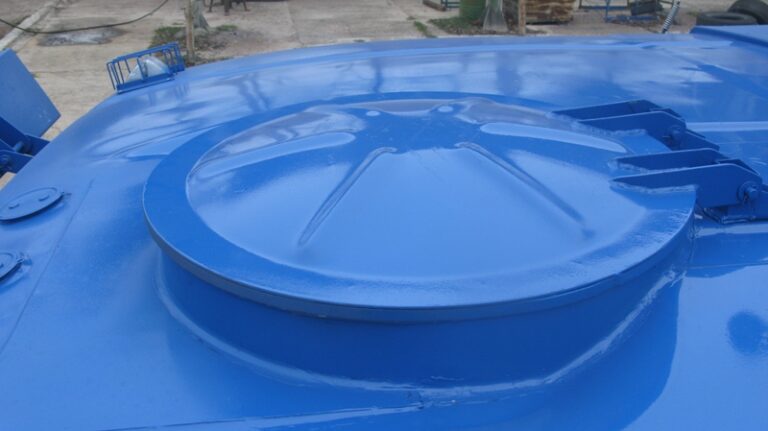

Fire monitors | upper 1pcs. |
nominal flow rate, l / s | 2000 (33) |
horizontal rotation angle | 350 |
angle of rotation in the vertical plane, degree | from -16 to +68 in front, left and right / from +4 to +68 behind |
rotation speed, deg / s, not less than | 18 |
Controlling the fire monitors | remote from the cockpit, electric installation location roof body |
jet feed range | 60 |
water supply at a distance of 10 m from the car | secured in front, left and right |
The composition of the jet | water, water and dye |
jet feeding types | continuous |
Trunk bumper | 1 pcs. |
nominal flow at a pressure of 1 MPa (10 bar, l / min l / s) | 1200 (20) |
horizontal rotation angle | 175 |
rotation speed, deg / s, not less than | 18 |
Controlling the fire monitors | remote out of the cab, electrical installation location front bumper |
the location of the water jet at a distance of 15 m from the car at a height of 1 ÷ 1.2 m | is provided |
The composition of the jet | water, water and dye |
jet feeding types | continuous |
The composition of the jet | jet feed |

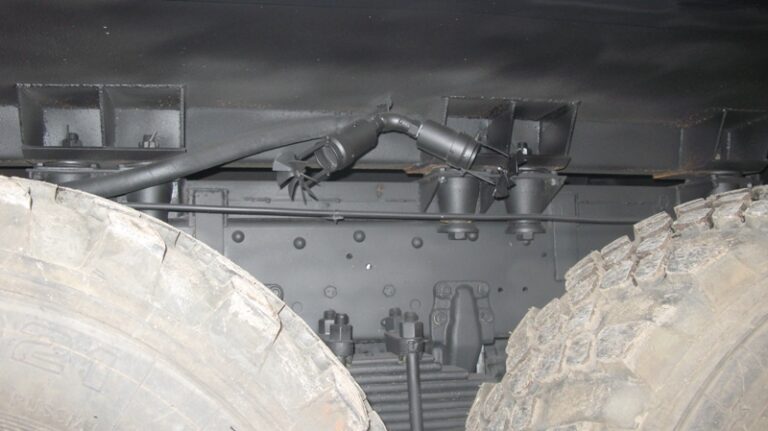

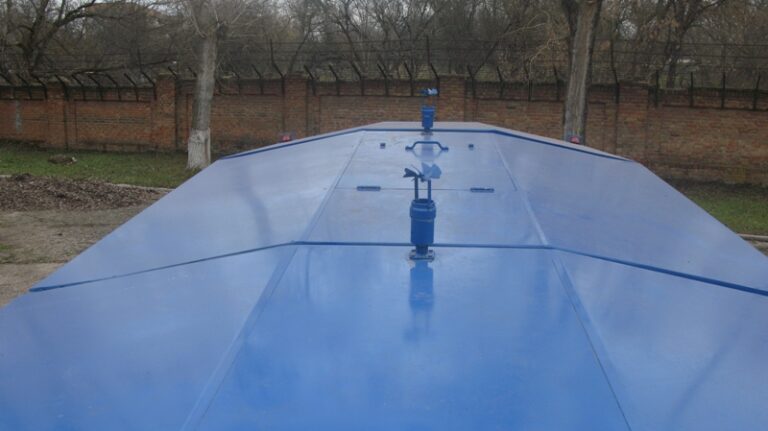

number of nozzles, pieces | 3, 6 over the wheels |
flow rate at a pressure of 0.8 MPa (8 bar (kgf / cm2, l / min (l / s), no less than | 60 (1) |
The composition of the jet | tear gas |
number of nozzles, pieces | 10 |
spray angle, hail | 90+10 |
range of the jet, m, not less | 2,5 |
nozzle placement | 2 pieces – in front; 2 pcs. – behind; on 3 pieces – on the left, on the right |
Obstacle removal system | True |
CCTV and recording system | True |
Additional Information

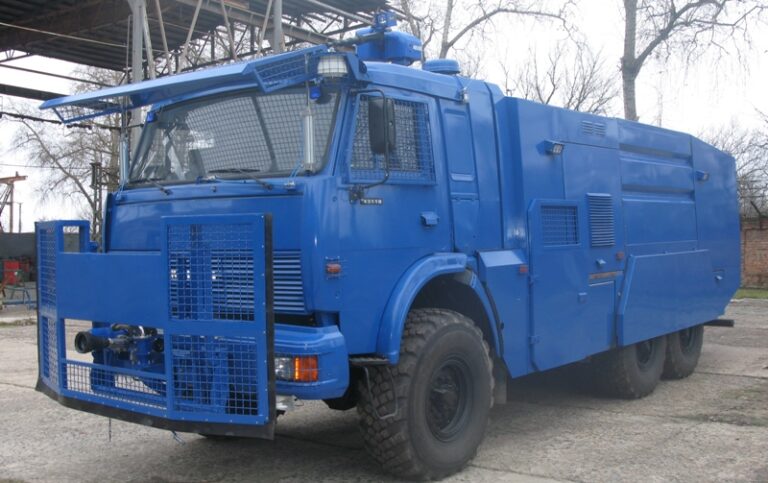

System of clearing obstacles:
Front barrage device is installed in front of truck’s cab and it is provided with remote control drive of lifting and lowing ( driving into operation position) It provide clearing of obstacles with frontal loading till 1 ton) Remote control (from cab)- electrically-pneumatic type. Executive mechanisms of hydraulic type. Arrangement of barrage device does not block front headlights.

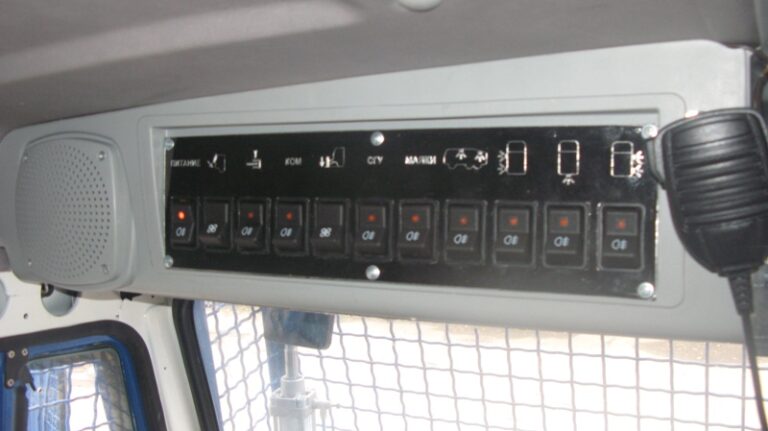

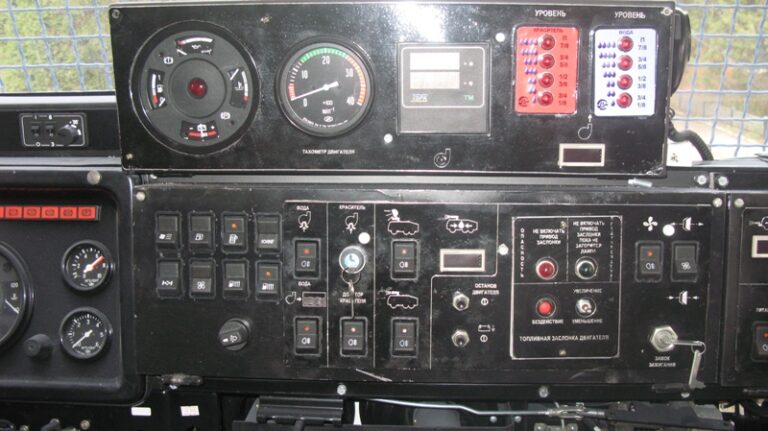

A control stand is set in cab in zone of maintenance of driver.
System of videosupervision and record
It consists of : chamber (main) and microphone installed at upper monitor and microphone installed at upper monitor, devices of digital record and reporducing, two monitors, chamber on cab and two control stands.
A management by the orientation of basic chamber is provided through corresponding management by monitor on that it is set, remote control(from cab) – electrically driven.
An additional chamber on truck’s cab provides control of zone around truck, not dependency upon position and work of upper monitor. Management by the functions of chamber is remote control type (from driver’s cab) – electrically driven. Control stands are set in cab in the zone of maintenance of commander and operator.
System of spraying active mixture (tear gas):
