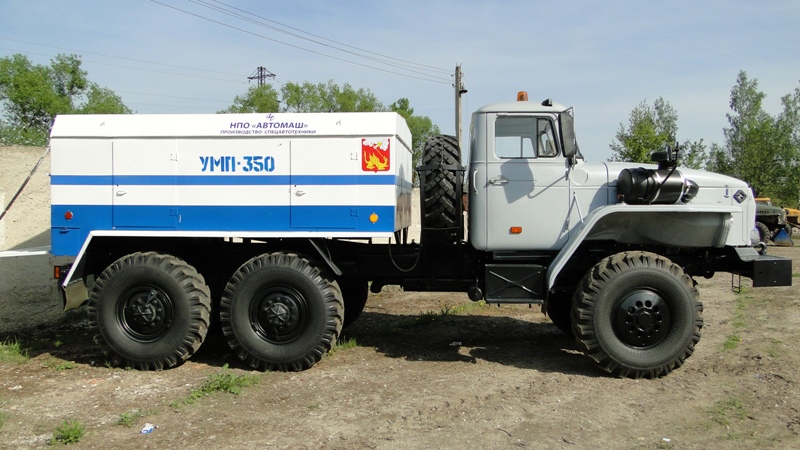

Unified Motor Heater УМП - 350 - 131 – ПОЖМАШИНА

Unified Motor Heater УМП- 350 -(131) is intended for heating of aviation engines with hot air, heating of airplane and helicopter cabin at the environment air temperature from -50°С till +10°С.

Specifications

Base chassis

ЗИЛ, КАМАЗ, УРАЛ

Mass of the car with full load, kg

2300

Overall dimensions (length: width: height), mm

3800:2300:1700

Heat output, kcal / h (kW)

350 000 (407)

Air temperature at the inlet to the hoses, ° С

+ 120

Air temperature at the outlet of the sleeves, ° С

80÷115

Duration of work on fuel reserve (at nominal mode), h

12

Capacity of fuel tanks, l

2х300

Type of fuel consumed

T-1, TS-1 according to GOST 10227-86 or diesel according to GOST 305-82

Fuel consumption, kg / h: on starting mode

12+3

Fuel consumption, kg / h: in operation

45÷50

Fan feed at 2400 rpm, kg / h

16 000

Air pressure at the fan outlet at 2400 rpm, Pa

3500

Air velocity at the outlet of the sleeves, m / s

20÷25

Air pressure at the outlet of the hoses, Pa

200÷300

Number of sleeves, pcs. / Sleeve Length, m

15/6000 diameter of a sleeve is 220 mm.

Sleeve connection

Ring Adapters

Wiring system

Single-wired, 24В

Fuel ignition

From the glow plug

Efficiency,%

85
