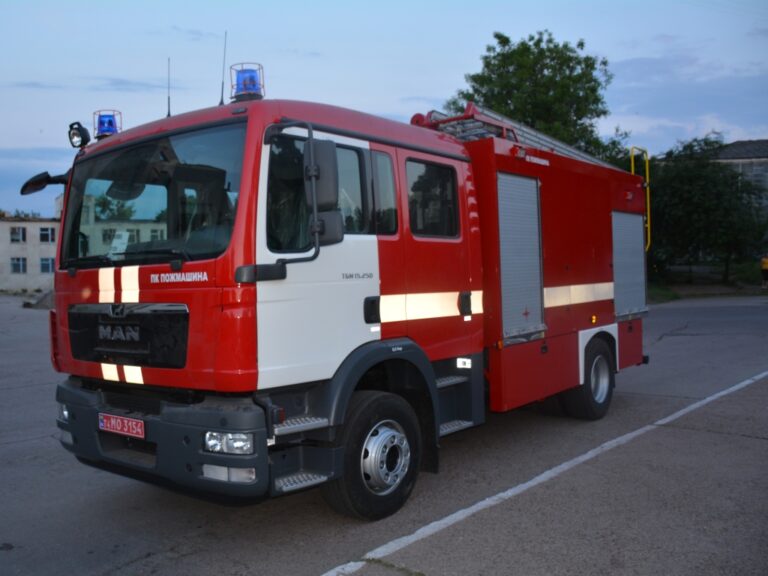

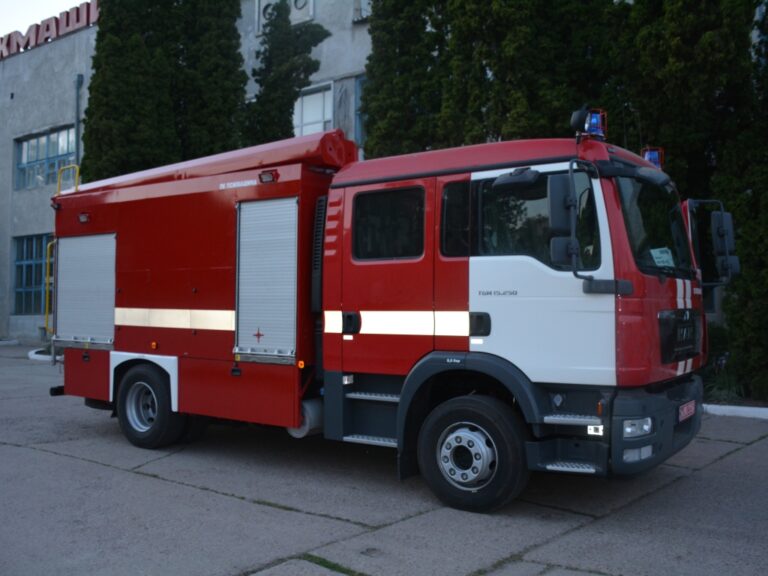

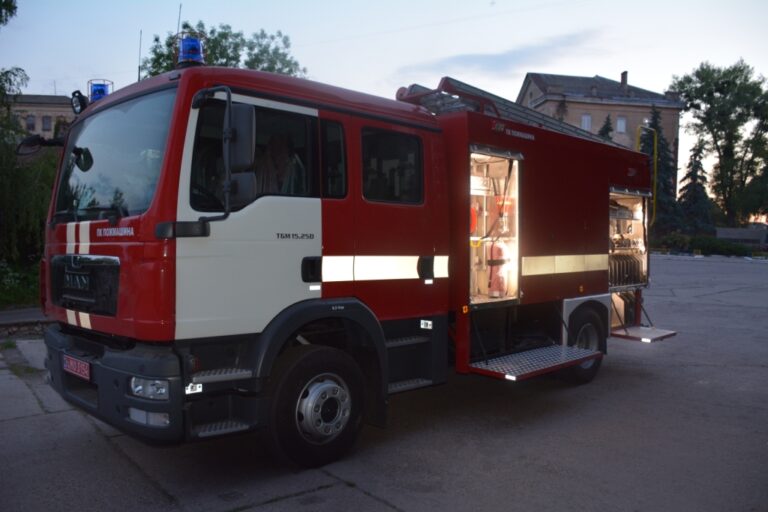

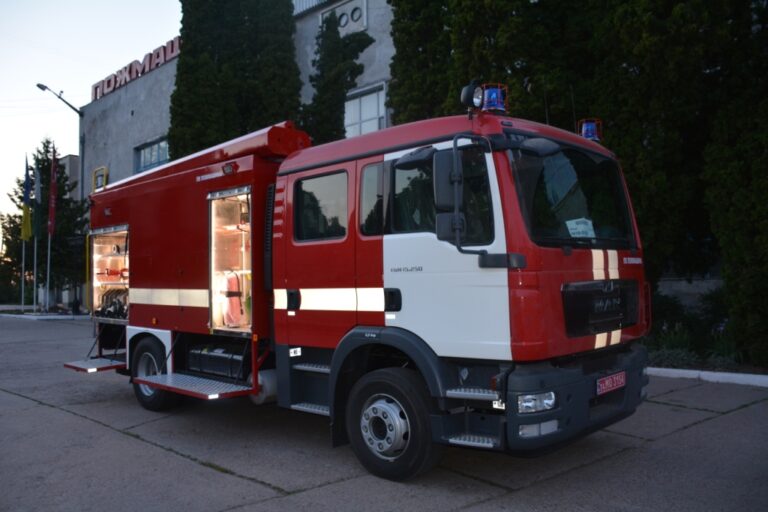

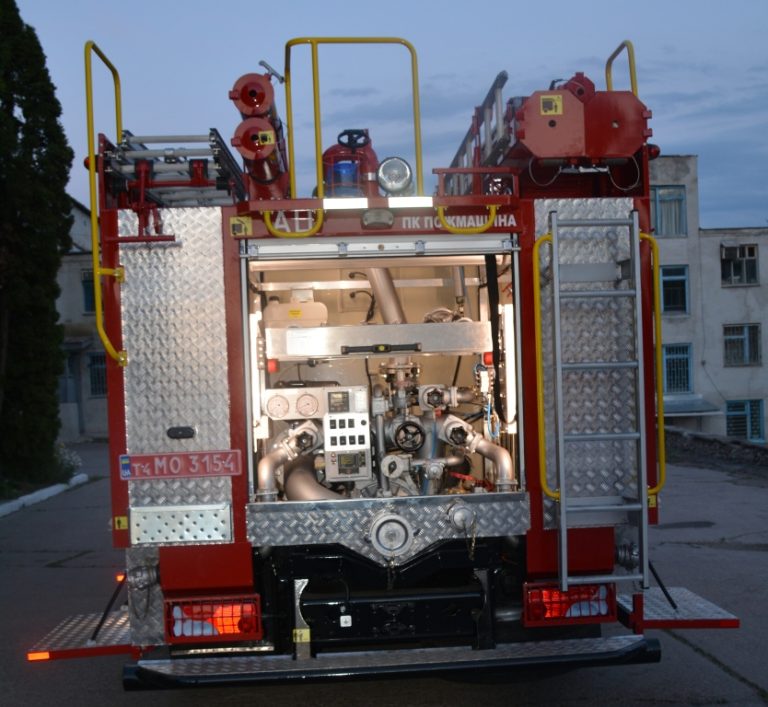

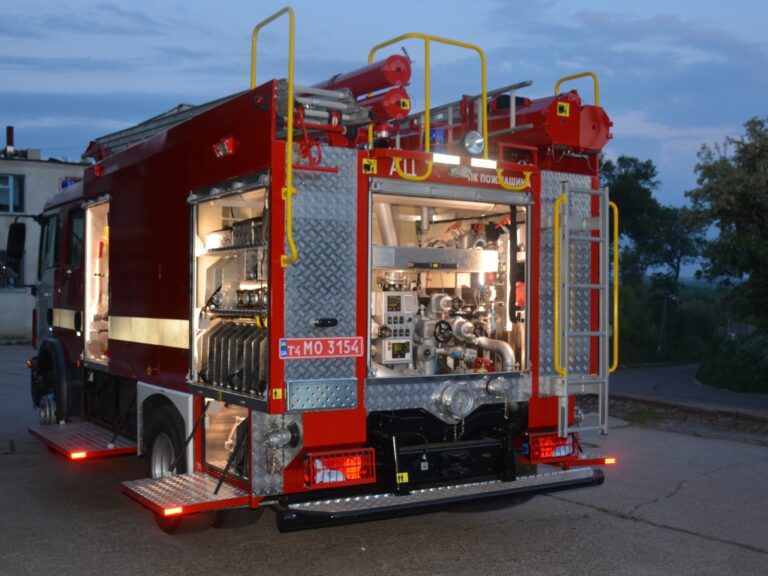

FT-60 (TGM 15.250)-164

Description

The fire truck FT-60 (TGM 15.250)-164 is intended for delivery to the fire site of the combat crew, fire extinguishing equipment, fire-fighting and technical equipment (PTV) and serves to extinguish fires with water and air-mechanical foam.

Specifications

Dimensions 7,500 × 2,450 × 3,250 cm
Base chassis

MAN TGM 15.250 4х2 BL

Maximum engine power, kWt (h.p.)

184 (250)

Speed (max), with full load, km / h

100

The number of places for combat crew, people

1 +6

Water supply, m3 (l)

4,7 (4700)

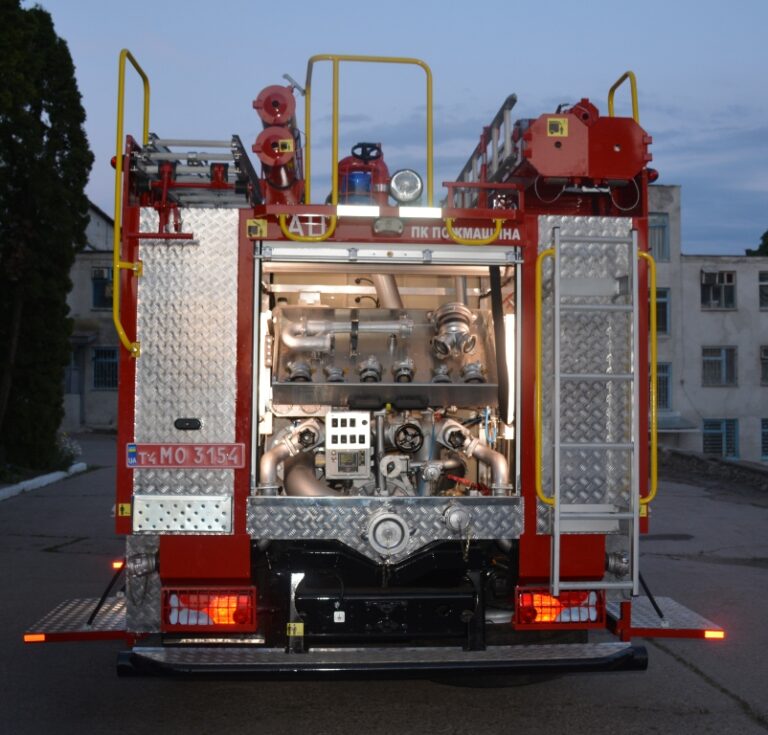

Type of water filling system

Autonomous, semi-automatic with vane electrically driven pump

Pump capacity, l/min (l/sec)

3600 (60)

Pump head, m

100

Maximum geometric suction lift, m

7,5

Duration of filling the pump at the highest geometric suction height, s, not more

30
