Description

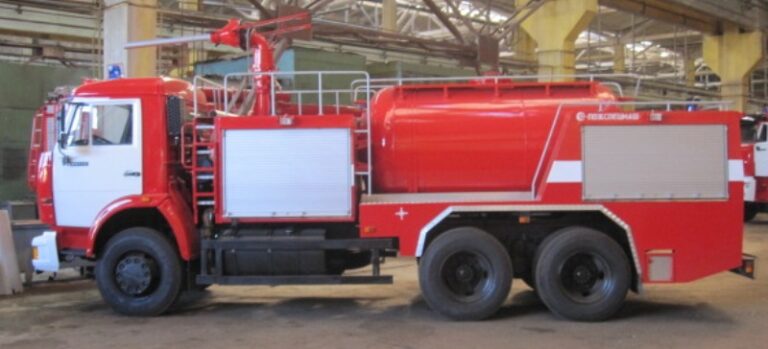

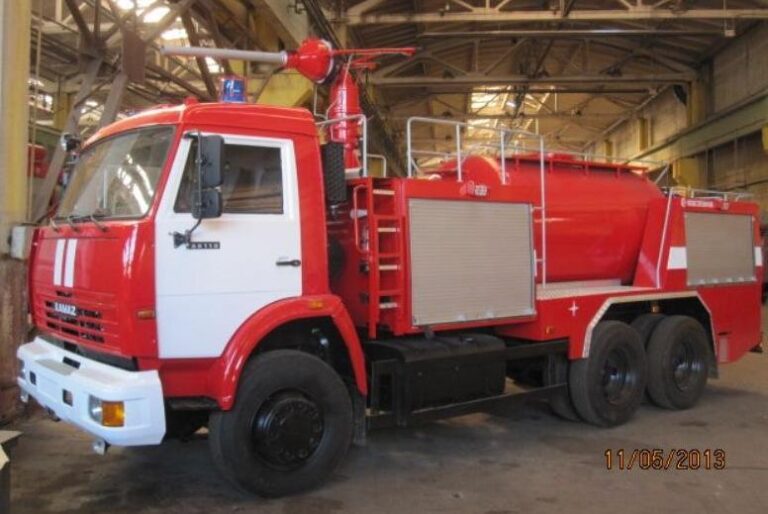

Powder fire-extinguishing vehicle is designed for: -delivery of crew, fire-extinguishing powder and fire-fighting equipment to the site of fire; -extinguishing fire of easy flammable liquids, gas fountain, as well as electrical installation at voltage 1000 V by means of delivery fire-extinguishing powder through monitor and (or) hand guns. Truck is designed for operation at areas with moderate climate (design У, УХЛ) at environment temperature from 233 К to 313 К (from -40 ºС to +40 ºС)
Specifications
| Mass of the car with full load, kg | 18300 |
|---|---|
| to the front | 5400 |
| on the back | 12900 |
| Curb weight, kg, not more | 13000 |
| The number of places for combat crew, people | 3 |
| Overall dimensions (length: width: height), mm | 8600:2500:3600 |
| powder, not menie | 5,0 (5000) |
| Brand powder | ПСБ-3, П-2АП, пирант АН и др. |
| Working pressure of the tank, MPa, no more | 0,4 (4) |
| working gas | air, nitrogen with a dew point not higher than 218 K (-55 ºС) at atmospheric pressure |

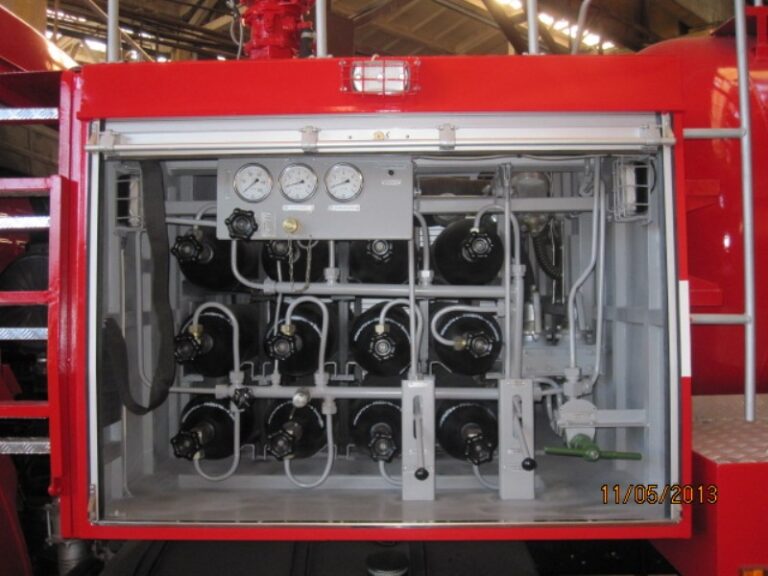

| amount of working gas | 12 cylinders of 0.05 m3 (50 l) |
| nominal pressure, MPa (kgf / cm2) | 15 (150) |
| the amount of unused powder residue, no more, kg | 250 |
| Fire monitors | Blunt powder trunk: number |
| with Dy 75 pacifier | 36 |
| with Dy 100 pacifier | 52 |
| jet feed range | 34 |
| horizontal rotation angle | 90 left and 90 right |
| angle of rotation in the vertical plane, degree | from -10 to +45 |
| Controlling the fire monitors | manual, front, rooftop |
| manual trunk | 2 pcs. pistol with locking device |
| hand barrel consumption, kg / s, not less | 3,2 |
| range of powder jet not less than, m | 15 |
| Length of pressure hoses, m | 6 / 120 |
| Base chassis | КАМАЗ-65115 |
| Chassis type | not all-wheel drive |
| Wheel formula | 6х4 |
| Type of wheels and tires | Disk, pneumatic, chamber |
| Tire size | 12.00 R20, 11.00 R20 or 11.00 R22,5 |
| Spare wheel | there is |
| Engine | 740.62-280 V8, diesel turbocharged |
| Environmental standard | Euro-3 |
| Power (max), kW (hp) | 206 (280) |
| working volume, l, not less | 11,76 |
| transmission | 154 mechanical. Mechanical, remote control, КАМАЗ 154 |
| number of gears (forward + backward) | 5+1, 2-range |
| Clutch | MFZ 430, 1-disk, with PGU |
| Front suspension | dependent, on two longitudinal semi-elliptical springs, with two hydraulic shock absorbers |
| Rear suspension | dependent, on two longitudinal semi-elliptic springs, of balance type |
| Brake system | brake mechanisms of drum type with pneumatic drive and ABS |
| Steering gear | mechanical, with hydraulic booster |
| Speed (max), with full load, km / h | 90 |
| Fuel tank capacity, l, not less | 350 |
| Maximum lift,% | 25 |
| Turning radius, overall, m | 10,0 |
| Towing device | rear |
| System voltage, V | 24 |
| batteries, pc. х В/А·ч | 2 х 12/190 |
