АЦ-7,0-60(43118)-254.02 – ПОЖМАШИНА

Description

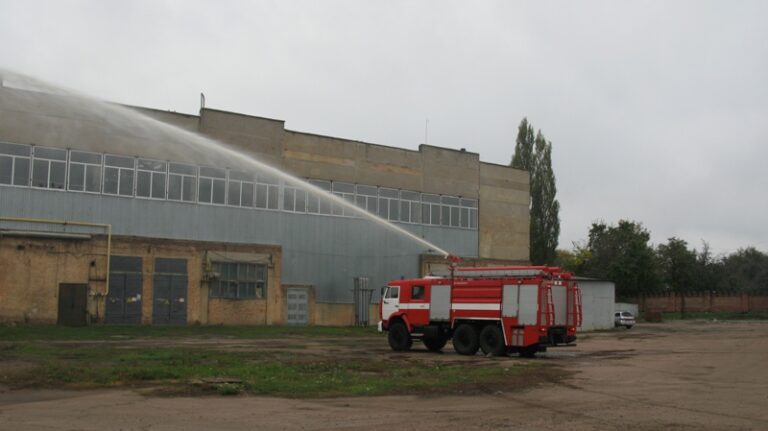

Fire-extinguishing tanker АЦ-7,0-60 (43118)-254.02 is designed for deliverung the fire-fighting crew and fire-extinguishing facilities to the iste of fire to extinguish fire by water or air-mechanical foam.

Specifications

Base chassis

КАМАЗ-43118

Wheel formula

6х6

Power (max), kW (hp)

191 (260)

Speed (max), with full load, km / h

90

The number of places for combat crew, people

6

Pump

VFPN-H 400

Pump feed, l / s

60

Pump head, m

100

Telescopic ram lift

stationary, with remote electric control

height of extension, mm, not less

320

water, m

60

foam, m

40

Water, not less

7 (7000)

Frother, not less

0,5 (500)

Type of water filling system

automatic vacuum system

Maximum geometric suction lift, m

7,5

Optional equipment

air conditioning electric winch on the front bumper generator

Overall dimensions (length: width: height), mm

9500:2500:3550

Mass of the car with full load, kg

20900
