AC-7-40 (5401Н2)-155.01

Description

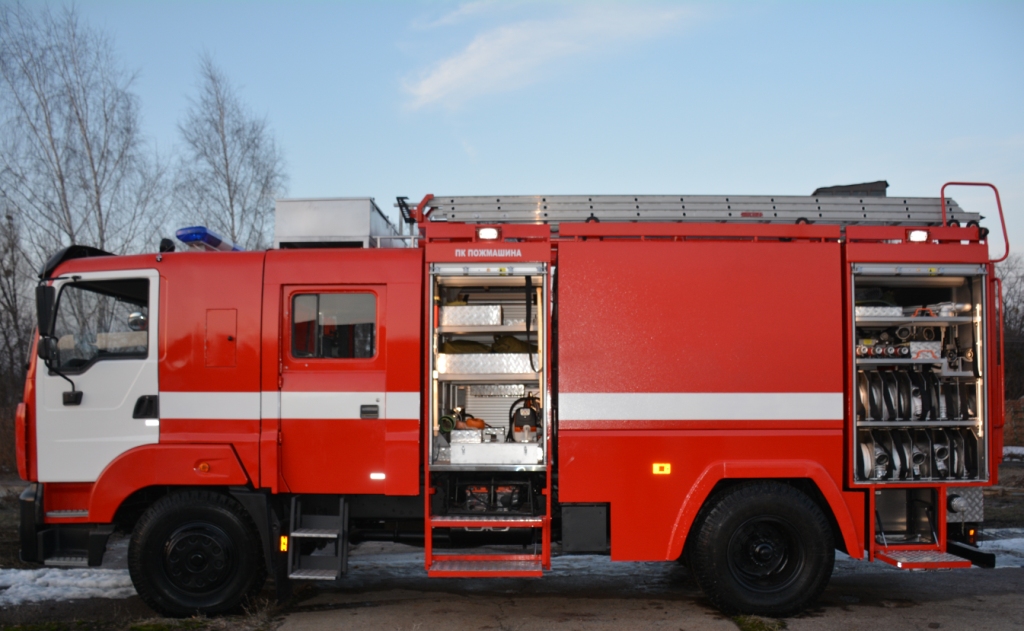

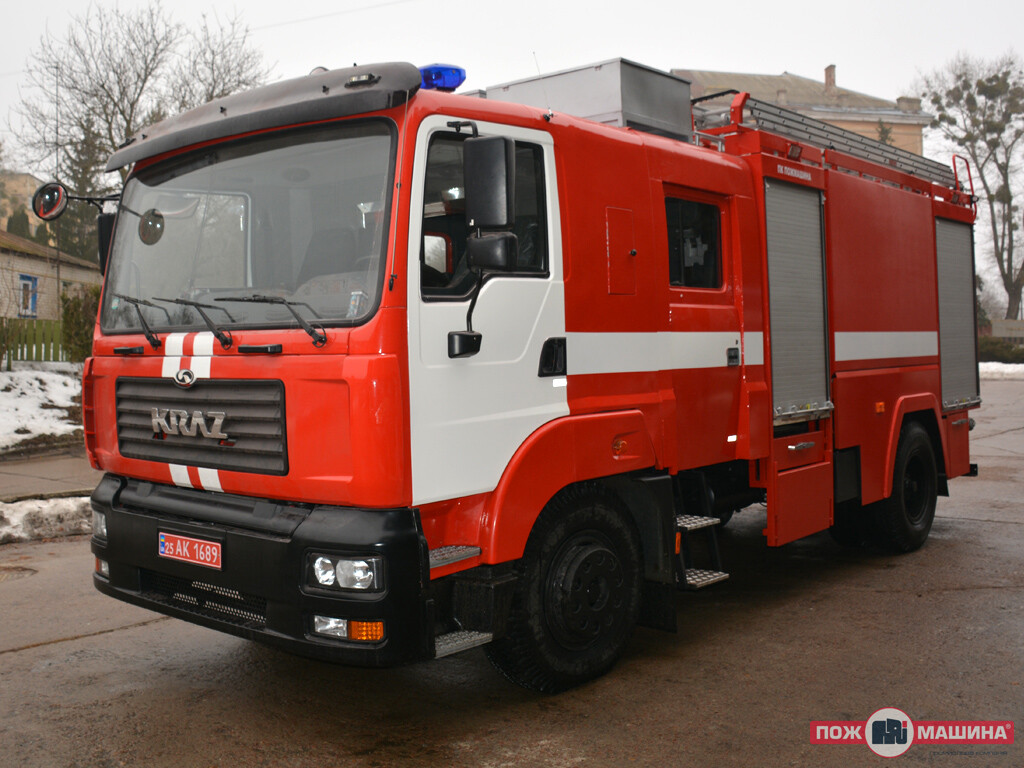

The fire truck FT-7-40 (5401N2)-155.01 is intended for delivery to the fire site of combat crew, fire extinguishing equipment, fire-technical equipment (PTV) and serves to extinguish fires with water and air-mechanical foam.

Specifications

Base chassis

КрАЗ-5401H2 / 4х2

Engine

diesel turbocharged

Power (max), kW (hp)

206 (280)

Speed (max), with full load, km / h

95

The number of places for combat crew, people

1 +6

Water supply, m3 (l)

6,5 (6500)

Frother, not less

0,5 (500)

Type of water filling system

Autonomous, semi-automatic with vane electrically driven pump

Length of pressure hoses, m

шт./м 20/400

Number of hand barrels

8

Pump

centrifugal НЦП – 40/100-Р-Р

Pump capacity, l/min (l/sec)

0,04 (40)

Pump head, m

100

nominal rotational speed, RPM

2700

Maximum geometric suction lift, m

7,5

Duration of filling the pump at the highest geometric suction height, s, not more

40

Overall dimensions (length: width: height), mm

7800:2500:3450

Mass of the car with full load, kg

17800
