АЦ-5,0-(43253)-236 – ПОЖМАШИНА

Description

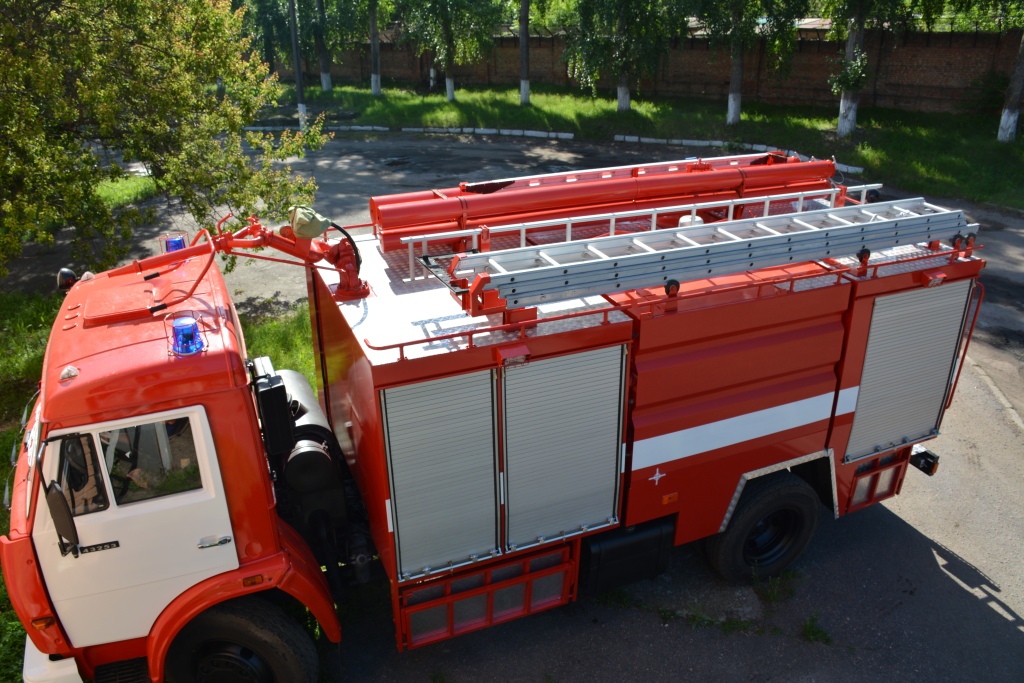

Fire-extinguishing tanker АЦ-5,0-40(43253)-236 is designed for delivering the fire-fighting crew and fire-extinguishing facilities to the iste of fire and serve for extinguishing fire by water or air-mechanical foam.

Specifications

Base chassis

КАМАЗ-43253

Wheel formula

4х2

Engine

diesel turbocharged

Power (max), kW (hp)

176 (240)

Speed (max), with full load, km / h

80

The number of places for combat crew, people

3

Type of water filling system

autonomous vacuum system

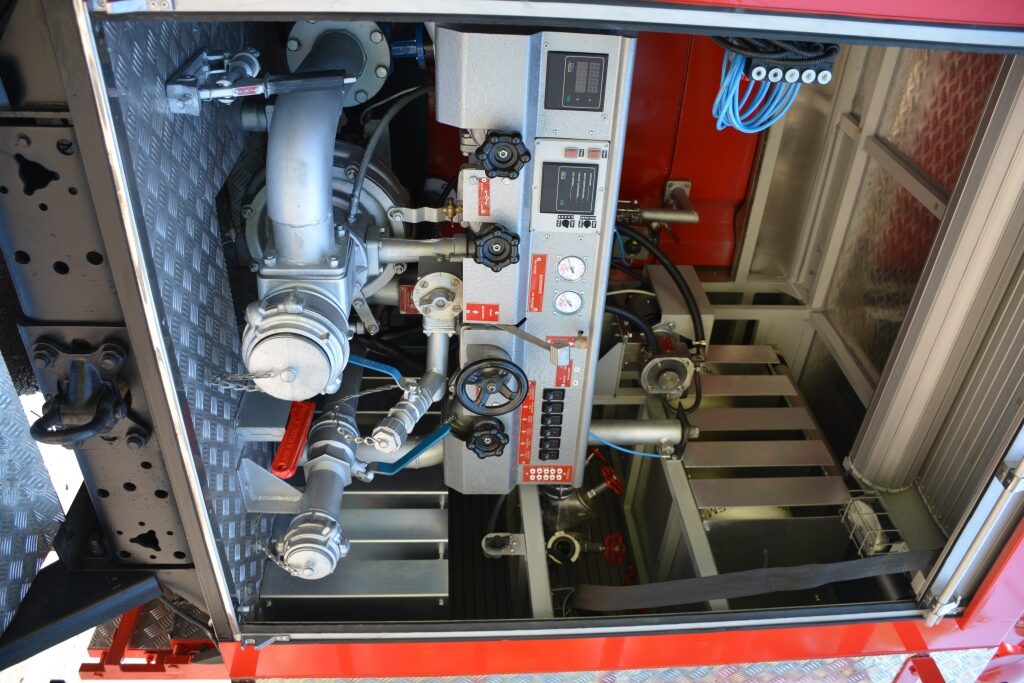

Pump

НЦП-40/100-Р-Р, centrifugal fireman, normal pressure

Pump feed, l / s

40

Pump head, m

100

Maximum geometric suction lift, m

7,5

Duration of filling the pump at the highest geometric suction height, s, not more

40

water, m

55

foam, m

35

Productivity, l / s, not less

20

Water, not less

5 (5000)

Frother, not less

0,4 (400)

Overall dimensions (length: width: height), mm

7700:2500:3450

Mass of the car with full load, kg

15500
