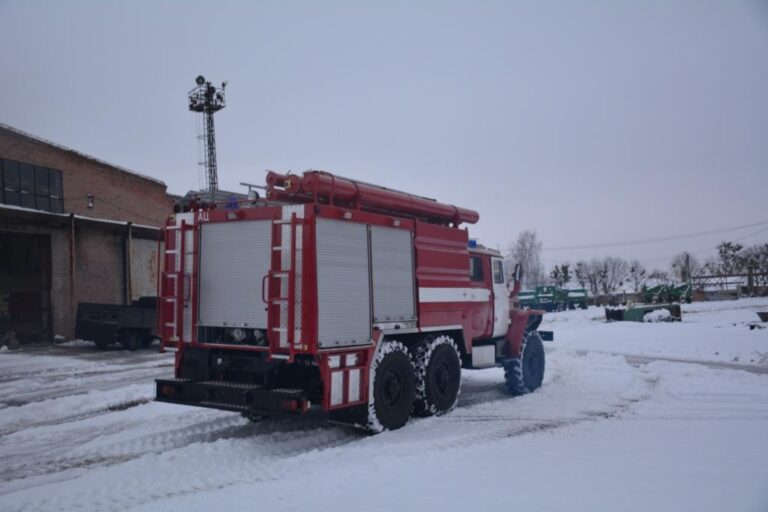

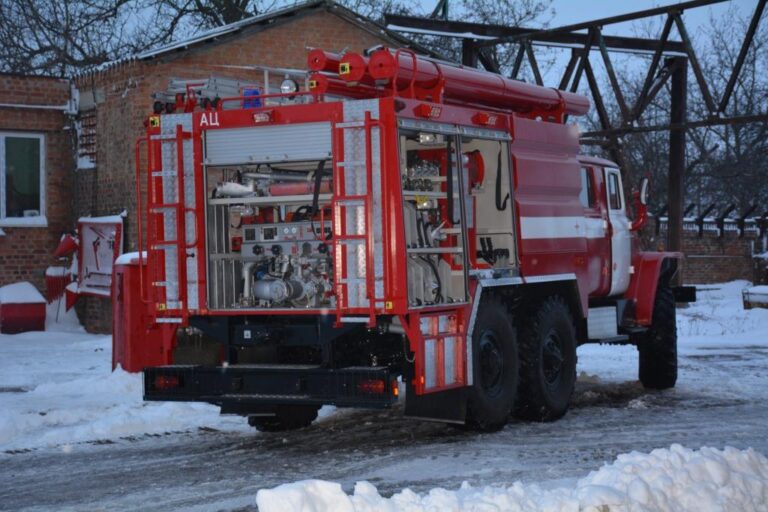

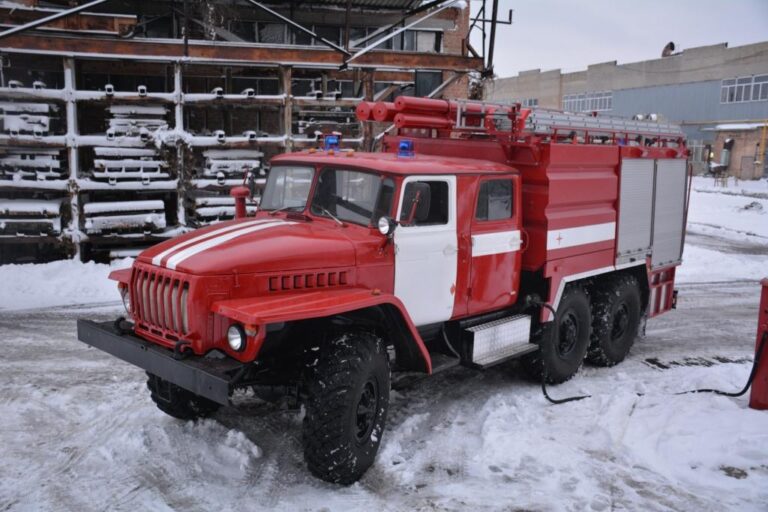

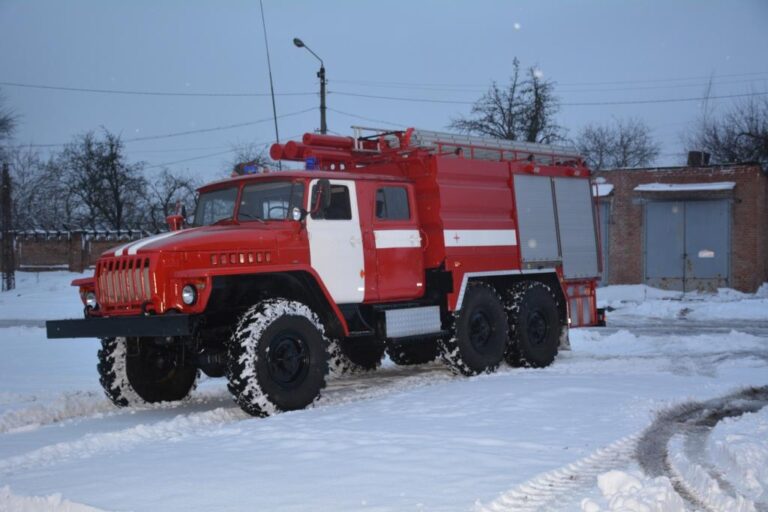

АЦ-4,5-40 (4320)-506

Description

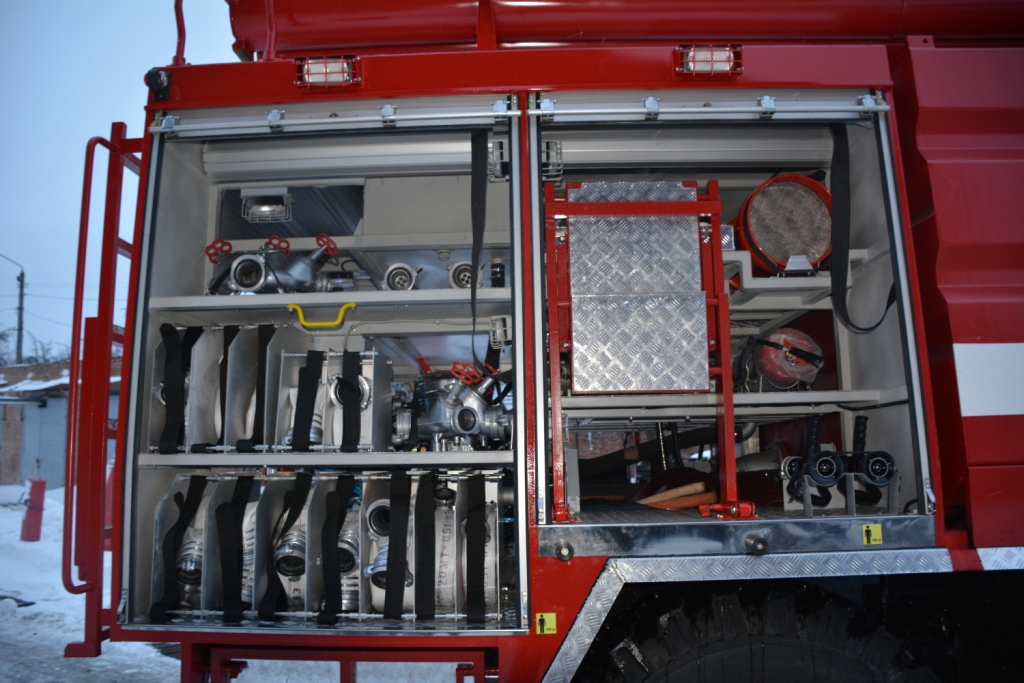

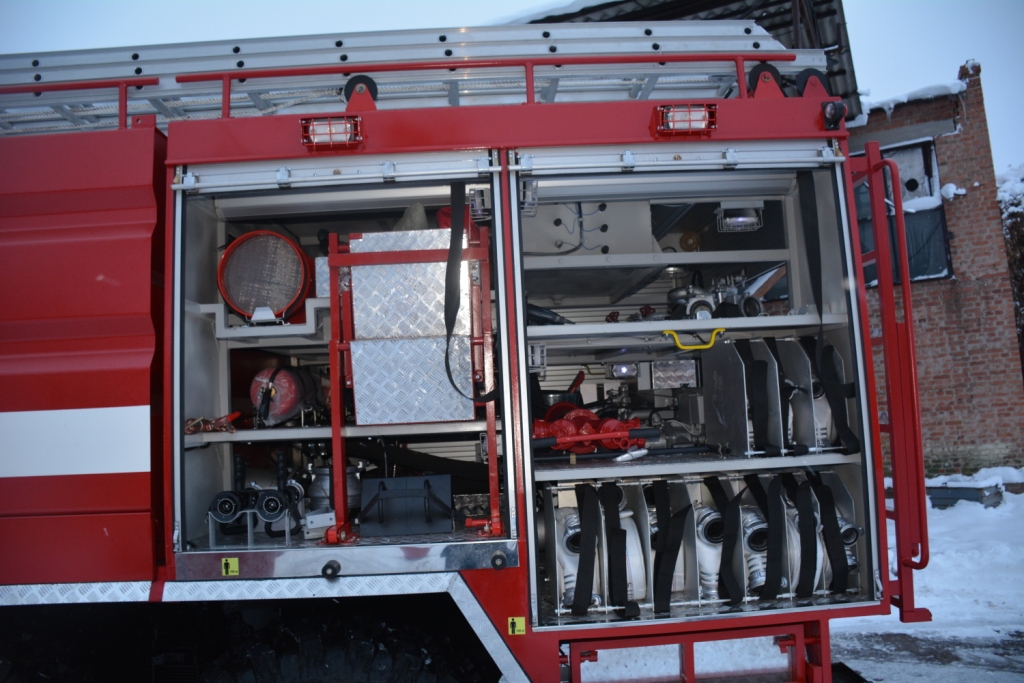

The fire -extinguishing tanker АЦ-4,5-40 (4320)-506 is intended for delivery the fire fighting crew, fire extinguishing equipment, fire-technical equipment (PTV) to the place of fire and serves to extinguish fires with water and air-mechanical foam.

Specifications

Base chassis

УРАЛ-4320/6×6

Engine

diesel

Power (max), kW (hp)

154 (210)

Speed (max), with full load, km / h

85

The number of places for combat crew, people

1 +6

Water supply, m3 (l)

4,5 (4500)

Frother, not less

0,15 (150)

Type of water filling system

stationary vacuum pump of sliding type with electric drive

Length of pressure hoses, m

408

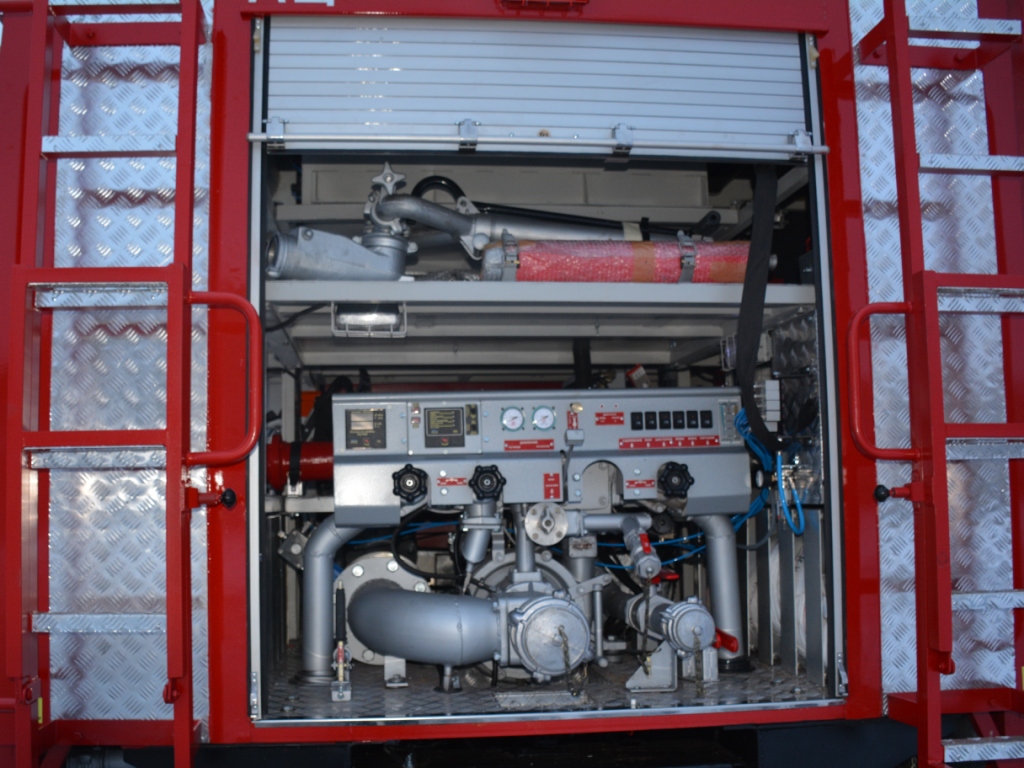

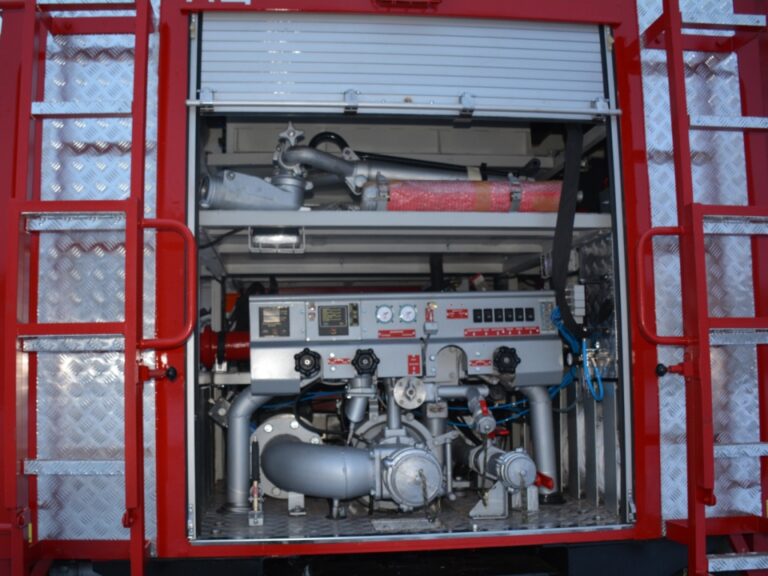

Pump

НЦП-40/100-Р-Р Fire centrifugal single-stage

Pump capacity, l/min (l/sec)

40

Pump head, m

100

Maximum geometric suction lift, m

7,5

Number of hand barrels

5

Overall dimensions (length: width: height), mm

10000:2550:3450

Mass of the car with full load, kg

15175
