АЦ - 40 (43253)- 247.02

Description

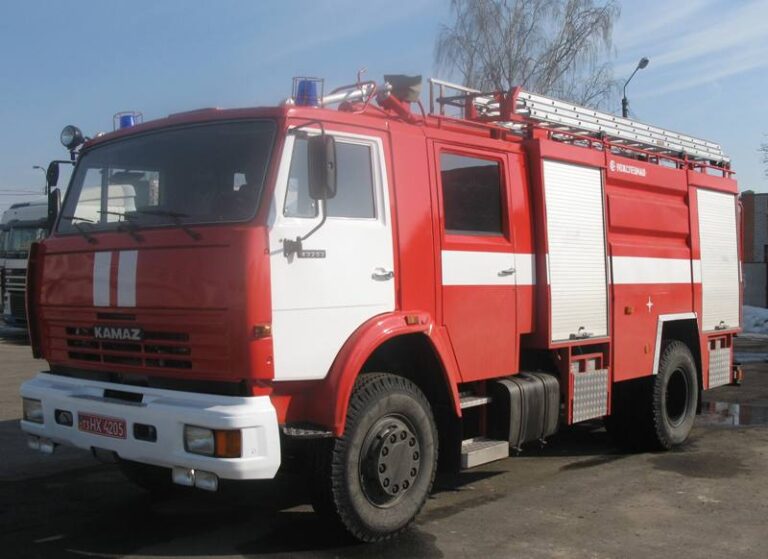

Fire-extinguishing tanker АЦ-40 (43253)-247.02 is intended for delivering the fire-prevention crew and facilities to place of the fire and serves for extinguishing the fire with water and air-mechanical foam. It is used as an independent combat unit at extinguishing the fire, liquidation damage and consequences of natural disasters.

Specifications

Base chassis

КАМАЗ 43253/4х2

Engine

diesel

Power (max), kW (hp)

176 (240)

Speed (max), with full load, km / h

80

The number of places for combat crew, people

1 +6

Water supply, m3 (l)

4,0 (4000)

Frother, not less

0,4 (400)

Type of water filling system

vacuum pump (slide type) with electric drive and manual control

Length of pressure hoses, m

348

Fire monitors

СЛК-П20

water, m

50

foam, m

35

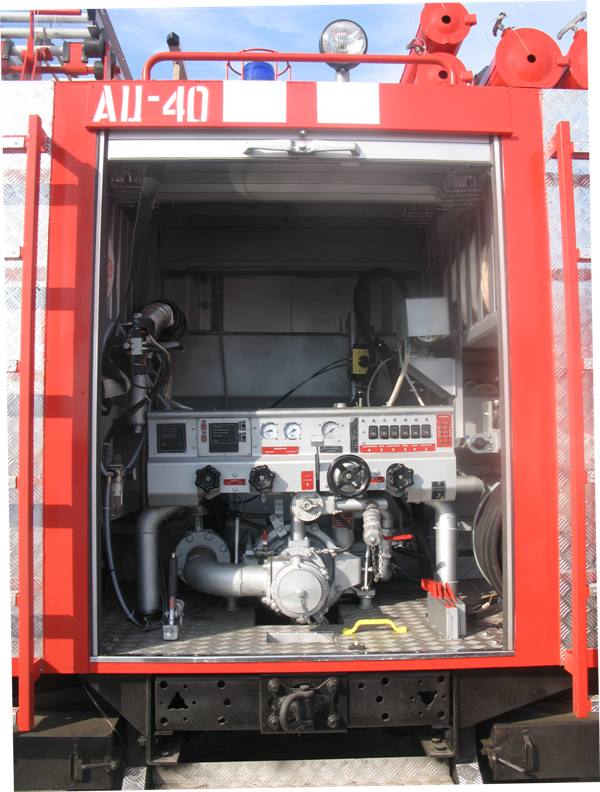

Pump

НЦП-40/100 Р-Р

Pump capacity, l/min (l/sec)

40

Pump head, m

100

Maximum geometric suction lift, m

7,5

Number of hand barrels

6

Overall dimensions (length: width: height), mm

7700:2500:3350

Mass of the car with full load, kg

14650
