FT-40 (43118)-235.05

Description

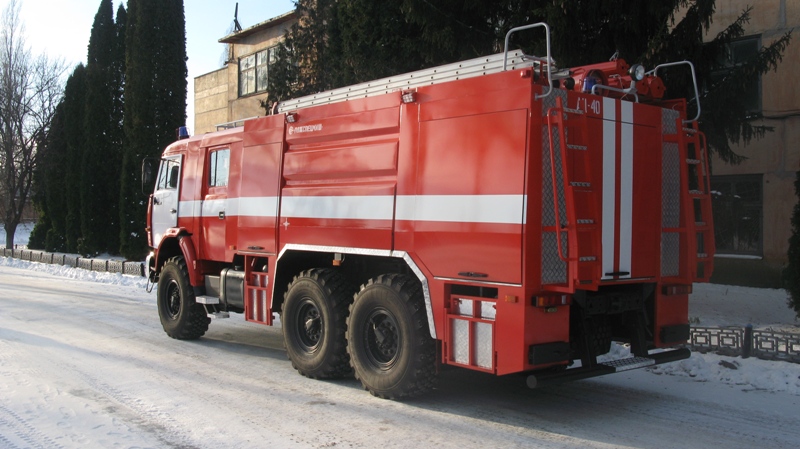

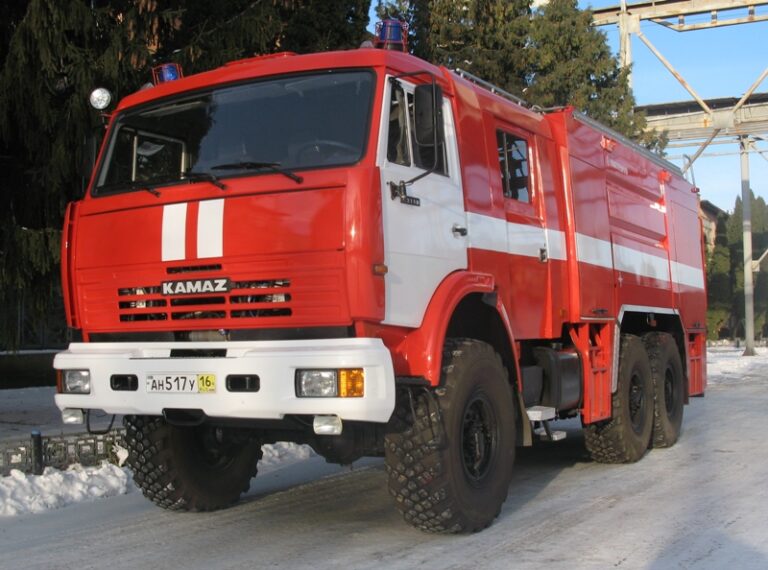

The fire truck FT-40 (43118)-235.05 is designed for delivering the fire-fighting crew, fire-extinguishing facilities, fire-technical and emergency rescue equipment to the place of fire in the conditions of lack of roads, extinguishing of fires by water from the tank, open basin or other reservoir through : monitor or hand barrels, extinguishing of fires by air-mechanical foam using foam agent from foam tank or other reservoir through : monitor and (or) hand foam generator, emergency-rescue operation. The vehicle is designed for exploitation in districts with a mild temperature climate (design Y, УХЛ) at the temperature of surrounding air from 238K to 313K (from - 35 C to +40 С), 1st category of placing for State standard 15150-69.

Specifications

Base chassis

КАМАЗ-43118

Chassis type

all-wheel drive

Wheel formula

6х6

Type of wheels and tires

disc, single-ply type of tires pneumatic, with pressure regulation

Tire size

425/85 R21 (1260х425-533Р)

Centre pumping of tires

there is

Spare wheel

there is

Engine

740.31-240 or equivalent

Environmental standard

not below Euro-2

Power (max), kW (hp)

176 (240)

working volume, l, not less

10,85

transmission

КП152 or КП154

number of gears (forward + backward)

5+1, 2-range

Transfer case

65111

Differential

blockable, interaxal

Number of steps

2

Clutch

one or two-disk, with PGU

Brake system

brake mechanisms of drum type with pneumatic drive and ABS

Steering gear

mechanical, with hydraulic booster

Maximum lift,%

31

Speed (max), with full load, km / h

90

Fuel tank capacity, l, not less

210

Turning radius, overall, m

11,5

Towing device

rear

System voltage, V

24

batteries, pc. х В/А·ч

2 х 12/190

Generator, V / W

28/2000

Mass of the car with full load, kg

20400

to the front

5400

on the back

15000

Overall dimensions (length: width: height), mm

9300:2500:3680

Water supply, m3 (l)

6,0 (6000)

Frother, not less

0,5 (500)

Pump

НЦП-40/100-Р-Р back arrangement

Pump capacity, l/min (l/sec)

2400 (40)

nominal pressure, MPa (kgf / cm2)

1,0 (10)

Maximum geometric suction lift, m

7,5

Duration of filling the pump at the highest geometric suction height, s, not more

40

Frother Dispenser

water jet ejector

main

autonomous, vacuum pump, slide type, electrically driven

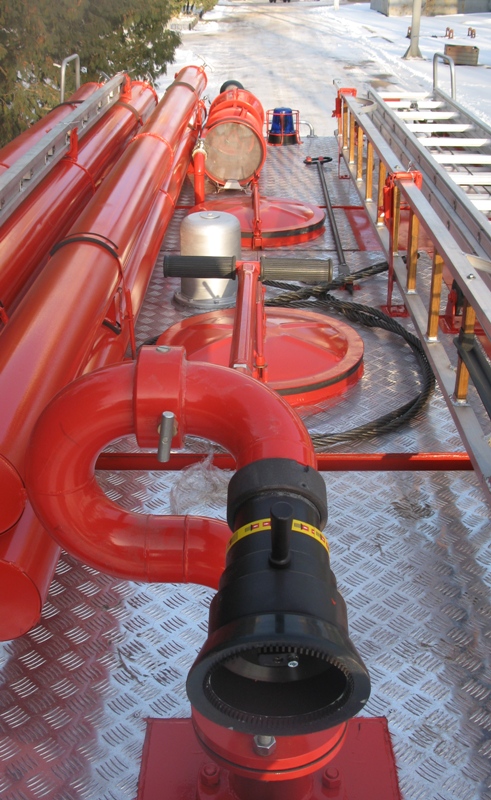

Fire monitors

ЛС-С40У

working pressure, MPa (kgf / cm2)

0,6÷0,8 (6÷8)

nominal flow rate, l / s

2400 (40)

Water jet delivery range, m

60

Range of supply of a foamy direct stream, m

40

Controlling the fire monitors

manual from the roof of the body on the roof of the front body

The composition of the jet

water / foam

jet feeding types

solid / sprayed, with a screen angle of up to 90 °

Cabin quick calculation

cabover, salon, located above the engine

The number of places for combat crew, people

3+4

number of doors, pcs

4
