АЦ - 40 (43114) - 176 – ПОЖМАШИНА

АЦ - 40 (43114) - 176

Description

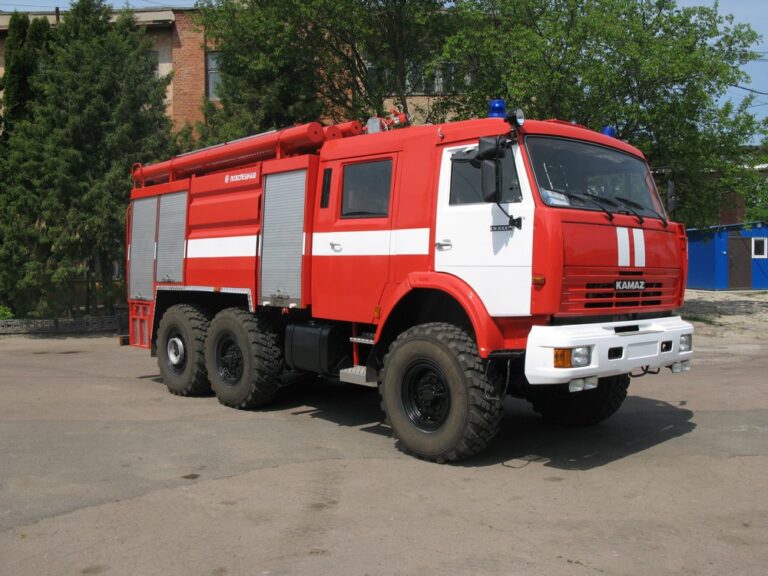

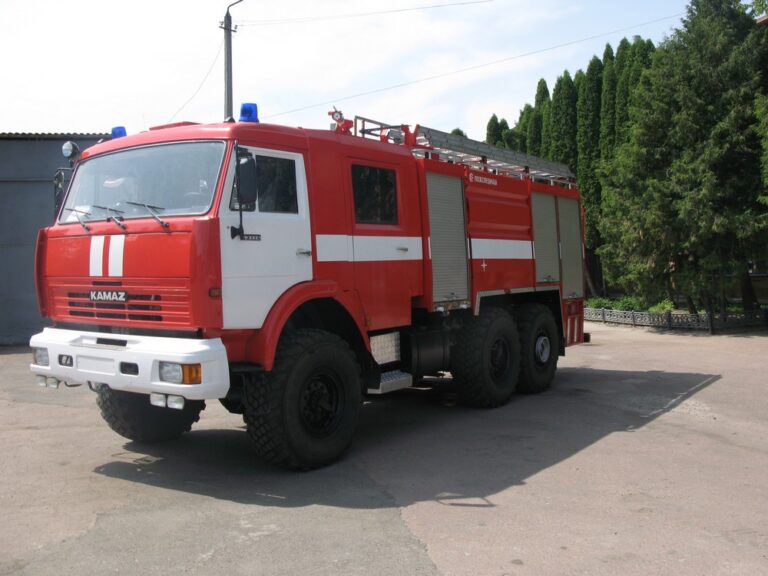

Fire-extinguishing tanker AЦ-40 (43114) -176 is intended for delivering the fire-fighting crew and fire-fighting facilities to the place of fire and serves for suppression of fire by water or air-mechanical foam.

Specifications

Base chassis

КАМАЗ-43114

Wheel formula

6х6.1

Power (max), kW (hp)

176 (240)

Speed (max), with full load, km / h

90

The number of places for combat crew, people

1 +6

Duration of filling the pump at the highest geometric suction height, s, not more

40

Pump

П 40/100 p-р

Pump capacity, l/min (l/sec)

40

Pump head, m

100

Water supply, m3 (l)

5 (5000)

Frother, not less

0,3 (300)

Fire monitors

stationary

water, m

50

foam, m

35

Length of pressure hoses, m

428

Maximum geometric suction lift, m

7,5

Overall dimensions (length: width: height), mm

8150:2500:3400

Mass of the car with full load, kg

15420
