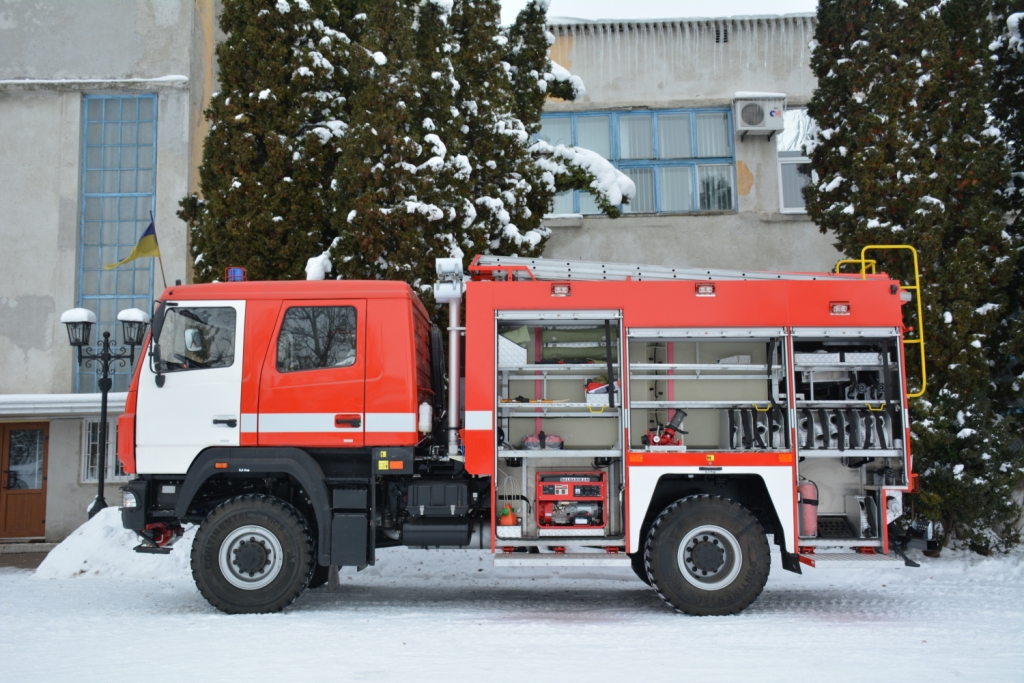

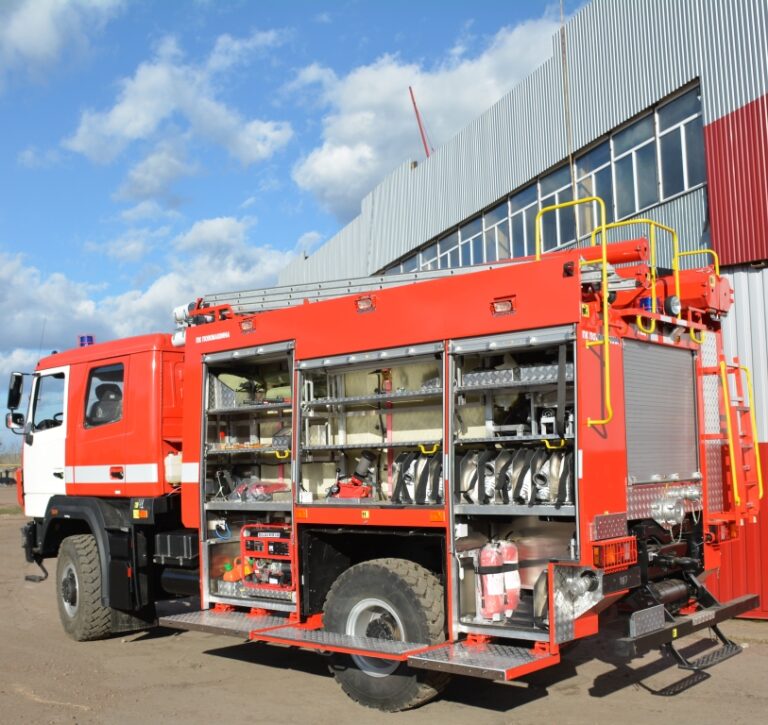

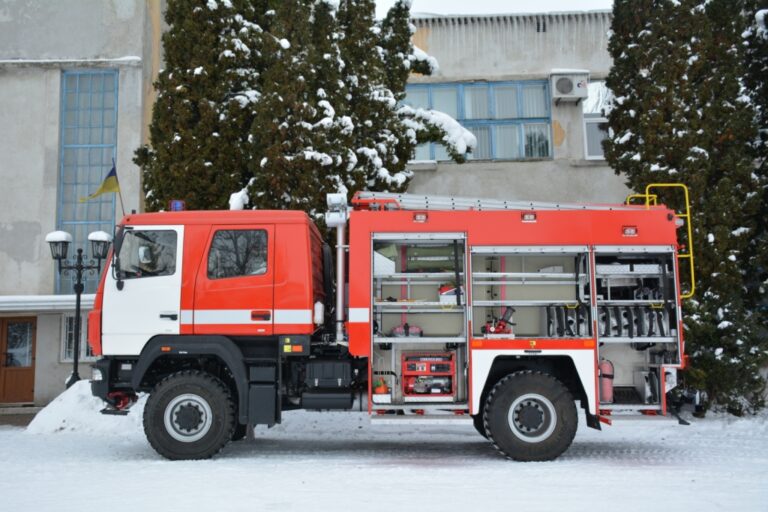

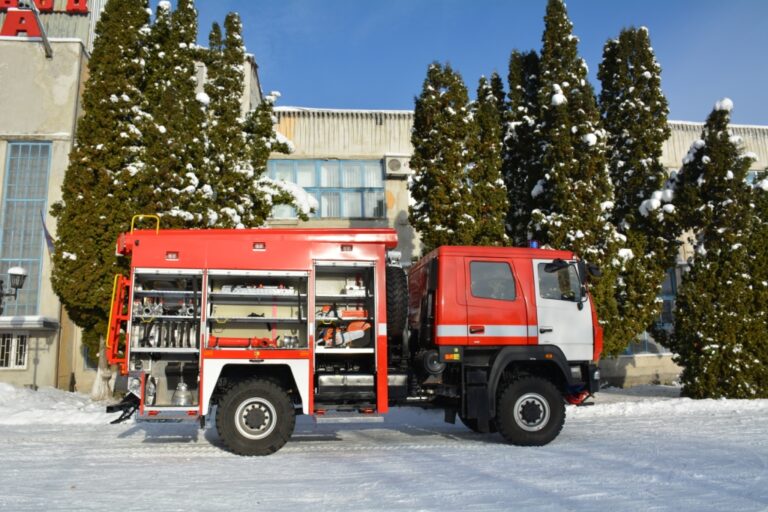

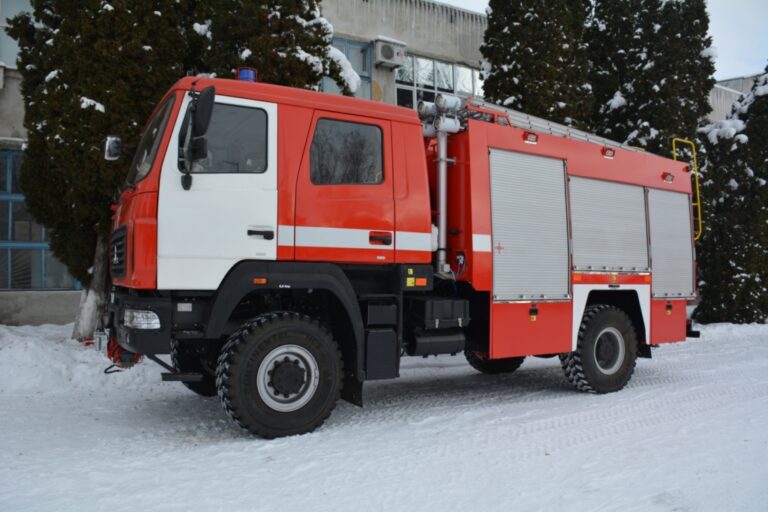

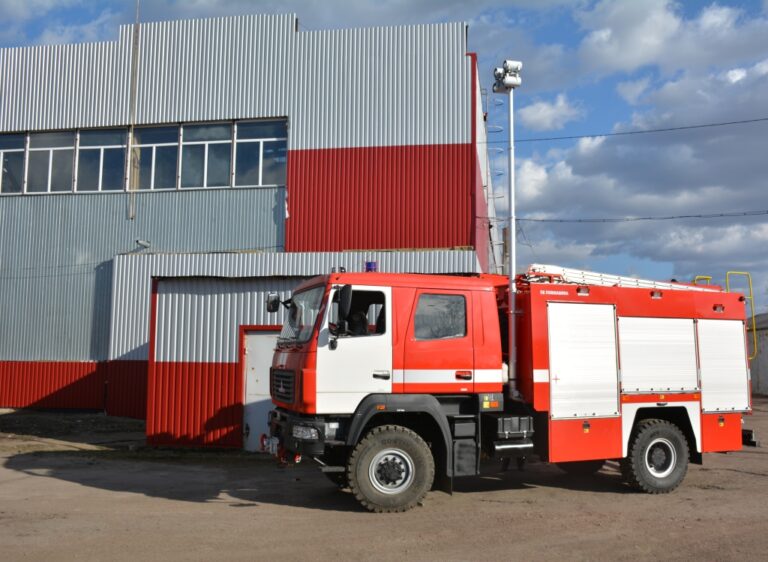

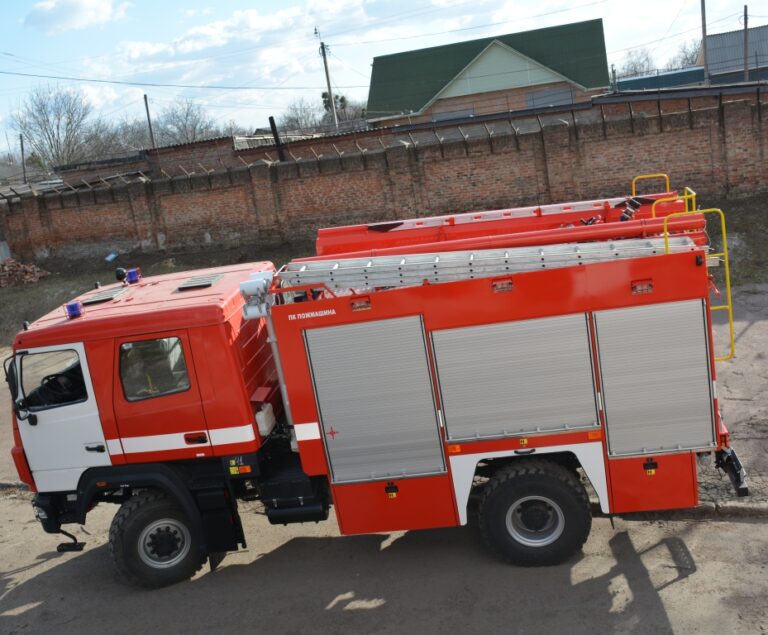

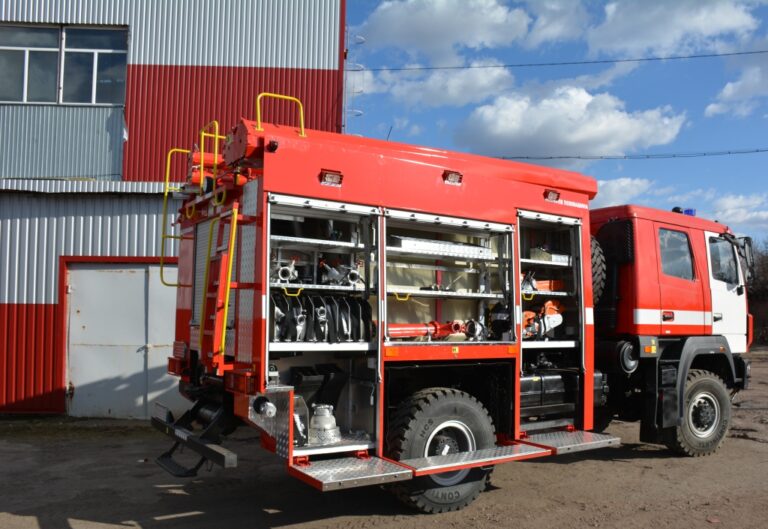

FT-4-60 (5309)-505М

Description

The fire truck FT-4-60 (5309)-505 М is intended for delivery the fire fighting crew, fire extinguishing equipment, fire-technical equipment (PTV) to the place of fire and serves to extinguish fires with water and air-mechanical foam.

Specifications

Base chassis

МАЗ-53095 / 4х4.1

Engine

diesel

Power (max), kW (hp)

243 (330)

Speed (max), with full load, km / h

85

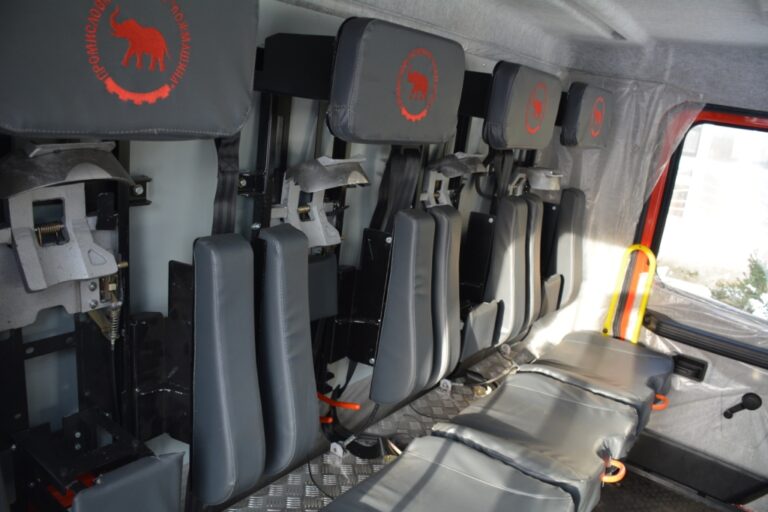

The number of places for combat crew, people

1 +6

Water supply, m3 (l)

4 (4000)

Frother, not less

0,4 (400)

Type of water filling system

Autonomous, semi-automatic with vane electrically driven pump

Length of pressure hoses, m

20/400

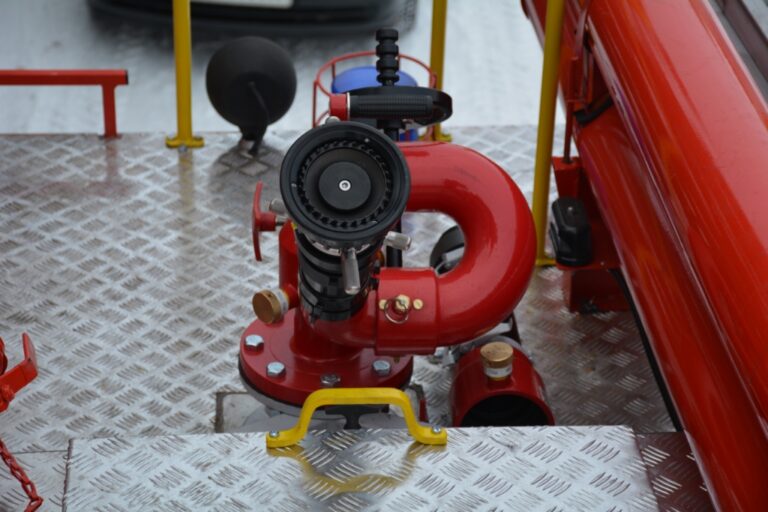

Fire monitors

Manually operated stationary trunk Protek Style 622

Number of hand barrels

5

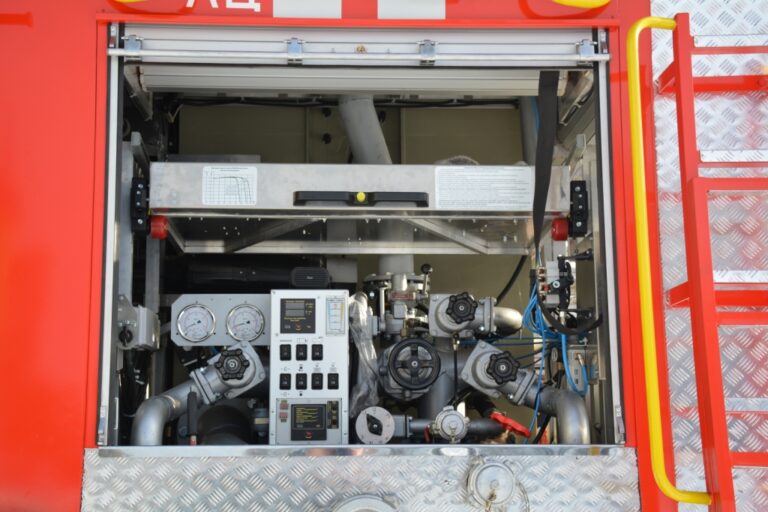

Pump

centrifugal PN-60B-R-R

Pump capacity, l/min (l/sec)

0,06(60)

Pump head, m

100

nominal rotational speed, RPM

2700

Maximum geometric suction lift, m

7,5

Duration of filling the pump at the highest geometric suction height, s, not more

60

Overall dimensions (length: width: height), mm

8500: 2550: 3640

Mass of the car with full load, kg

19000
