AC-3,2-40 (TGM 15.250)-163M

Description

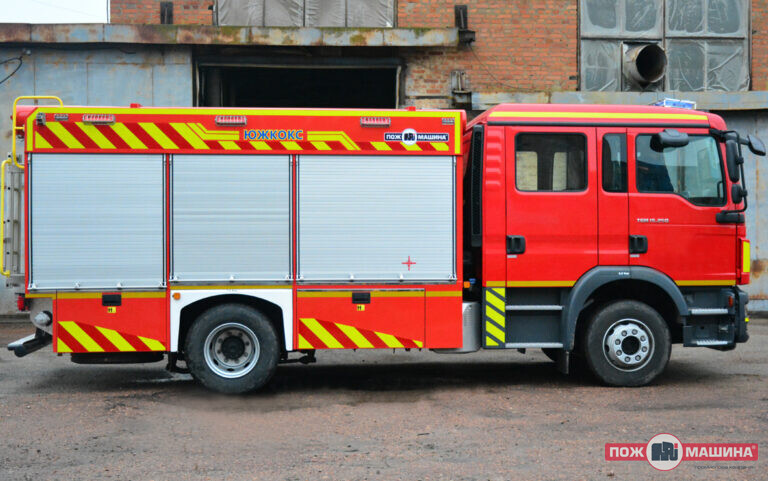

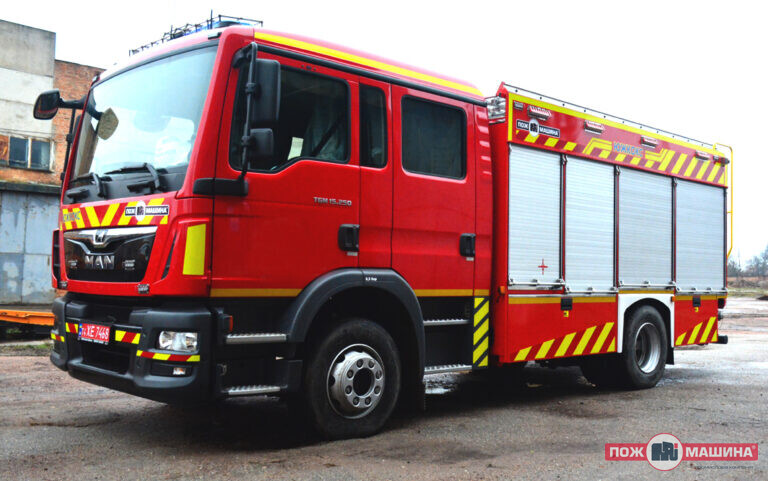

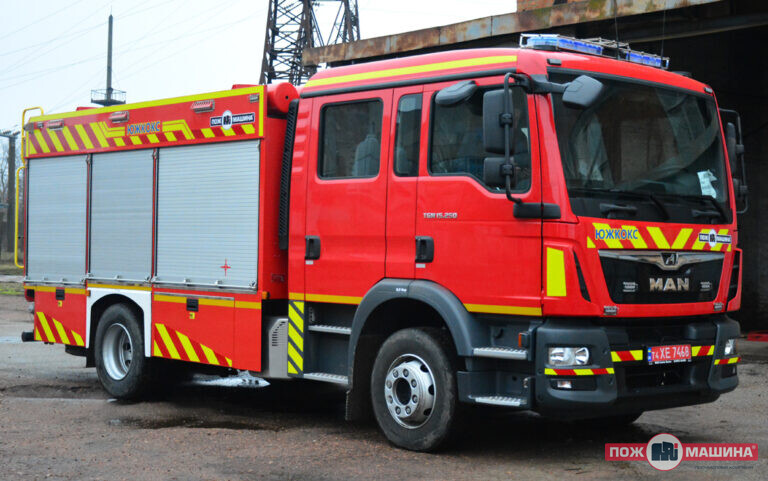

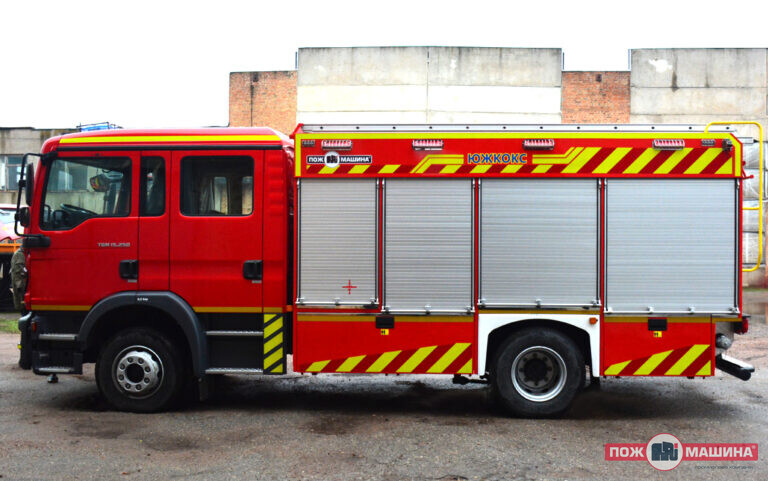

Tank fire AC-3,2-40 (TGM 15.250) -163M is intended for delivery to the place of fire of combat calculation, fire extinguishing means, fire-technical armament (PTO) and serves for fire extinguishing by water and air-mechanical foam in the conditions of cities, settlements, facilities with a developed water supply network.

Specifications

Dimensions 7,500 x 2,600 x 2,950 cm
Curb weight, kg, not more

9200

Gross vehicle weight, kg

13500

Base chassis

MAN TGM 15.250 4х2 BL

Maximum engine power, kWt (h.p.)

184 (250)

Speed (max), with full load, km / h

100

The number of places for combat crew, people

3+4

Water supply, m3 (l)

3,2 (3200)

Type of water filling system

Autonomous, semi-automatic with vane electrically driven pump

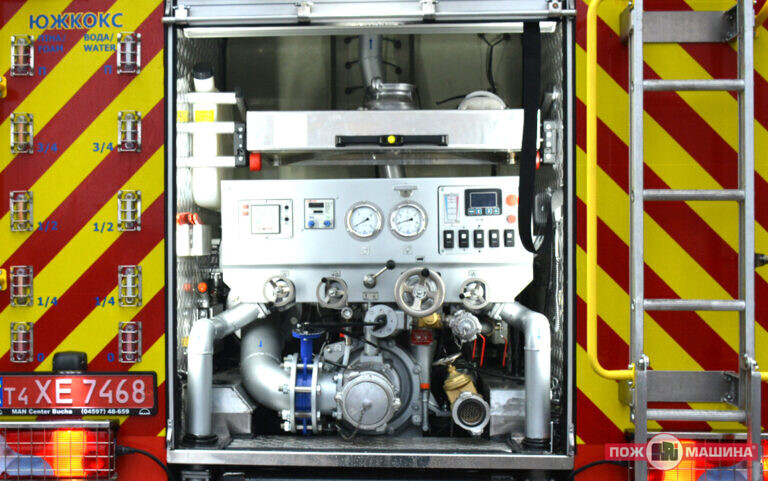

Pump capacity, l/min (l/sec)

2400 (40)

Pump head, m

100

Maximum geometric suction lift, m

7,5

Duration of filling the pump at the highest geometric suction height, s, not more

40

Additional Information

A new fire and rescue vehicle created specifically for the conditions of a big city.

It has quite modest parameters for this type of equipment and due to a sufficient supply of extinguishing agents, maneuverability, ease of operation, the availability of additional options such as a lighting mast, as well as the optimal set of  fire-fighting equipment and rescue equipment, is an ideal car for narrow city streets.

The tanker is designed and equipped in such a way as to ensure a quick arrival at the scene of an emergency and to start the fire.

Equipped with a lighting mast that illuminates the space around the AC with four LED floodlights

The mast installed inside the fire superstructure has a Tilt & Turn system (remote electric drive mechanism for tilting and turning the spotlights) and a multifunctional remote control. Power is supplied from the onboard power supply.

Lifting height – 6 m above ground level.

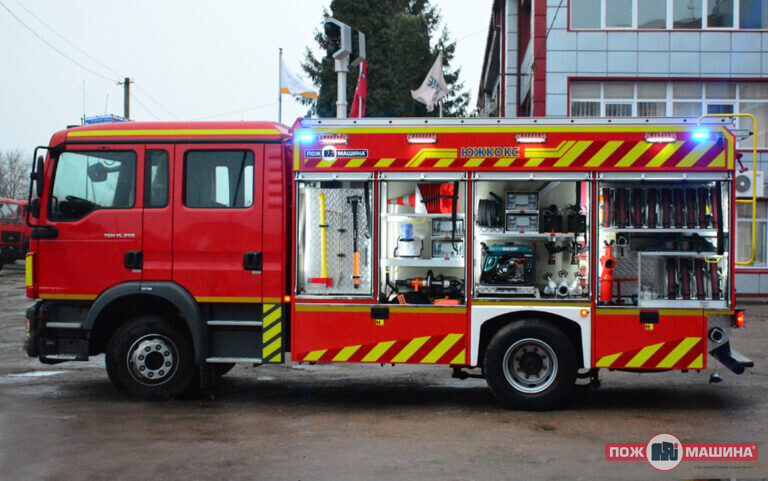

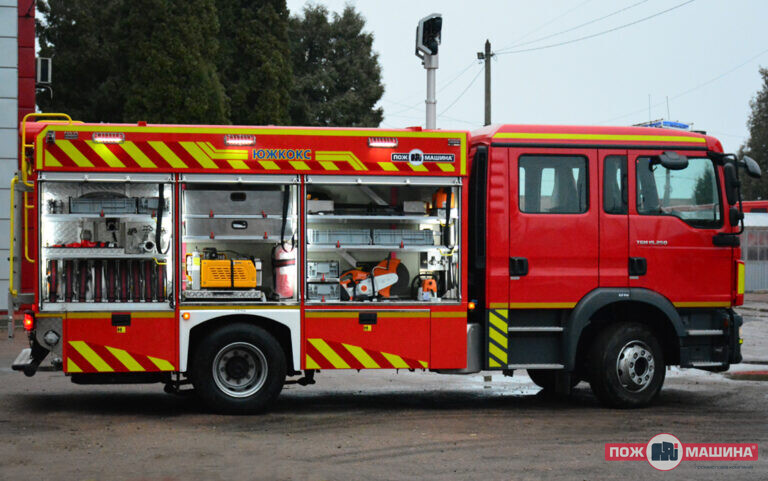

The tank truck is equipped with the necessary fire-fighting equipment and rescue equipment, including:

  • Stihl petrol tool;
  • Holmatro hydraulic rescue tool set with combined pump station;
  • assault ax-hammer Paratech
  • Paratech Hooligan Tool;
  • Fiskars sledgehammer;
  • hacksaw and Stanley scissors for opening metal lattices.

The car is quite low and for a person of average height most of the equipment is available to reach from the ground, without the use of working platforms-footrests.
