TF-18 (LPT 613)-411

Description

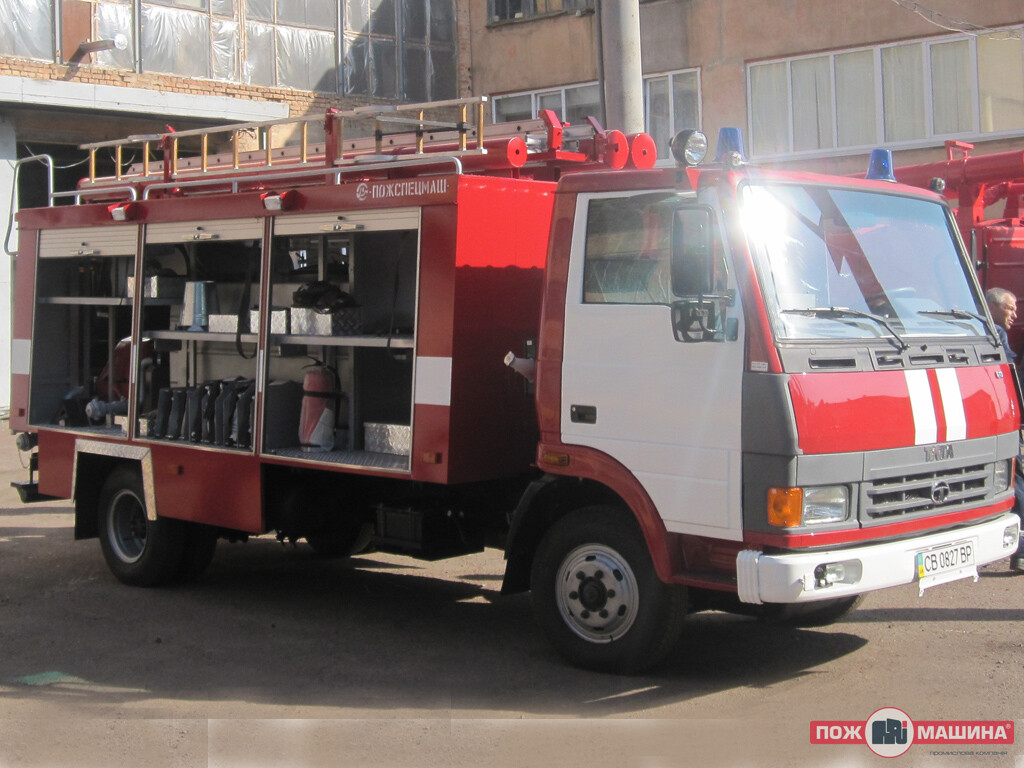

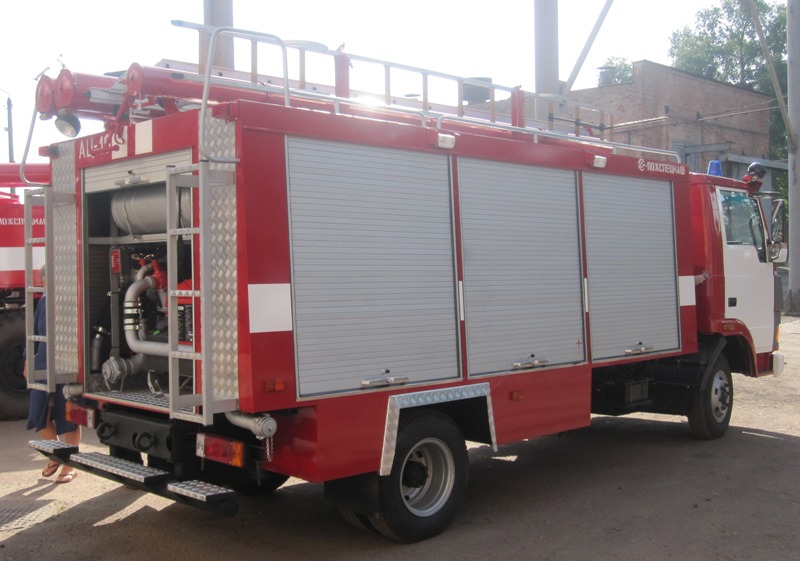

Fire-extinguishing tanker АЦ-18 (LPT 613)-411 is designed for delivering the fire-fighting crew and fire-extinguishing facilities to the site of fire and serves for saving people and extinguishing the fire by means of water from tank or open basin through manual barrels as well by air-mechanical foam through manual foam generator . It also serves for rescue operation.

Specifications

Base chassis

Tata LPT 613 (4х2)

Engine

diesel, L6

Power (max), kW (hp)

95,6 (130)

Speed (max), with full load, km / h

100

Cabin quick calculation

Cabover located above the engine, number of seats 2 or 3, bed there

Water supply, m3 (l)

2,0 (2000)

Frother, not less

0,2 (200)

Type of water filling system

built into the motor pump, Vacuum suction system Autonomous, semi-automatic, with a sliding electric drive pump

nominal feed, l / min (l / s), not less

1200 (20)

nominal pressure, MPa (kgf / cm2)

0,1 (10)

Maximum geometric suction lift, m

7,5

time of water intake from the highest suction height, s

40

Foaming agent dosing system:

TFT 95 GPM

flow rate, l / min (l / s)

360 (6)

Frother dispenser,%

1/4÷6

Overall dimensions (length: width: height), mm

6800:2500:900

Gross vehicle weight, kg

6500
