АЦ-40(4308)-271.01 – ПОЖМАШИНА

Description

Fire-extinguishing tanker АЦ-40 (4308)-271.01 is intended for delivering the fire-prevention crew and facilities to place of the fire and serves for extinguishing the fire with water and air-mechanical foam. It is used as an independent combat unit at extinguishing the fire, liquidation damage and consequences of natural disasters.

Specifications

Base chassis

КАМАЗ-4308 / 4х2

Engine

diesel

Power (max), kW (hp)

131 (178)

Speed (max), with full load, km / h

100

The number of places for combat crew, people

1 +6

Water, not less

2,5 (2500)

Frother, not less

0,17 (170)

Type of water filling system

вакуумна з електроприводом і автоматичним відключенням після заповнення

Length of pressure hoses, m

388

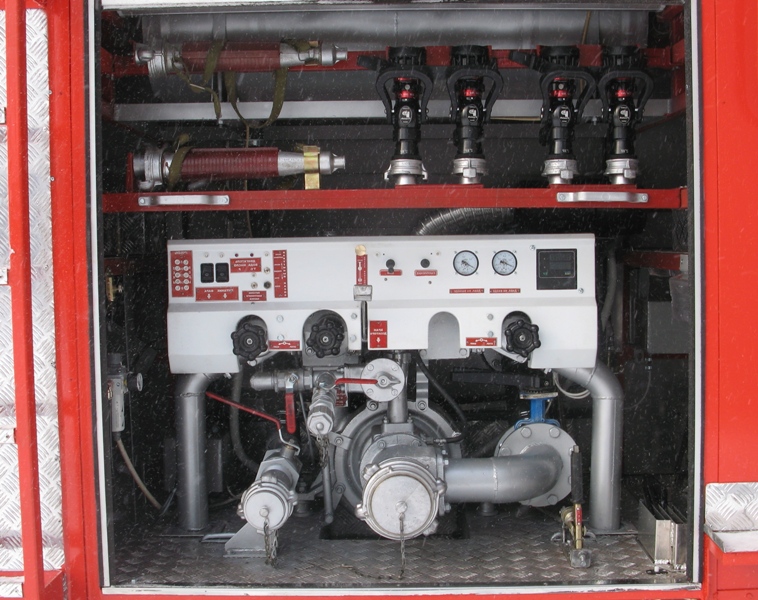

Pump

centrifugal НЦП-40/100-Р-Р

Pump feed, l / s

40

Pump head, m

100

Maximum geometric suction lift, m

7,5

Number of hand barrels

4

Overall dimensions (length: width: height), mm

7700 : 2500 : 2900

Mass of the car with full load, kg

10900
