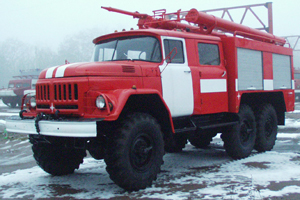

АЦ - 40 (5313) – 137А.03

Fire-Fighting Tanker АЦ-40(4334) model 137А.02 is intended for delivering the fire-fighting crew, fire-fighting agents and equipment to the site of fire and serves for extinguishing the fire with water and air-mechanical foam.

Specifications

Base chassis

ЗИЛ-5313/6×6 (or equivalent)

Engine

diesel

Power (max), kW (hp)

110(150)

Speed (max), with full load, km / h

80

The number of places for combat crew, people

1 +6

Water supply, m3 (l)

2,73 (2730)

Frother, not less

0,17 (170)

Type of water filling system

a vacuum jet pump

Length of pressure hoses, m

408

Fire monitors

СЛК-П20

water, m

50

foam, m

35

Pump

single-stage centrifugal НЦП-40/100-Р-Р

Pump capacity, l/min (l/sec)

40

Pump head, m

100

Number of hand barrels

6

Overall dimensions (length: width: height), mm

7640:2500:3300

Mass of the car with full load, kg

10200
